illuminated push button, Harmony XB4, red, 22mm, spring return, 1NO+1NC, 220...240 V

ILLUMINATED PUSH BUTTON, HARMO

SQDXB4BW3445 XB4BW3445 3389110887389
234.39 / EA
http://schema.org/OutOfStock
Mayer-DDS-illuminated push button, Harmony XB4, red, 22mm, spring return, 1NO+1NC, 220...240 V-1
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: Czechia
  • Depth: 3.98 in
  • Head Type: Standard
  • Height: 1.85 in
  • Light Source: Incandescent
  • Warranty Length: 18 mth
  • Width: 1.18 in

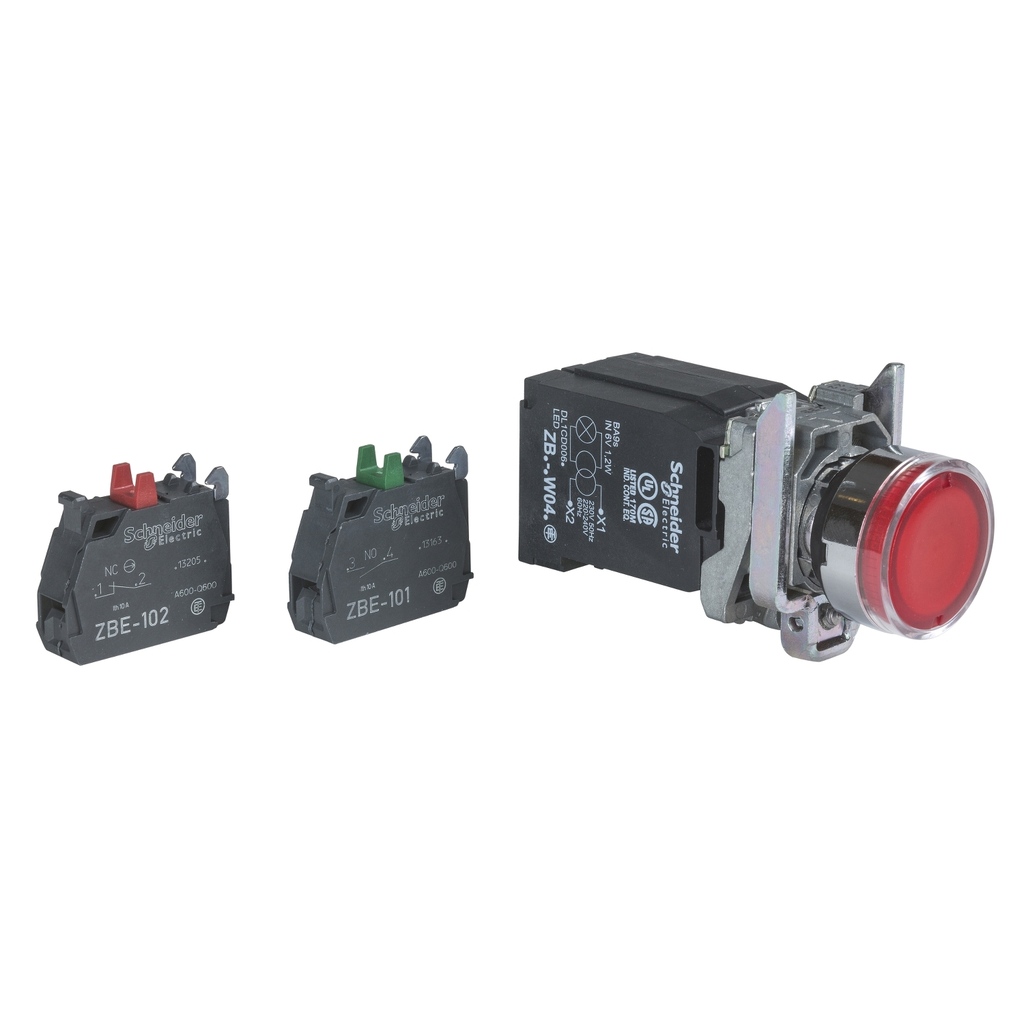

This Harmony XB4 plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 220V to 240V AC, uses an integral transformer with Integral LED. It has a metal bezel. This illuminated push button with i
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XB4 plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 220V to 240V AC, uses an integral transformer with Integral LED. It has a metal bezel. This illuminated push button with i
  • Connections Terminals
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
  • Light Block Supply
    • via integral transformer 1.2 VA 6 V
  • Uimp Rated Impulse Withstand Voltage
    • 6 kV IEC 60947-1
  • Shape Of Screw Head
    • cross Philips no 1
    • cross pozidriv No 1
    • slotted flat Ø 4 mm
    • slotted flat Ø 5.5 mm
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0257280702
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.3 kg CO2 eq.
    • 0.291547271
  • Standards
    • IEC 60947-1
    • JIS C8201-5-1
    • UL 508
    • IEC 60947-5-5
    • IEC 60947-5-4
    • CSA C22.2 No 14
    • IEC 60947-5-1
    • JIS C8201-1
  • Ui Rated Insulation Voltage
    • 600 V 3)IEC 60947-1
  • Ip Degree Of Protection
    • IP66 IEC 60529
    • IP67
    • IP69
    • IP69K
  • Terminals Description Iso N 1
    • (13-14)NO
    • (21-22)NC
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 1 kg CO2 eq.
    • 1.3170540936
  • Electrical Shock Protection Class
    • class I conforming to IEC 60536
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Electrical Durability
    • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 2 A 230 V 36
  • Operating Force
    • 3.5 N NC changing electrical state
    • 3.8 N
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Positive Opening
    • with IEC 60947-5-1 appendix K
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 2 kg CO2 eq.
    • 1.6651663006
  • Us Rated Supply Voltage
    • 220...240 V AC 50/60 Hz
  • Customizable
    • no
    • 0
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0279931774
    • 0 kg CO2 eq.
  • Tightening Torque
    • 0.8-1.2 N.m IEC 60947-1
  • Ith Conventional Free Air Thermal Current
    • 10 A IEC 60947-5-1
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Short Circuit Protection
    • 10 A cartridge fuse gG IEC 60947-5-1
  • Ie Rated Operational Current
    • 3 A 240 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947-5-1
    • 6 A 120 V, AC-15, A600 IEC 60947
  • Operating Travel
    • 1.5 mm NC changing electrical state)
    • 2.6 mm NO changing electrical state)
    • 4.3 mm total travel)
  • Operator Profile
    • red flush
  • Electrical Reliability
    • λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
    • λ < 10exp(-6) 5 V 1 mA
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Product Certifications
    • CSA
    • LROS (Lloyds register of shipping)
    • BV
    • UL Listed
    • DNV
  • Physical Attributes
    • Cap Operator Or Lens Color : red
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-31
    • ETIM 10 : EC001028
    • Manufacturing Carbon Footprint : 1.3170540936
    • Distribution Carbon Footprint : 0.0279931774
    • Installation Carbon Footprint : 0.0257280702
    • Use Carbon Footprint : 1.6651663006
    • End Of Life Carbon Footprint : 0.291547271
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1808008EN
    • Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : chromium plated metal
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : red
    • Compatibility Code : XB4
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • Contacts Type And Composition : 1 NO + 1 NC
    • Contacts Usage : standard contacts
    • Device Short Name : XB4
    • Fixing Collar Material : zamak
    • Head Type : standard
    • Light Source : incandescent
    • Mechanical Durability : 10000000 cycles
    • Mounting Diameter : 22.5 mm
    • Operator Additional Information : with plain lens
    • Package Weight Lbs : 176.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : illuminated push-button
    • Product Repair Index : A
    • Protective Treatment : TH
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Signalling Type : steady
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 3.3274889126
    • Relationshiptype : Assembly relationship
    • Accessories : ZBYLEG503001
    • Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
    • Input #2 Product Repairability Index : A
  • General Attributes
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony XB4
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=670004&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 3.3274889126
    • Ambient Air Temperature For Operation : -40-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI1808008EN
    • Environmental Disclosure : ENVPEP1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
    • Height : 1.85 in
    • Width : 1.18 in
    • Depth : 3.98 in
  • Overview Attributes
    • Device Presentation : complete product
