Harmony XB5, Illuminated double-headed push button head, plastic, Ø22, 1 green flush I + 1 pilot light + 1 red projecting O

Harmony XB5, Illuminated double-headed push button head, plastic, Ø22, 1 green flush I + 1 pilot light + 1 red projecting O

SQDZB5AW7L3741 ZB5AW7L3741 785901910091
46.93 / EACH
  • Bezel Material: Dark Grey Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Net Weight: 0.023 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth

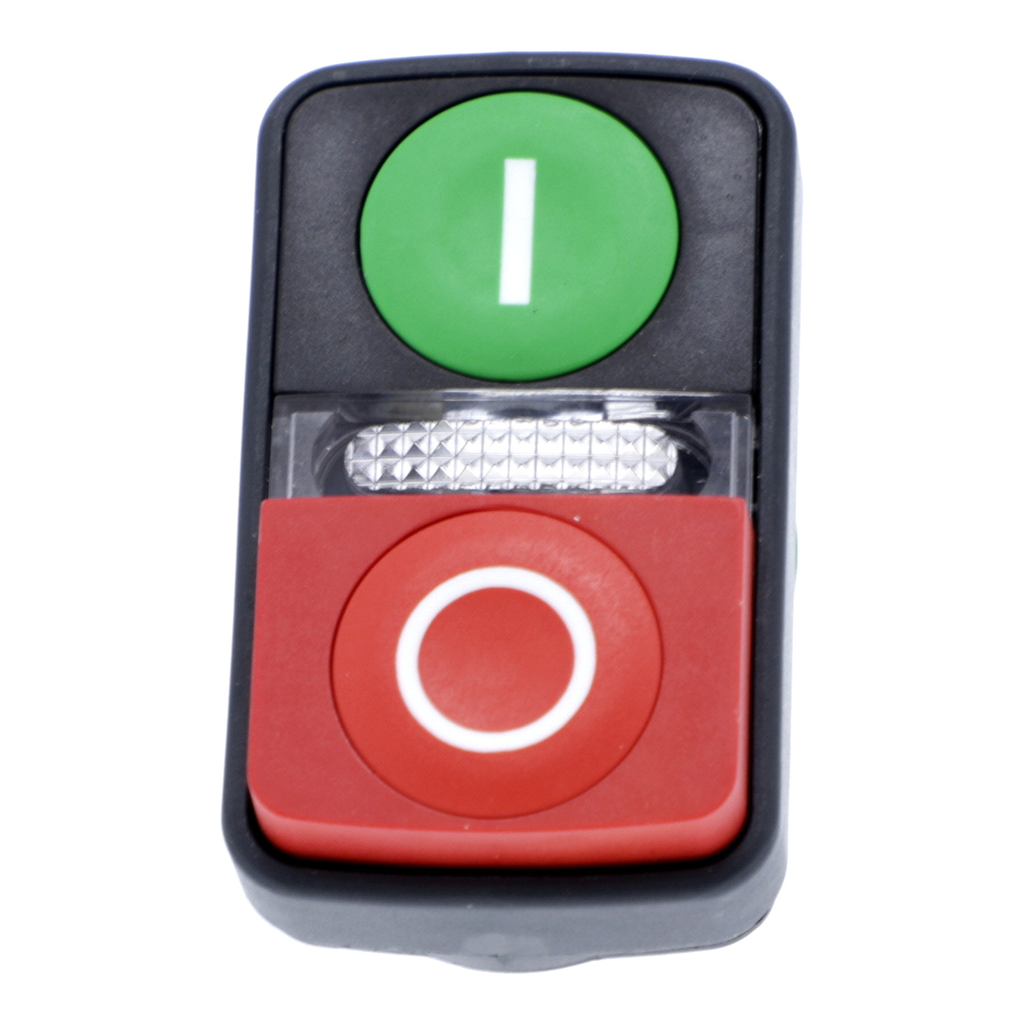

This Harmony XB5, double head has a 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Product Description
  • Specifications
This Harmony XB5, double head has a 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Operators Description : green ''I'' - red ''O''
  • Shape Of Signaling Unit Head : rectangular
  • Mounting Diameter : 22 mm
  • Sale Per Indivisible Quantity : 1
  • Product Or Component Type : head for illuminated double-headed push-button
  • Range Of Product : Harmony XB5
  • Operator Profile : 1 flush - 1 projecting push-buttons - 1 central pilot light
  • Head Type : standard
  • Bezel Material : dark grey plastic
  • Product Compatibility : integral LED
  • Type Of Operator : spring return
  • Device Short Name : ZB5
  • Environment
    • Electrical Shock Protection Class : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Standards : EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
    • Ip Degree Of Protection : IP66 || IP69 || IP69K
    • Ik Degree Of Protection : IK05 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Product Certifications : LROS (Lloyds register of shipping) || UL Listed || GL || CSA || DNV || BV
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Operator Profile : green flush, I white) || red projecting, O white)
    • Cad Overall Depth : 35 mm
    • Device Presentation : basic sub-assemblies
    • Station Name : XALD 1 cut-out
    • Mechanical Durability : 1000000 cycles
    • Net Weight : 0.023 kg
    • Cad Overall Height : 50 mm
    • Cad Overall Width : 30 mm
  • Offer Sustainability
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Environmental Disclosure : ENVPEP1710010EN
