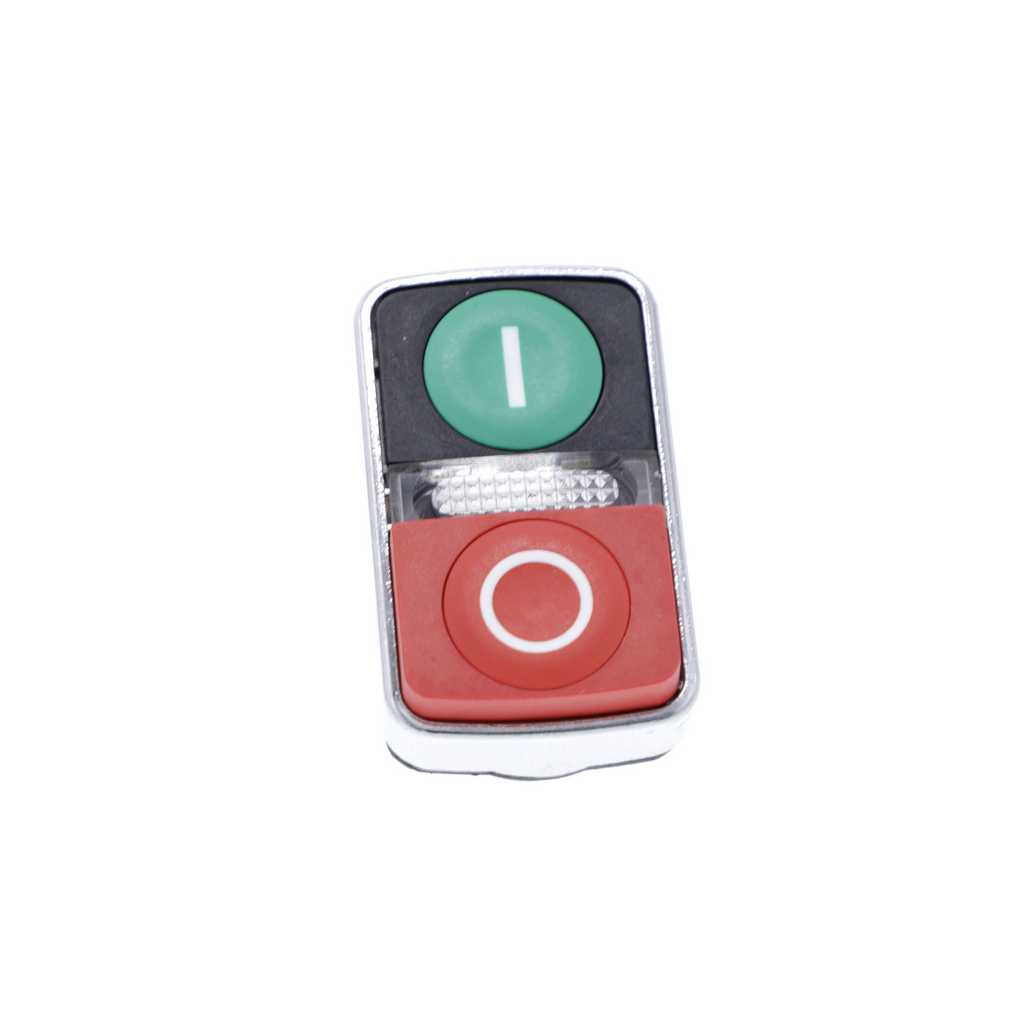

Harmony XB4, Illuminated double-headed push button head, metal, Ø22, marked, 1 green flush I + 1 pilot light + 1 red projecting O

METAL ILLUM FLUSH/PROJ TWO BUT

SQDZB4BW7L3741 ZB4BW7L3741 785901685357
49.37 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Net Weight: 0.056 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4, double head has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. it is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Product Description
  • Specifications
This Harmony XB4, double head has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. it is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Rohs Exemption Information : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • Reach Free Of Svhc : Yes
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Mercury Free : Yes
    • China Rohs Regulation : X
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Cad Overall Height : 50 mm
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Depth : 30 mm
    • Cad Overall Width : 30 mm
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
    • Device Presentation : basic sub-assemblies
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Net Weight : 0.056 kg
    • Operator Profile : green flush, I white) || red projecting, O white)
    • Colour Of Marking : white marking when green, red or black caps || black marking when white caps
  • Head Type : standard
  • Type Of Operator : spring return
  • Bezel Material : chromium plated metal
  • Range Of Product : Harmony XB4
  • Shape Of Signaling Unit Head : rectangular
  • Device Short Name : ZB4
  • Mounting Diameter : 22 mm
  • Sale Per Indivisible Quantity : 1
  • Product Compatibility : integral LED
  • Operators Description : green ''I'' - red ''O''
  • Operator Profile : 1 flush - 1 projecting push-buttons - 1 central pilot light
  • Product Or Component Type : head for illuminated double-headed push-button
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Electrical Shock Protection Class : class I IEC 61140
    • Product Certifications : UL Listed || DNV || BV || LROS (Lloyds register of shipping) || GL || CSA
    • Ik Degree Of Protection : IK06 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Standards : EN/IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69K || IP69 IEC 60529
    • Protective Treatment : TH
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
