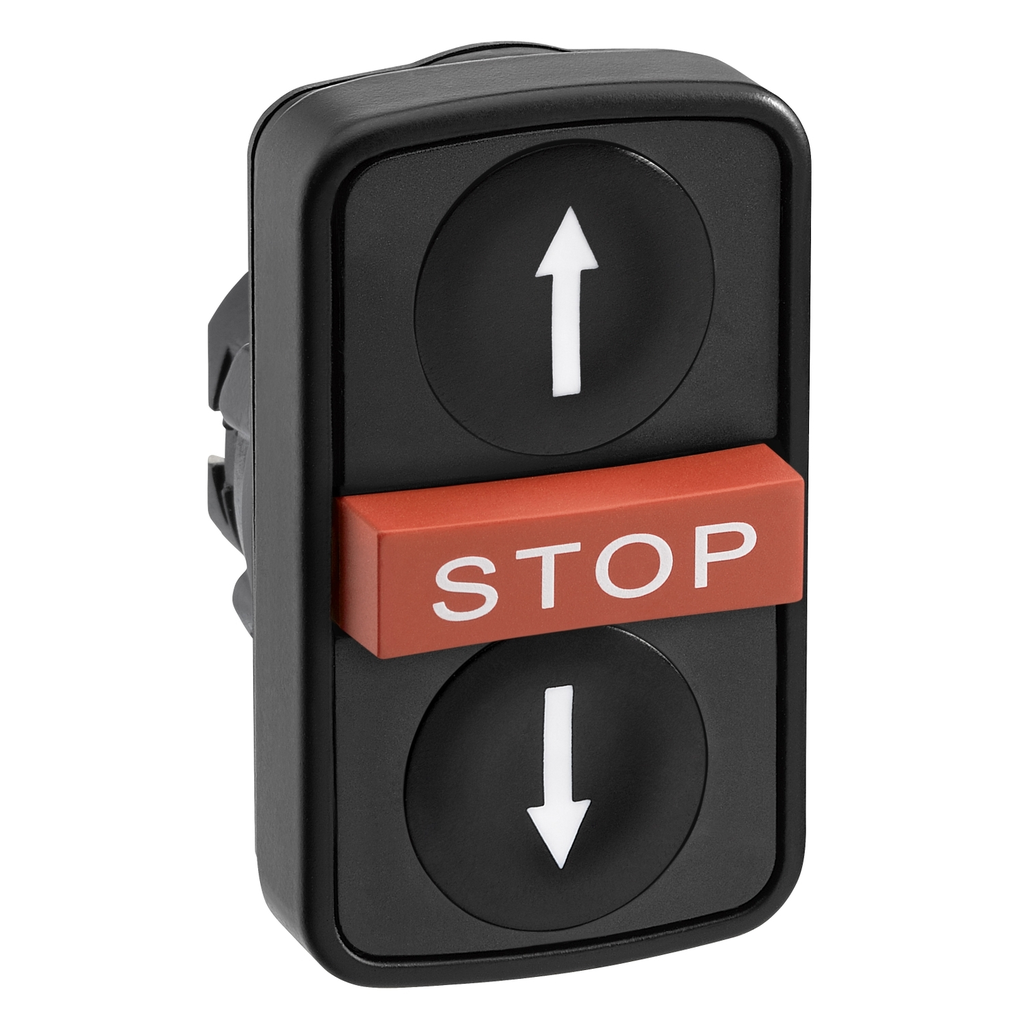

Head for triple headed push button, Harmony XB5, black flush/red projecting/black flush pushbutton Ø22 mm with marking

HEAD FOR TRIPLE HEADED PUSH BU

SQDZB5AA72124 ZB5AA72124 3389119043496
54.64 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for triple headed push button, Harmony XB5, black flush/red projecting/black flush pushbutton Ø22 mm with marking-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Net Weight: 0.023 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 black buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 black buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
  • Environment
    • Product Certifications : UL Listed || GL || LROS (Lloyds register of shipping) || CSA || DNV || BV
    • Ik Degree Of Protection : IK05 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Standards : JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Electrical Shock Protection Class : class II IEC 61140
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP67 IEC 60529 || IP69 IEC 60529 || IP69K
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710010EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Complementary
    • Operator Profile : red projecting, STOP white) || black flush, down arrow white) || black flush, up arrow white)
    • Mechanical Durability : 1000000 cycles
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Station Name : XALD 1 cut-out
    • Cad Overall Width : 30 mm
    • Colour Of Marking : black marking when white caps || white marking when green, red or black caps
    • Cad Overall Depth : 35 mm
    • Net Weight : 0.023 kg
    • Cad Overall Height : 50 mm
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
  • Specifications
    • Range Of Product : Harmony XB5
    • Bezel Material : dark grey plastic
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Operators Description : black ''up arrow'' - black ''down arrow'' - red ''STOP''
    • Product Or Component Type : head for triple-headed push-button
    • Shape Of Signaling Unit Head : rectangular
    • Device Short Name : XB5
    • Operator Profile : 2 flush - 1 central projecting STOP push-buttons
    • Head Type : standard
