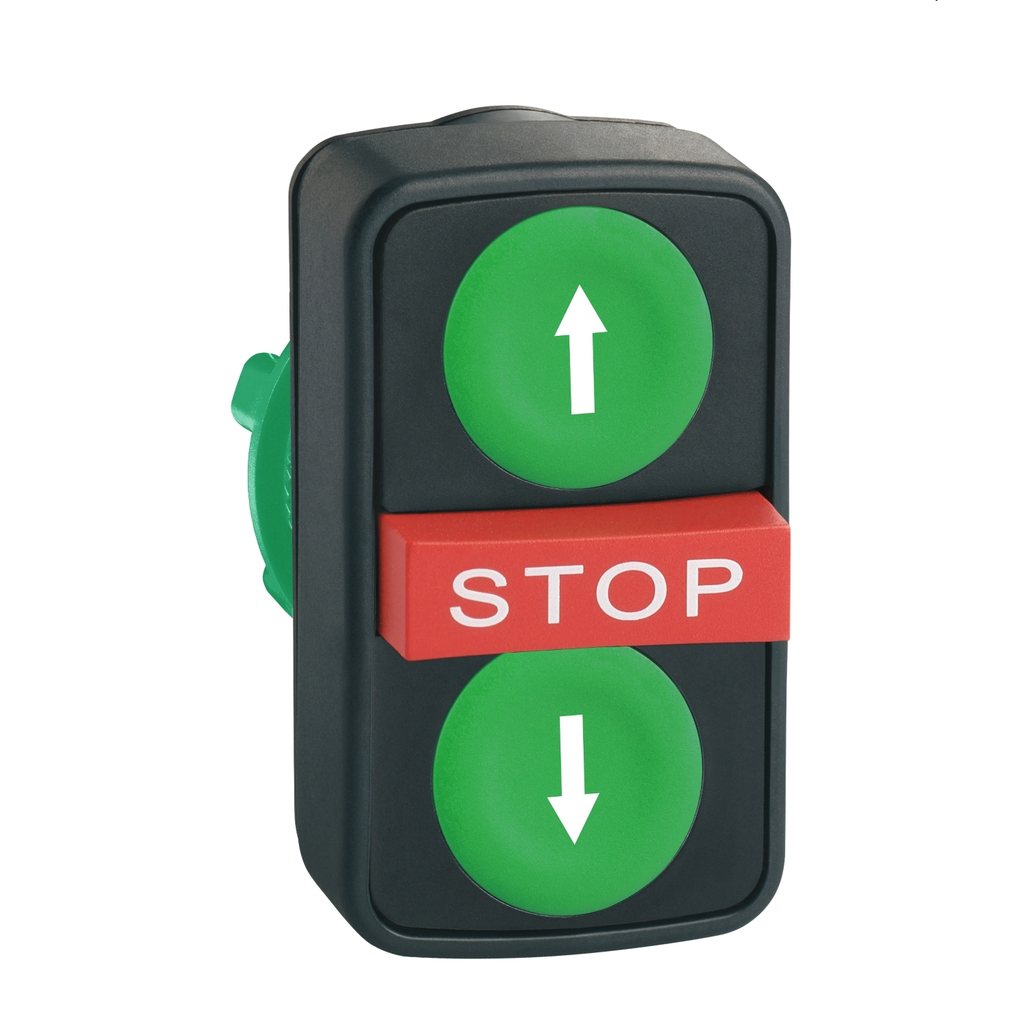

Head for triple headed push button, Harmony XB5, XB4, green flush/red projecting/green flush pushbutton Ø22 mm with marking

HEAD FOR TRIPLE HEADED PUSH BU

SQDZB5AA73134 3389119043441
49.88 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for triple headed push button, Harmony XB5, XB4, green flush/red projecting/green flush pushbutton Ø22 mm with marking-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.023 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 green buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 green buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It makes it ideal for operation in harsh environments.
  • Environment
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ambient Air Temperature For Operation : -25-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Product Certifications : GL || BV || LROS (Lloyds register of shipping) || CSA || UL Listed || DNV
    • Electrical Shock Protection Class : class II IEC 61140
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK05 IEC 50102
    • Ip Degree Of Protection : IP67 IEC 60529 || IP69 IEC 60529 || IP69K
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Sustainable Offer Status : Green Premium product
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1710010EN
  • Complementary
    • Cad Overall Height : 50 mm
    • Colour Of Marking : black marking when white caps || white marking when green, red or black caps
    • Cad Overall Width : 30 mm
    • Cad Overall Depth : 35 mm
    • Mechanical Durability : 1000000 cycles
    • Operator Profile : red projecting, STOP white) || green flush, down arrow white) || green flush, up arrow white)
    • Device Presentation : basic element
    • Station Name : XALD 1 cut-out
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Net Weight : 0.023 kg
  • Specifications
    • Head Type : standard
    • Shape Of Signaling Unit Head : rectangular
    • Range Of Product : Harmony XB5
    • Bezel Material : dark grey plastic
    • Device Short Name : XB5
    • Operator Profile : 2 flush - 1 central projecting STOP push-buttons
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Product Or Component Type : head for triple-headed push-button
    • Operators Description : green ''up arrow'' - green ''down arrow'' - red ''STOP''
