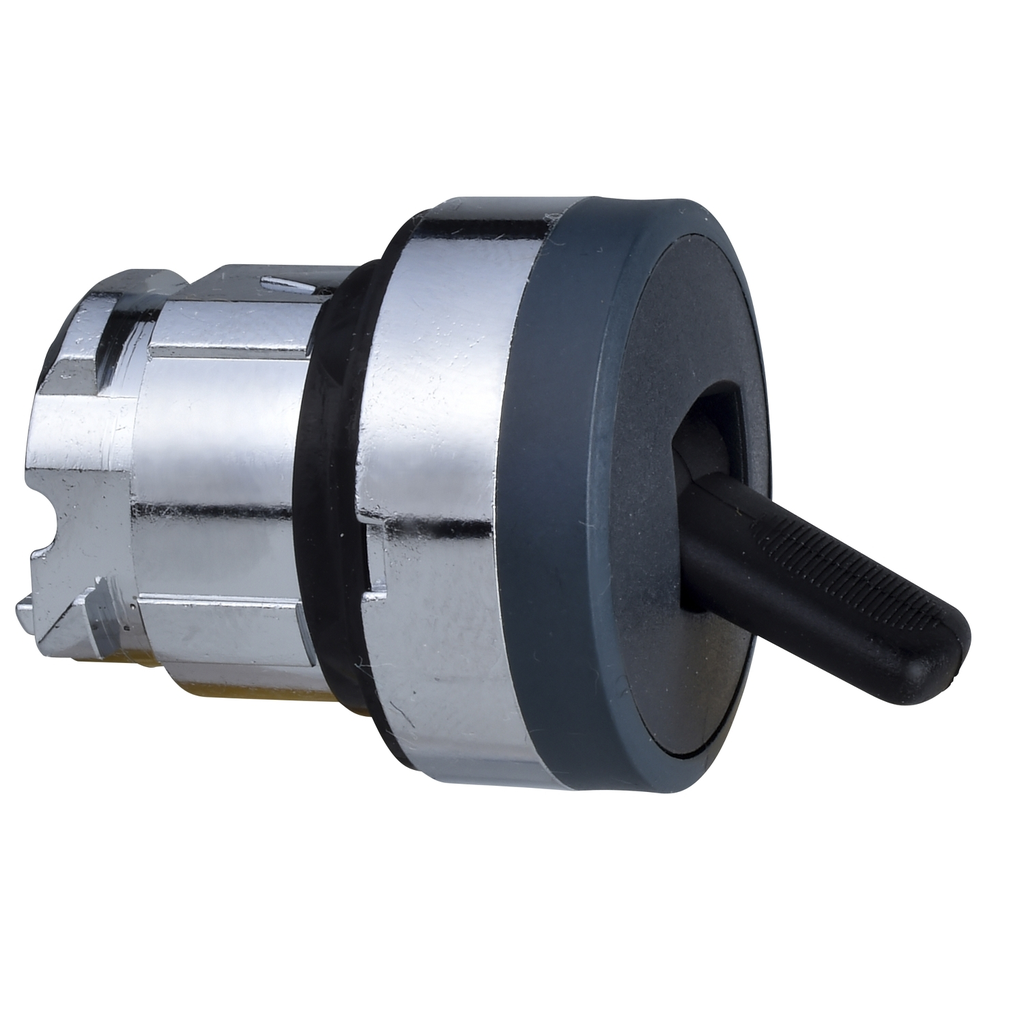

This Harmony XB4, black selector switch head with toggle switch with lever has 2 positions, operates with spring return from right to left mechanism. This switch head provides an ergonomic interface for controlling your machines. It is supplied with toggle switch with lever and can easily be installed on compatible selector switch units. It provides an effective manner to switch between the two conditions in various operating modes and numerous applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 45 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Important Information Attributes
• Customizable : no, 0
• Electrical Composition Code : C11 3 single front mounting, C11 3 single front mounting, C11 3 single front mounting, C11 3 single front mounting, C12 6 single front mounting, C12 6 single front mounting, C12 6 single front mounting, C12 6 single front mounting, C15 1 single front mounting, C15 1 single front mounting, C15 1 single front mounting, C15 1 single front mounting, C13 6 single and double front mounting, C13 6 single and double front mounting, C13 6 single and double front mounting, C13 6 single and double front mounting
• Operator Profile : black toggle switch, black toggle switch
• Overvoltage Category : class I conforming to IEC 60536, class I conforming to IEC 60536
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Distribution Phase A4 : 0.004184603, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0367518706
• Carbon Footprint Of The Installation Phase A5 : 0.0051748305, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.2130065786
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308005EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : chromium plated metal
• Compatibility Code : ZB4
• Device Short Name : ZB4
• Group Of Product : selec. switches 2 posi. lever
• Head Type : standard
• Main Group : selector switch
• Mounting Diameter : 22 mm
• Operator Position Information : 2 positions 90°
• Package Weight Lbs : 28.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for selector switch
• Range Of Product : Harmony XB4
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
• Type Of Operator : spring return
• Pep Code : ENVPEP2308005EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP69 IEC 60529, IP69 IEC 60529, IP69K
• Nema Degree Of Protection : NEMA 13, NEMA 4X
• Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.2591178828
• Circularity Profile : ENVEOLI2308005EN
• Environmental Disclosure : ENVPEP2308005EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Pep Code : ENVPEP2308005EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for selector switch
• Range Of Product : Harmony XB4
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : basic element
