SQUARE D

Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED

HEAD FOR PILOT LIGHT, HARMONY

SQDZB5CV013 3389110934724
23.63 / EA
http://schema.org/OutOfStock

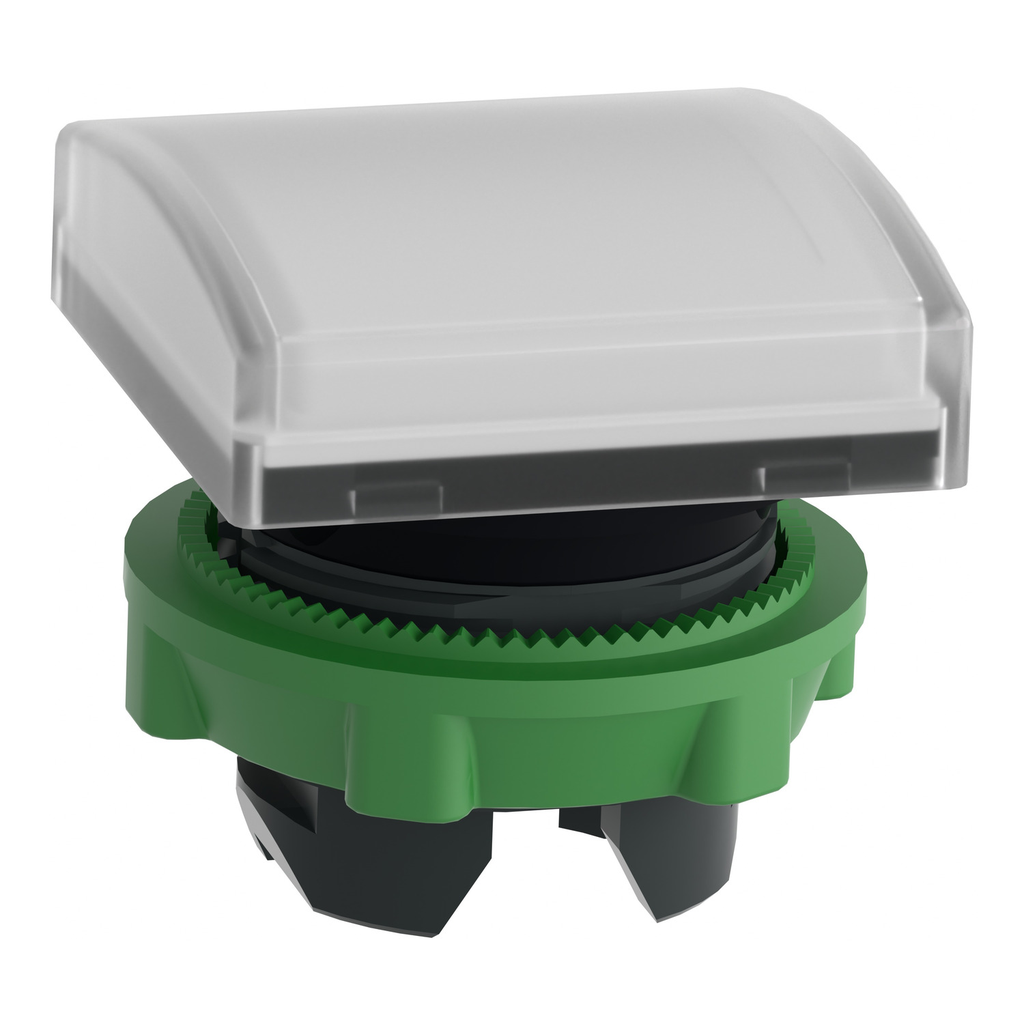

Mayer-DDS-Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED-1
  • Bezel Material: Plastic
  • IsSustainable: No
  • Net Weight: 0.02 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This white plain lens head for universal LED pilot light is designed to last without maintenance. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This white plain lens head for universal LED pilot light is designed to last without maintenance. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Ip Degree Of Protection : IP66 IEC 60529
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Standards : JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Overvoltage Category : class II IEC 60536
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK05 IEC 50102
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1710010EN
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Device Presentation : basic element
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Height : 30 mm
    • Cad Overall Width : 30 mm
    • Electrical Composition Code : P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
    • Net Weight : 0.02 kg
    • Cad Overall Depth : 29 mm
  • Specifications
    • Cap/Operator Or Lens Colour : white
    • Product Compatibility : universal LED
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB5
    • Operator Additional Information : with plain lens
    • Shape Of Signaling Unit Head : square
    • Device Short Name : ZB5
    • Mounting Diameter : 22 mm
    • Product Or Component Type : head for pilot light
    • Bezel Material : dark grey plastic
