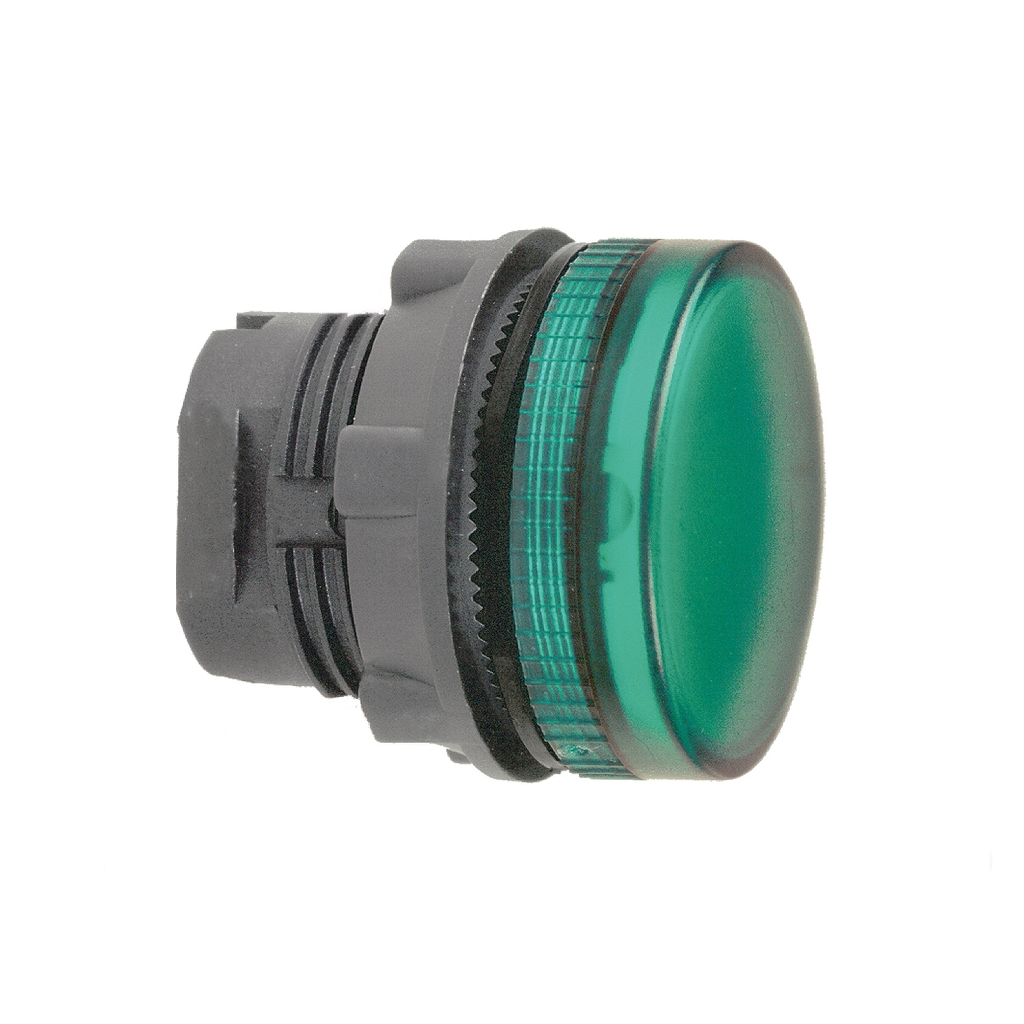

This Harmony XB5 grooved lens green head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Environment
- Ik Degree Of Protection : IK05 conforming to IEC 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Standards : UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage : -40-70 °C
- Environmental Characteristic : high ambient lighting environment
- Overvoltage Category : class II IEC 60536
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Protective Treatment : TH
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1710010EN
- Sustainable Offer Status : Green Premium product
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1710010EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Electrical Composition Code : P3 front mounting BA 9s || P4 front mounting BA 9s and transformer || PF2 front mounting BA 9s
- Net Weight : 0.017 kg
- Cad Overall Height : 29 mm
- Device Presentation : basic element
- Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Width : 29 mm
- Cad Overall Depth : 31 mm
- Specifications
- Operator Additional Information : with grooved lens
- Range Of Product : Harmony XB5
- Mounting Diameter : 22 mm
- Product Or Component Type : head for pilot light
- Shape Of Signaling Unit Head : round
- Cap/Operator Or Lens Colour : green
- Head Type : standard
- Sale Per Indivisible Quantity : 1
- Bezel Material : dark grey plastic
- Product Compatibility : BA 9s
- Device Short Name : ZB5
