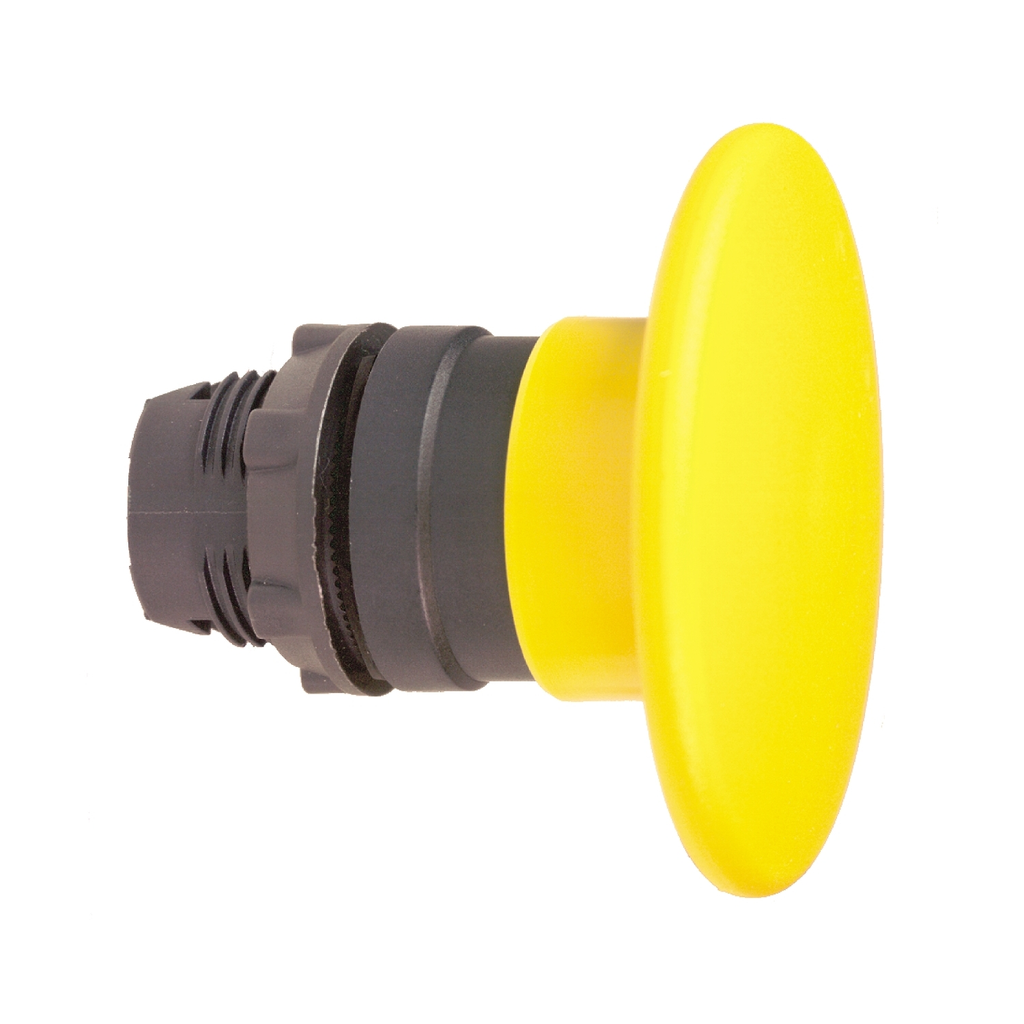

This yellow 60mm mushroom shaped push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Environment
- Product Certifications : DNV || GL || BV || LROS (Lloyds register of shipping) || CSA || UL Listed
- Ik Degree Of Protection : IK03 conforming to IEC 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Standards : EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage : -40-70 °C
- Overvoltage Category : class II IEC 60536
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Protective Treatment : TH
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1710010EN
- Sustainable Offer Status : Green Premium product
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1710010EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Net Weight : 0.065 kg
- Cad Overall Height : 60 mm
- Mechanical Durability : 5000000 cycles
- Compatibility Code : ZB5
- Station Name : XALD 1 cut-out
- Cad Overall Width : 60 mm
- Cad Overall Depth : 52 mm
- Specifications
- Range Of Product : Harmony XB5
- Mounting Diameter : 22 mm
- Type Of Operator : spring return
- Product Or Component Type : head for non-illuminated push-button
- Shape Of Signaling Unit Head : round
- Head Type : standard
- Device Presentation : basic element
- Sale Per Indivisible Quantity : 1
- Bezel Material : dark grey plastic
- Operator Profile : yellow mushroom Ø 60 mm, unmarked
- Device Short Name : ZB5
