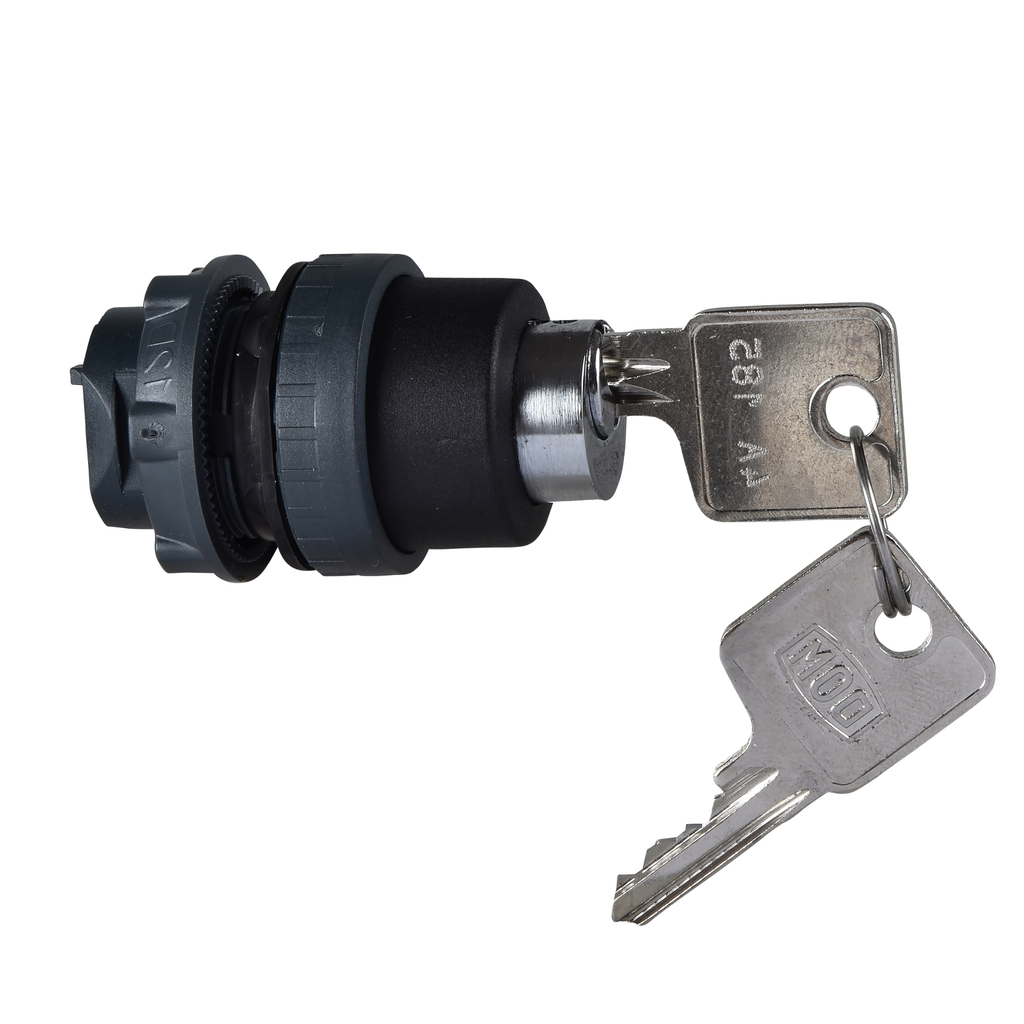

Head for non illuminated push button, Harmony XB5, key operated pushbutton Ø22 mm turn release Dom 4A185

HEAD FOR NON ILLUMINATED PUSH

SQDZB5AFDA ZB5AFDA 3389110905403
102.57 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Country of Origin: France
  • Head Type: Standard
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Electrical Composition Code
    • C12 6 single front mounting
    • C15 1 single front mounting
    • SF1 3 single front mounting
    • SF
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Carbon Footprint Of The Installation Phase A5
    • 0.0259385245
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.1338048275
  • Standards
    • IEC 60947-5-5
    • JIS C8201-5-1
    • IEC 60947-5-4
    • IEC 60947-5-1
    • IEC 60947-1
    • CSA C22.2 No 14
    • UL 508
    • JIS C8201-1
  • Station Name
    • XALD 1...5 cut-outs
    • XALK 2...5 cut-outs
  • Ip Degree Of Protection
    • IP66 IEC 60529
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.5 kg CO2 eq.
    • 0.5186840625
  • Electrical Shock Protection Class
    • class II conforming to IEC 60536
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Customizable
    • no
    • 0
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0099603865
    • 0 kg CO2 eq.
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Product Certifications
    • DNV
    • CSA
    • BV
    • LROS (Lloyds register of shipping)
    • UL Listed
  • Physical Attributes
    • Cad Overall Depth : 62 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
    • Cap Operator Or Lens Color : black
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-13
    • ETIM 10 : EC000222
    • Html Descr : Key-operated pushbutton head Dia 22 push-turn release Dom 4A185
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 0.5186840625
    • Distribution Carbon Footprint : 0.0099603865
    • Installation Carbon Footprint : 0.0259385245
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0.1338048275
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant with Exemptions
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : dark grey plastic
    • Cap Operator Or Lens Color : black
    • Compatibility Code : ZB5
    • Device Short Name : ZB5
    • Group Of Product : key operated push-button
    • Head Type : standard
    • Key Withdrawal Position : both positions
    • Locking Position : both positions
    • Main Group : selector switch
    • Mechanical Durability : 500000 cycles
    • Mounting Diameter : 22 mm
    • Operator Profile : key switch
    • Package Weight Lbs : 76.200 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for non-illuminated push-button
    • Protective Treatment : TH
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.7 kg CO2 eq.
    • Type Of Keylock : Dom 4A185
    • Type Of Operator : turn to release
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.688387801
  • General Attributes
    • Product Or Component Type : head for non-illuminated push-button
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=655684&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 0.688387801
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308008EN
    • Environmental Disclosure : ENVPEP2308008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
