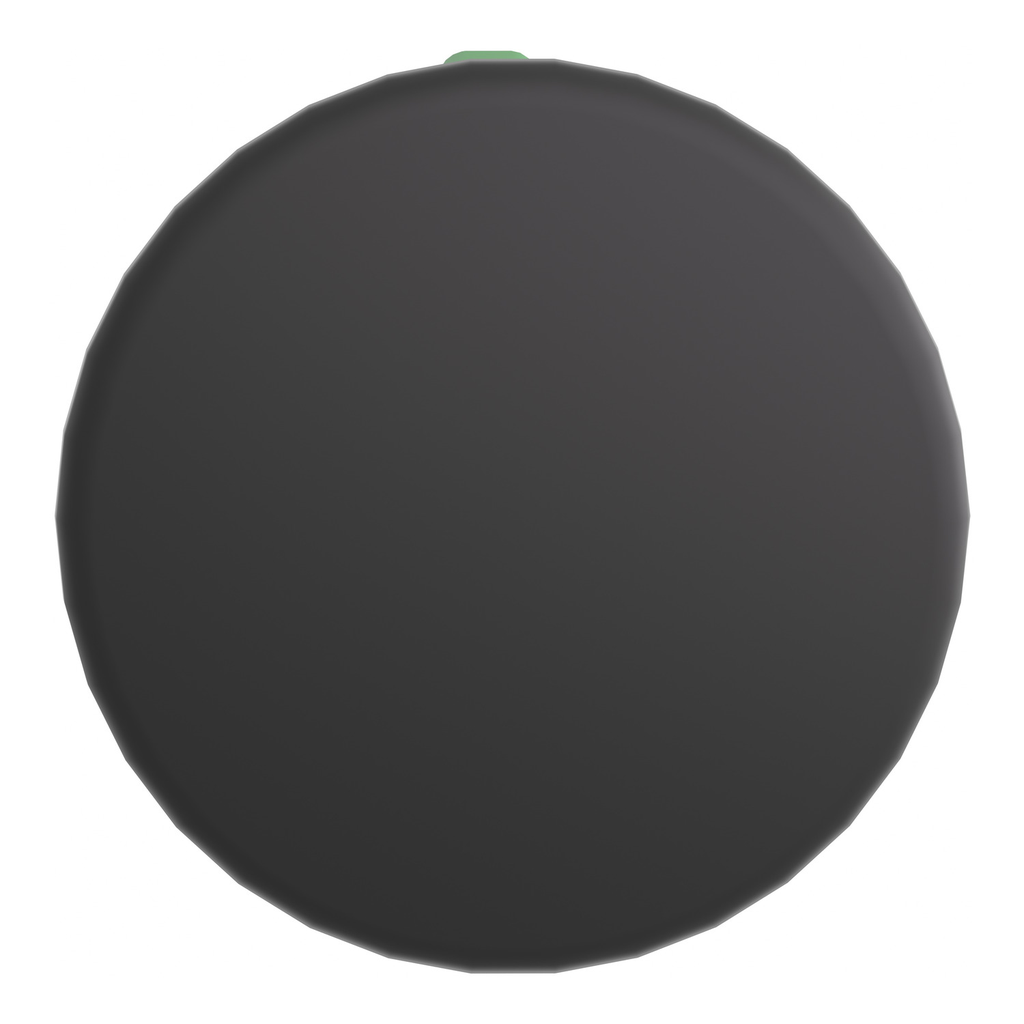

Head for non illuminated push button, Harmony XB5, black mushroom 40mm, 22mm, spring return, unmarked, set of 100

Head for non illuminated push

SQDZB5AC2TQ 3389119079020
25.73 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping)
  • Net Weight: 0.046 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 40mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions It is sold by 100 units High performance International standards & certifications ( Marine certification, IP66 IP69 IP69K, Type 4, 12, 13 and 4X)
QTY
  • Product Description
  • Specifications
This 40mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions It is sold by 100 units High performance International standards & certifications ( Marine certification, IP66 IP69 IP69K, Type 4, 12, 13 and 4X)
  • Specifications
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Head Type : standard
    • Sale Per Indivisible Quantity : 100
    • Bezel Material : dark grey plastic
    • Operator Profile : black mushroom Ø 40 mm, unmarked
    • Device Short Name : ZB5
  • Environment
    • Product Certifications : BV || LROS (Lloyds register of shipping) || GL || DNV || CSA
    • Ik Degree Of Protection : IK03 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1 || UL 508 || IEC 60947-5-4 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Net Weight : 0.046 kg
    • Cad Overall Height : 40 mm
    • Mechanical Durability : 5000000 cycles
    • Compatibility Code : ZB5
    • Station Name : XALD 1 cut-out || XALK 1 cut-out
    • Cad Overall Width : 40 mm
    • Cad Overall Depth : 52 mm
