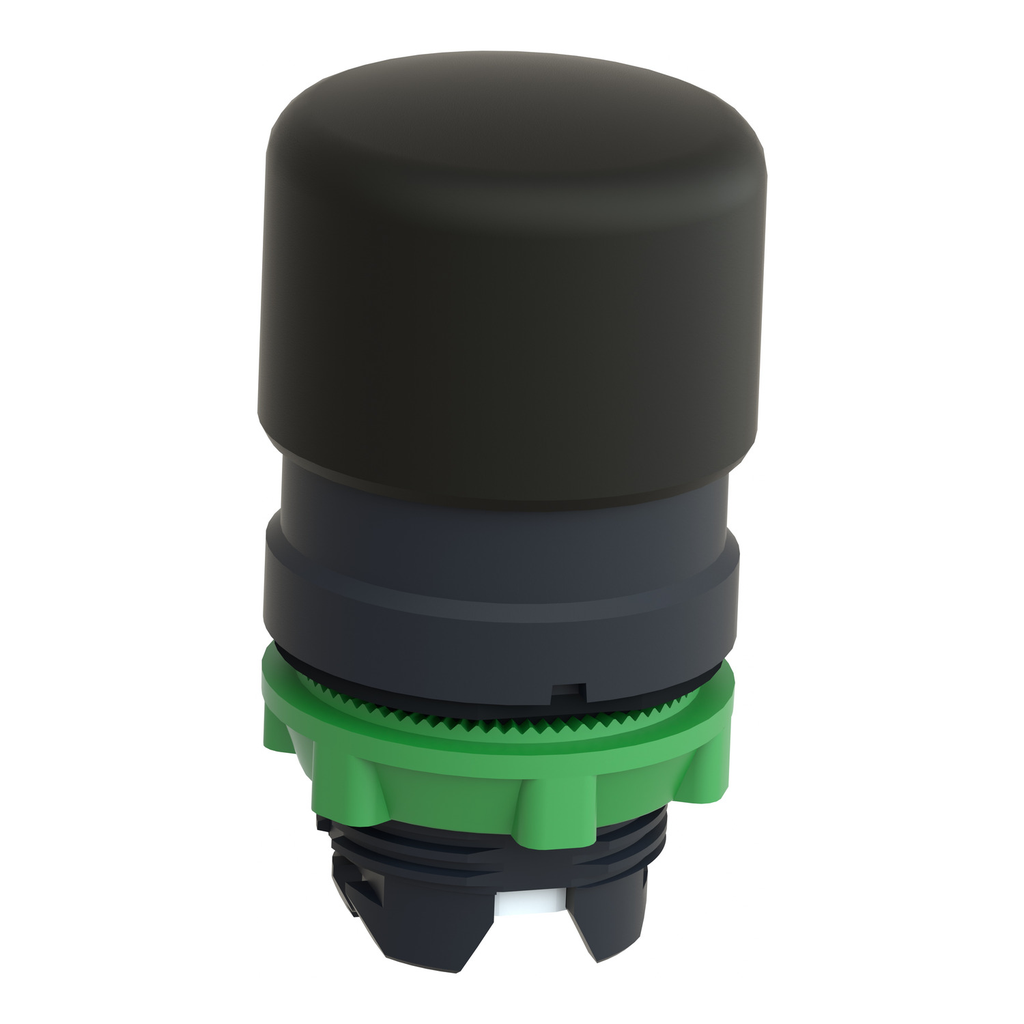

Head for non illuminated push button, Harmony XB5, black mushroom 30mm, 22mm, spring return, unmarked, set of 100

Head for non illuminated push

SQDZB5AC24TQ ZB5AC24TQ 3389119077828
28.19 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for non illuminated push button, Harmony XB5, black mushroom 30mm, 22mm, spring return, unmarked, set of 100-2
  • Bezel Material: Plastic
  • Country of Origin: Czechia
  • Head Type: Standard
This 30mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance t
QTY
  • Product Description
  • Features
  • Specifications
This 30mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance t
  • Overvoltage Category
    • class II conforming to IEC 60536
  • Electrical Composition Code
    • C1 9 single front mounting
    • C2 9 single and double front mounting
    • C2 9 single and double front mou
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AC24_NEW_2024
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AC_4F
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AC24TQ_3DCAD
  • IP Degree Of Protection
    • IP66 IEC 60529
    • IP69
    • IP69K
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0121286627
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.0831281514
  • Standards
    • IEC 60947-5-4
    • JIS C8201-5-1
    • CSA C22.2 No 14
    • UL 508
    • IEC 60947-5-1
    • IEC 60947-1
    • JIS C8201-1
  • Station Name
    • XALD 1...5 cut-outs
    • XALK 2...5 cut-outs
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.3 kg CO2 eq.
    • 0.3425359243
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Customizable
    • no
    • 0
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0160629507
    • 0 kg CO2 eq.
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Operator Profile
    • black mushroom Ø 30 mm, unmarked
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Physical Attributes
    • Cad Overall Depth : 52 mm
    • Cad Overall Height : 30 mm
    • Cad Overall Width : 30 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Manufacturing Carbon Footprint : 0.3425359243
    • Distribution Carbon Footprint : 0.0160629507
    • Installation Carbon Footprint : 0.0121286627
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0.0831281514
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2303008EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : dark grey plastic
    • Compatibility Code : ZB5
    • Device Short Name : ZB5
    • Group Of Product : mush. spring return non illum.
    • Head Type : standard
    • Main Group : mushroom head
    • Mounting Diameter : 22 mm
    • Package Weight Lbs : 362.874 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : head for non-illuminated push-button
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 100
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
    • Type Of Operator : spring return
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.4538556891
    • Relationship Type : Compatible relationship
    • Accessories : ZB5AZ905
    • Pep Code : ENVPEP2303008EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 46
    • Functional Unit Description : XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs a
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 0
    • Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    • Recyclability Potential In : 29
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.0025353497
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0023370493
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.0000700985
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.000009044
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0001191578
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0003237995
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.0034634586
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0034537049
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0000097536
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0001304608
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0.4504001023
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.3390897469
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0160629507
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0121192534
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.0831281514
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0556704679
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 0.4538556891
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.3425359243
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.0160629507
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.0121286627
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.0831281514
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0558010228
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0003378443
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000337843
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000001
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000012
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000158207
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 7.1543725901
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 4.7857172079
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1951030427
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0151631808
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 2.1583891588
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1.1881667093
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 109.7092437228
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 109.5860905139
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.0657878803
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.0124521094
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.0449132191
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1.0988601381
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000000211
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000000202
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000002
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000001
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.0000000006
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000000278
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.005785932
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.005785932
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0000038332
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000036187
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000019
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000002069
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000000056
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000001011
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 0.6391519317
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.6021048325
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000133119
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000079627
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0370258246
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1.2401534134
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000000874
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000873
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000001
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000001821
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000000167
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000159
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000007
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.000000003
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.0065523242
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0065523242
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0.7570798617
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.7563359755
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.000035625
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0000477595
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0006605017
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0089452416
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.0005052797
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0004446745
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000322341
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000047583
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0000236128
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000319977
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.0101785968
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0001205809
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0100580159
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.0008480758
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0004594002
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000189799
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000051773
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0003645185
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0005427318
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.4485334091
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.4187987727
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000163546
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0119992841
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0177189977
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0437005881
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000000835
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.000000069
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.0000000142
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000003
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000000097
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.0017407089
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0015259627
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0001144037
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.000012011
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0000883315
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0001308489
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0000976995
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0000932162
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000031946
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000004825
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000008063
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0000184941
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.0053353084
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0046776272
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0003492871
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0000357697
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0002726244
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0003699877
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 7.1543725901
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.7857172079
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1951030427
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0151631808
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.1583891588
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.1881667093
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 7.3126050626
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 4.9430887241
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1951148044
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0156595244
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 2.1587420097
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1.1982817694
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1582405779
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1574303247
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000013071
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0004961907
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0003127553
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0101167067
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.6100792636
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.6100792636
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 6.5442933265
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.1756379443
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1951030427
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0151631808
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 2.1583891588
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.1881667093
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.2027716696
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.2027716696
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0021705037
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : -0.0445275633
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -0.0453378164
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000013071
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0004961907
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0003127553
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.007946203
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : head for non-illuminated push-button
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=267941220&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.4538556891
    • Circularity Profile : ENVEOLI2303008EN
    • Environmental Disclosure : ENVPEP2303008EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2303008EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Specifications
    • Country of Origin : Czechia
