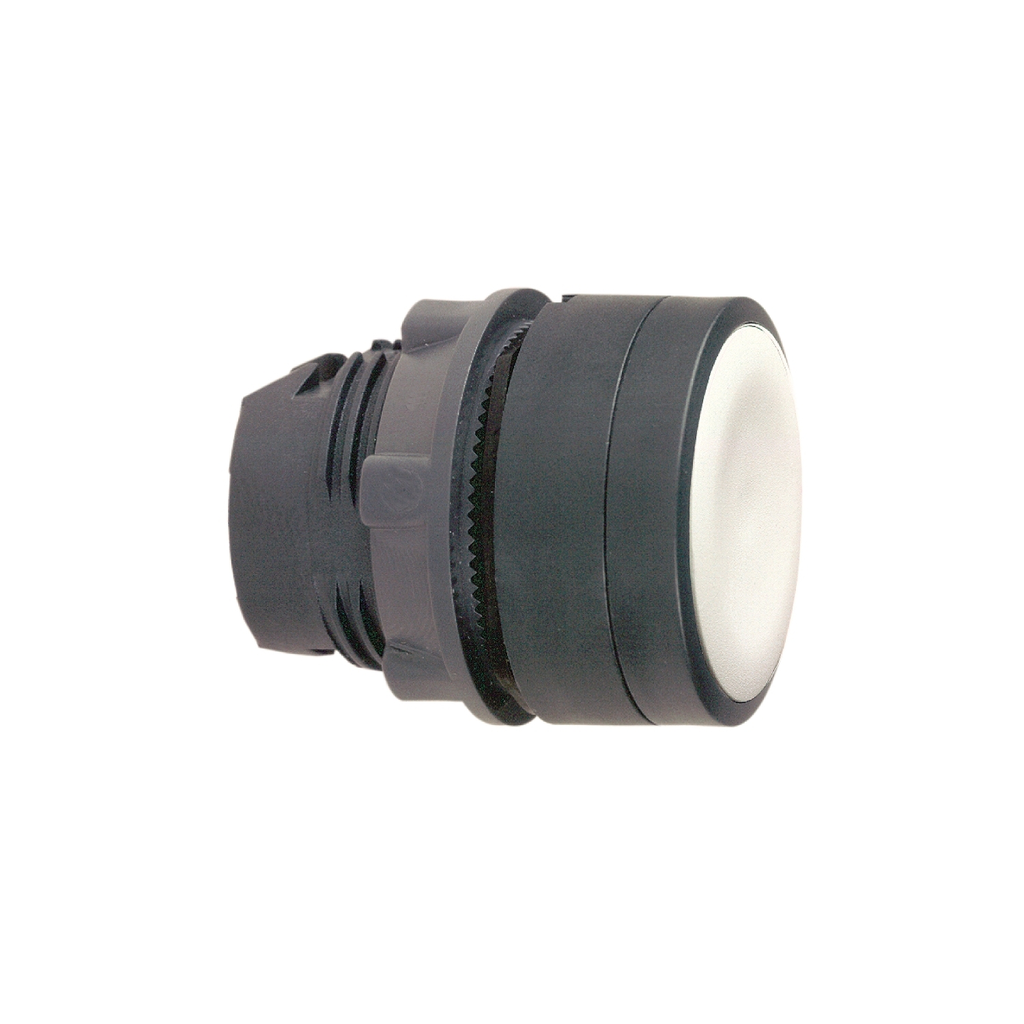

This white button head provides a robust and ergonomic interface for controlling your machines thanks to its high bezel flush head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It

• Overvoltage Category
• class II conforming to IEC 60536
• Electrical Composition Code
• C1 9 single front mounting
• C2 9 single and double front mounting
• C2 9 single and double front mou
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0052733316
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0361426745
• Standards
• CSA C22.2 No 14
• IEC 60947-5-1
• IEC 60947-5-4
• IEC 60947-1
• JIS C8201-5-1
• UL 508
• JIS C8201-1
• Station Name
• XALD 1...5 cut-outs
• XALK 2...5 cut-outs
• Ip Degree Of Protection
• IP66 IEC 60529
• IP67
• IP69
• IP69K
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.1 kg CO2 eq.
• 0.1489286627
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Accessories
• ZB5AZ905
• ZBY2101
• ZBYLEG304001
• ZBYP2101
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Customizable
• no
• 1
• Carbon Footprint Of The Distribution Phase A4
• 0.0069838916
• 0 kg CO2 eq.
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Operator Profile
• white flush, unmarked
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• Product Certifications
• DNV
• CSA
• BV
• LROS (Lloyds register of shipping)
• UL Listed

• Physical Attributes
• Cad Overall Depth : 31 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Cap Operator Or Lens Color : white
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2024-02-10
• ETIM 10 : EC000221
• Manufacturing Carbon Footprint : 0.1489286627
• Distribution Carbon Footprint : 0.0069838916
• Installation Carbon Footprint : 0.0052733316
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.0361426745
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2303008EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : dark grey plastic
• Cap Operator Or Lens Color : white
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Gcr Bridge : ZB5AACUST03
• Group Of Product : flush push (high bezel)
• Head Type : standard
• Main Group : push-button
• Marking : unmarked
• Mechanical Durability : 10000000 cycles
• Mounting Diameter : 22 mm
• Operator Additional Information : high guard
• Package Weight Lbs : 20.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for non-illuminated push-button
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Type Of Operator : spring return
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.1973285605
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=655964&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 0.1973285605
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2303008EN
• Environmental Disclosure : ENVPEP2303008EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic element
