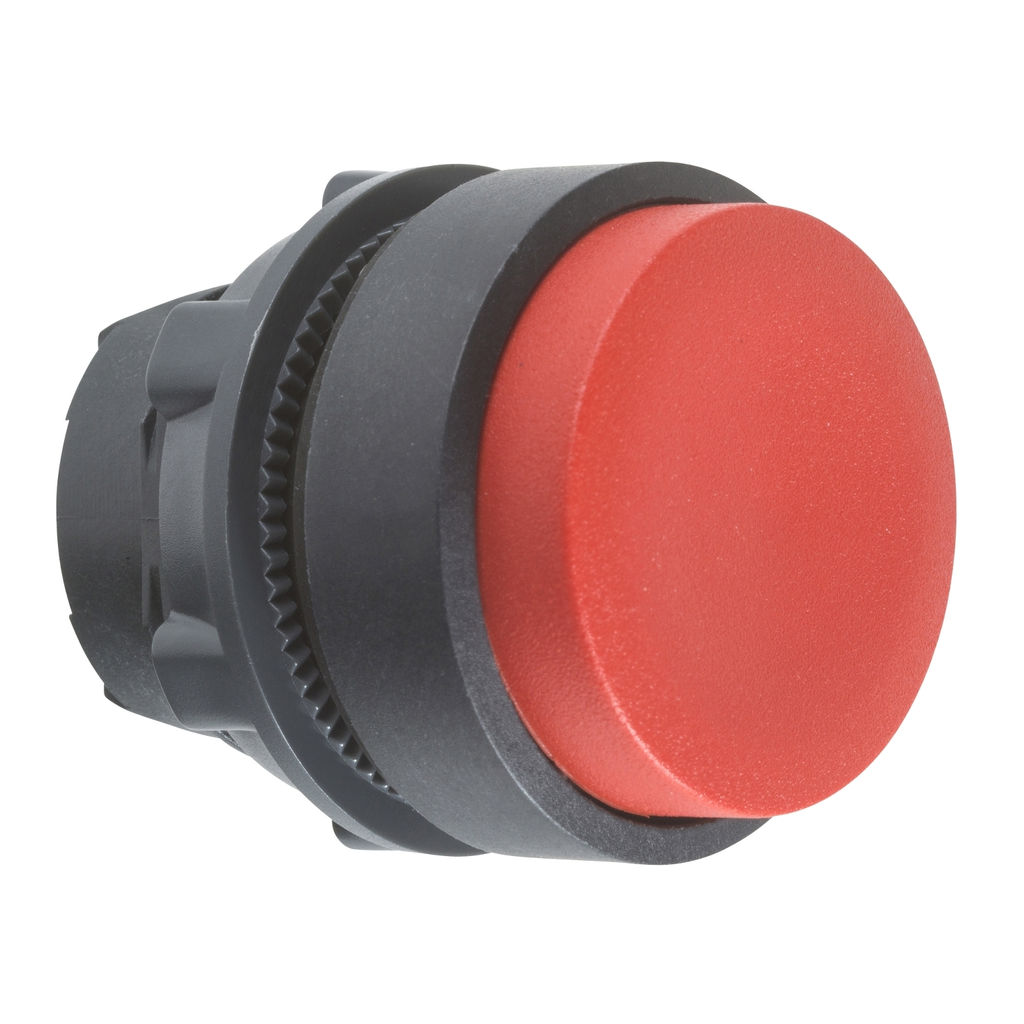

Head for non illuminated push button, Harmony XB5, XB4, red projecting pushbutton Ø22 mm unmarked

HEAD FOR NON ILLUMINATED PUSH

SQDZB5AH4 3389110905939
15.41 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for non illuminated push button, Harmony XB5, XB4, red projecting pushbutton Ø22 mm unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.018 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This red projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This red projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Protective Treatment : TH
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Operation : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Product Certifications : LROS (Lloyds register of shipping) || BV || UL Listed || CSA || DNV || GL
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK03 IEC 50102
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Complementary
    • Electrical Composition Code : C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C9 3 single front mounting
    • Mechanical Durability : 2000000 cycles
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Device Presentation : basic element
    • Cad Overall Depth : 33 mm
    • Net Weight : 0.018 kg
    • Cad Overall Width : 29 mm
    • Cad Overall Height : 29 mm
  • Specifications
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
    • Head Type : standard
    • Bezel Material : dark grey plastic
    • Mounting Diameter : 22 mm
    • Range Of Product : Harmony XB5
    • Operator Profile : red projecting, unmarked
    • Product Or Component Type : head for non-illuminated push-button
    • Type Of Operator : push-push
    • Shape Of Signaling Unit Head : round
