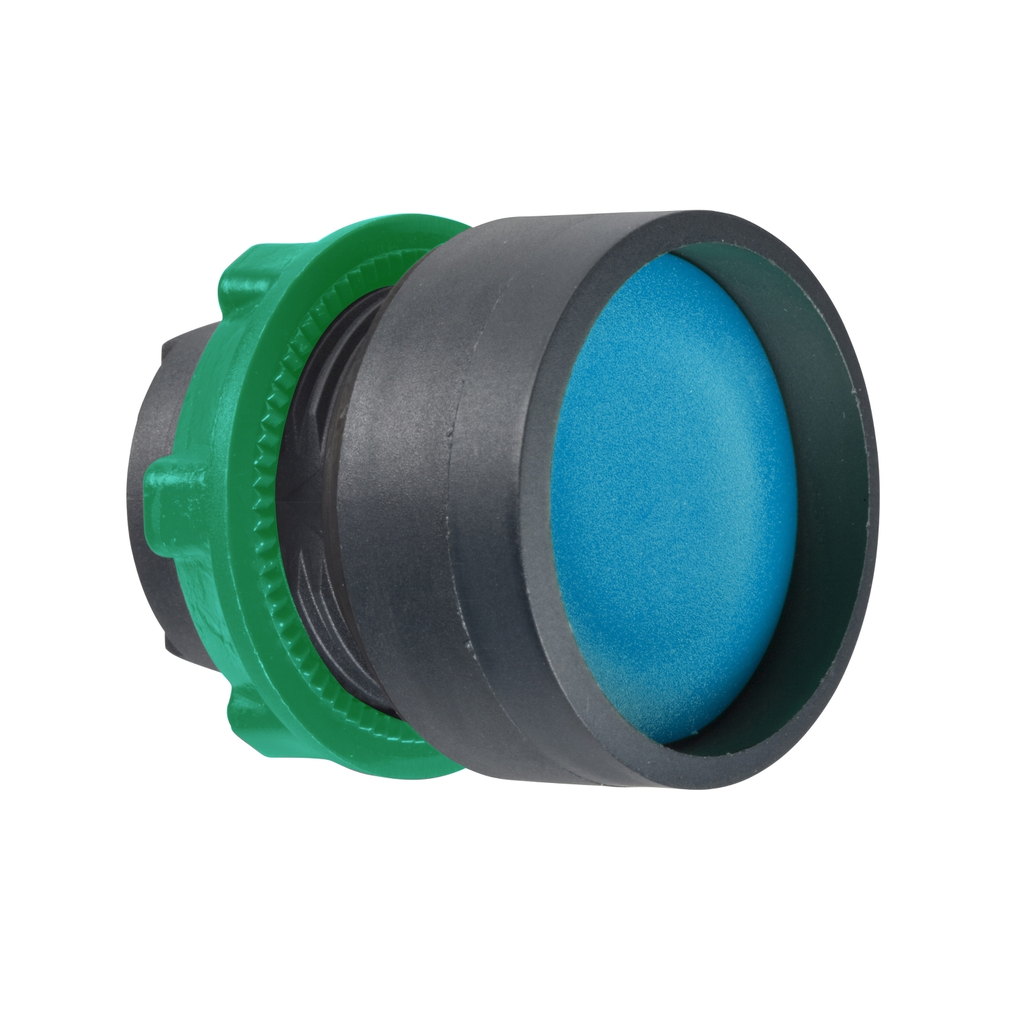

Head for non illuminated push button, Harmony XB5, XB4, blue recessed pushbutton Ø22 mm spring return unmarked

HEAD FOR NON ILLUMINATED PUSH

SQDZB5AA66 3389110291551
28.18 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for non illuminated push button, Harmony XB5, XB4, blue recessed pushbutton Ø22 mm spring return unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.02 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This blue button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This blue button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : UL Listed || GL || CSA || BV || LROS (Lloyds register of shipping) || DNV
    • Overvoltage Category : class II IEC 60536
    • Ik Degree Of Protection : IK03 IEC 50102
    • Protective Treatment : TH
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1710010EN
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • China Rohs Regulation : X
    • Sustainable Offer Status : Green Premium product
  • Complementary
    • Cad Overall Height : 29 mm
    • Cad Overall Depth : 31 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Mechanical Durability : 10000000 cycles
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Net Weight : 0.02 kg
    • Device Presentation : basic element
    • Cad Overall Width : 29 mm
  • Specifications
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : dark grey plastic
    • Operator Additional Information : high guard
    • Type Of Operator : spring return
    • Product Or Component Type : head for non-illuminated push-button
    • Operator Profile : blue recessed, unmarked
    • Mounting Diameter : 22 mm
    • Shape Of Signaling Unit Head : round
    • Head Type : standard
    • Range Of Product : Harmony XB5
