SQUARE D

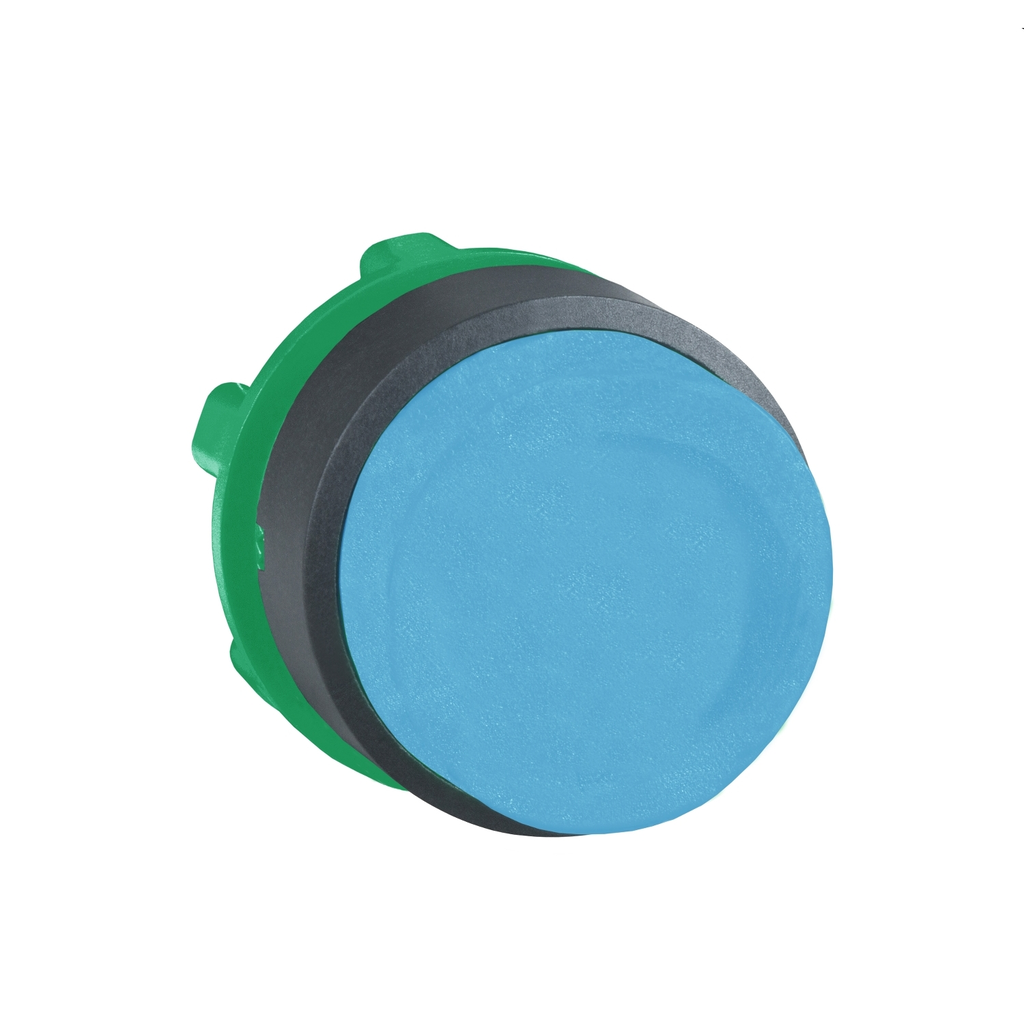

Head for non illuminated push button, Harmony XB5, XB4, blue projecting pushbutton Ø22 mm spring return unmarked

HEAD FOR NON ILLUMINATED PUSH

SQDZB5AL6 3389110906530
11.38 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for non illuminated push button, Harmony XB5, XB4, blue projecting pushbutton Ø22 mm spring return unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.019 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This blue projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This blue projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Protective Treatment : TH
    • Overvoltage Category : class II IEC 60536
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Product Certifications : UL Listed || DNV || CSA || BV || GL || LROS (Lloyds register of shipping)
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ik Degree Of Protection : IK03 IEC 50102
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • Sustainable Offer Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Environmental Disclosure : ENVPEP1710010EN
  • Complementary
    • Device Presentation : basic element
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Cad Overall Depth : 33 mm
    • Mechanical Durability : 10000000 cycles
    • Net Weight : 0.019 kg
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
  • Specifications
    • Type Of Operator : spring return
    • Head Type : standard
    • Bezel Material : dark grey plastic
    • Device Short Name : ZB5
    • Mounting Diameter : 22 mm
    • Product Or Component Type : head for non-illuminated push-button
    • Operator Profile : blue projecting, unmarked
    • Range Of Product : Harmony XB5
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
