SQUARE D

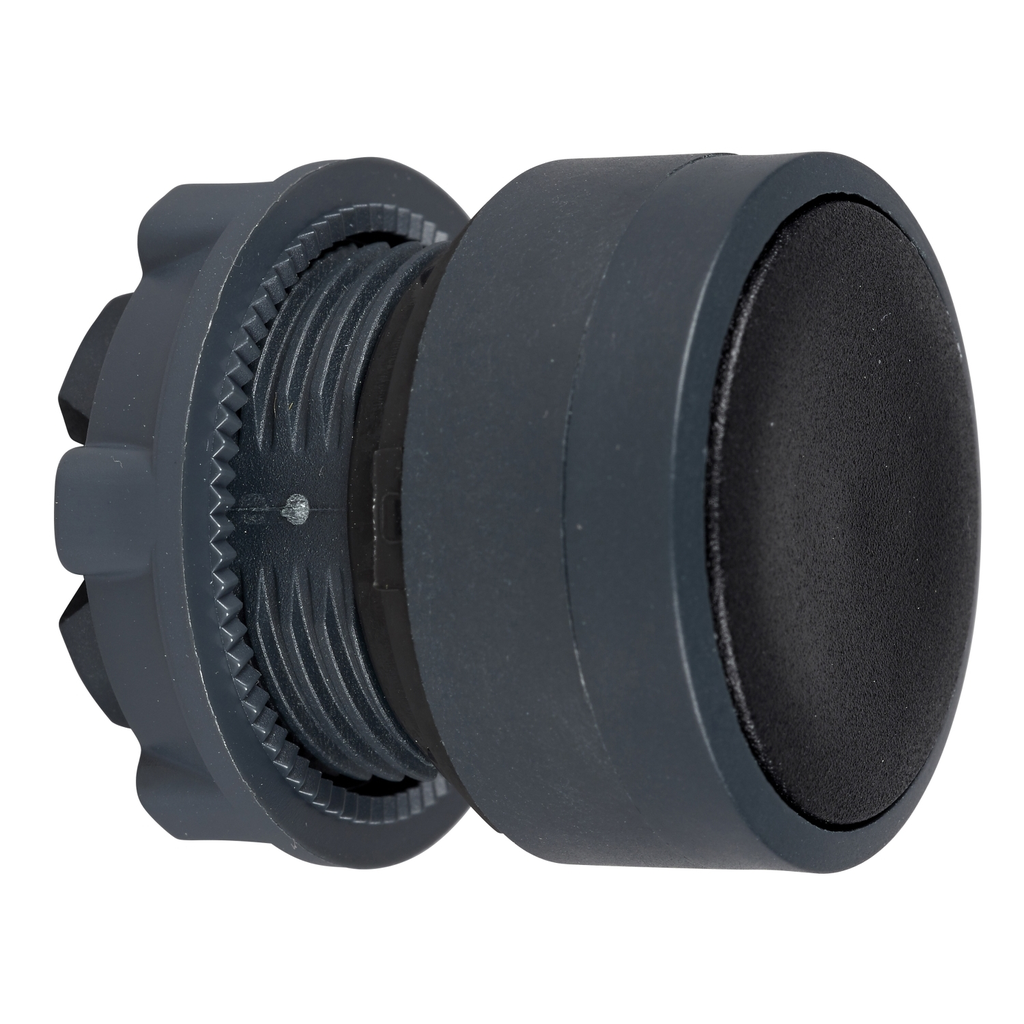

Head for non illuminated push button, Harmony XB5, XB4, black flush pushbutton Ø22 mm spring return unmarked

HEAD FOR NON ILLUMINATED PUSH

SQDZB5AA24 3389110134735
28.18 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for non illuminated push button, Harmony XB5, XB4, black flush pushbutton Ø22 mm spring return unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.02 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This black button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This black button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Overvoltage Category : class II IEC 60536
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Protective Treatment : TH
    • Ambient Air Temperature For Storage : -40-70 °C
    • Product Certifications : BV || GL || UL Listed || LROS (Lloyds register of shipping) || CSA || DNV
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ik Degree Of Protection : IK03 IEC 50102
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Sustainable Offer Status : Green Premium product
  • Complementary
    • Net Weight : 0.02 kg
    • Device Presentation : basic element
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Depth : 31 mm
    • Cad Overall Width : 29 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Cad Overall Height : 29 mm
    • Mechanical Durability : 10000000 cycles
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : dark grey plastic
    • Type Of Operator : spring return
    • Operator Additional Information : high guard
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Operator Profile : black flush, unmarked
    • Range Of Product : Harmony XB5
    • Device Short Name : ZB5
    • Mounting Diameter : 22 mm
    • Head Type : standard
