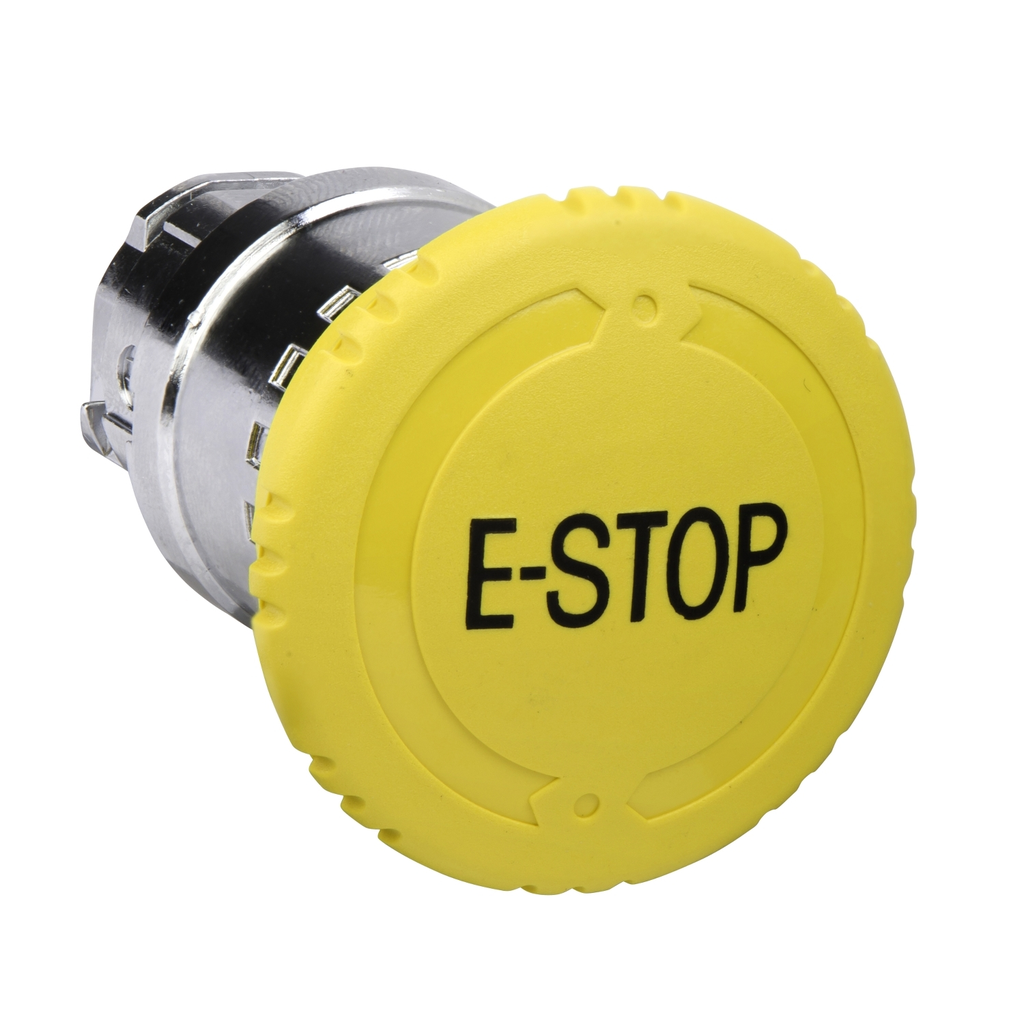

Head for non illuminated push button, Harmony XB4, yellow mushroom Ø 40 mm pushbutton Ø22 mm with marking

Name: Head for non illuminated push button, Harmony XB4, yellow mushroom Ø 40 mm pushbutton Ø22 mm with marking
Brand: SQUARE D
SKU: SQDZB4BS5540
Price: 81.48 USD
Availability: OutOfStock

HEAD FOR NON ILLUMINATED PUSH

SQDZB4BS5540 ZB4BS5540 3606480502828

81.48 / EA

http://schema.org/OutOfStock

Mayer-DDS-Head for non illuminated push button, Harmony XB4, yellow mushroom Ø 40 mm pushbutton Ø22 mm with marking-1

Bezel Material: Chromium Plated Metal
Country of Origin: Czechia
Head Type: Standard
Warranty Length: 18 mth

QTY

Features
Specifications

Overvoltage Category

class I conforming to IEC 60536

Electrical Composition Code

C11 3 single front mounting
C15 1 single front mounting
C7 4 single front mounting
C8 4 single and double front mounting
C10 4 single and double front mounting

IP Degree Of Protection

IP66 IEC 60529
IP67
IP69
IP69K

Prop 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon Footprint Of The Installation Phase A5

0.0003289177
0 kg CO2 eq.

Carbon Footprint Of The End Of Life Phase C1 To C4

0 kg CO2 eq.
0.0088292298

Carbon Footprint Of The Manufacturing Phase A1 To A3

0.8 kg CO2 eq.
0.8025923607

Nema Degree Of Protection

NEMA 13
NEMA 4X

Vibration Resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Carbon Footprint Of The Use Phase B2 B3 B4 B6

0 kg CO2 eq.
0

Customizable

Carbon Footprint Of The Distribution Phase A4

0.0098057608
0 kg CO2 eq.

Shock Resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Assets

CAD : https://download.schneider-electric.com/files?p_Doc_Ref=ZB4BS5540_NEW_2024

Physical Attributes

Cad Overall Depth : 57 mm
Cad Overall Height : 40 mm
Cad Overall Width : 40 mm

Important Information Attributes

Local Data Status : Publishable
Local Publishable Date : 2024-02-10
Manufacturing Carbon Footprint : 0.8025923607
Distribution Carbon Footprint : 0.0098057608
Installation Carbon Footprint : 0.0003289177
Use Carbon Footprint : 0
End Of Life Carbon Footprint : 0.0088292298
Legacy WEEE Scope : Out
Scope Perimeter : At least in Europe
EOLI Availability Display : Yes
End Of Life Doc Ref : ENVEOLI2201004EN
Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
ROHS EUR In Scope : No
ROHS EUR Status : Compliant
ROHS EUR Conformity Date : 1930
ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
China ROHS In Scope : Yes
China ROHS Label : 1
Green Premium Status For Reporting : Green Premium product
With Recycled Cardboard : No
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Return Indicator : N
WD Status : 1 - GSC certified
Bezel Material : chromium plated metal
Compatibility Code : ZB4
Device Short Name : ZB4
Group Of Product : mushroom turn to release
Head Type : standard
Main Group : mushroom head
Mounting Diameter : 22 mm
Package Weight Lbs : 76.000 g
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : head for non-illuminated push-button
Range Of Product : Harmony XB4
Returnability : No
Sale Per Indivisible Quantity : 1
Shape Of Signaling Unit Head : round
Sustainable Packaging : No
Total Lifecycle Carbon Footprint : 0.8 kg CO2 eq.
Type Of Operator : latching
Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.821556269
Pep Code : ENVPEP2201004EN
Pep Verification Date : 2022-01-01
PCR Version : PCR-ed3-EN-2015 04 02
PSR Version : PSR-0005-ed2-EN-2016 03 29
Type Of Verification For The Pep : Independent internal review
Product Weight In G : 76
Functional Unit Description : Emergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60947-1 and EN/IEC 60204 -1 during 20 years.
Reference Lifetime In Y : 20
Energy Consumption On Product Lifetime In Kwh : 0
Nbr Of Units In Pkg : 1
Warranty In Months : 18
Energy Model Manufacturing A1 A3 : Energy model used: Pisek, Czech Republic
Energy Model Installation A5 : Electricity mix; AC; 120V; US
Energy Model Use B6 : Electricity mix; AC; 120V; US
Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
Components For Re Use Kg Total Life Cycle : 0
Components For Re Use Kg Manufacturing A1 A3 : 0
Components For Re Use Kg Distribution A4 : 0
Components For Re Use Kg Installation A5 : 0
Components For Re Use Kg Operational Energy Use B6 : 0
Components For Re Use Kg End Of Life C1 C4 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0000856232
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0000856225
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000004
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000002
Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 8.9681534753
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 8.7540388228
Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1305467752
Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0040415153
Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.0795263619
Exported Energy Mj By Energy Vector Total Life Cycle : 0.0000191778
Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000017707
Exported Energy Mj By Energy Vector Distribution A4 : 0
Exported Energy Mj By Energy Vector Installation A5 : 0.0000174072
Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
Hazardous Waste Disposed Of Kg Total Life Cycle : 1.5099729654
Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.4109254853
Hazardous Waste Disposed Of Kg Distribution A4 : 0
Hazardous Waste Disposed Of Kg Installation A5 : 0.0000000162
Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.099047464
Materials For Energy Recovery Kg Total Life Cycle : 0.0007425348
Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
Materials For Energy Recovery Kg Distribution A4 : 0
Materials For Energy Recovery Kg Installation A5 : 0
Materials For Energy Recovery Kg Operational Energy Use B6 : 0
Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0007425348
Materials For Recycling Kg Total Life Cycle : 0.0548732373
Materials For Recycling Kg Manufacturing A1 A3 : 0.0075062492
Materials For Recycling Kg Distribution A4 : 0
Materials For Recycling Kg Installation A5 : 0.0060466875
Materials For Recycling Kg Operational Energy Use B6 : 0
Materials For Recycling Kg End Of Life C1 C4 : 0.0413203006
Net Use Of Fresh Water M3 Total Life Cycle : 0.0067088653
Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0066991359
Net Use Of Fresh Water M3 Distribution A4 : 0.0000008775
Net Use Of Fresh Water M3 Installation A5 : 0.0000000359
Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000088159
Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.226670445
Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.225963181
Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.000348396
Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0000446458
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0003142222
Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000007443
Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000007438
Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000005
Radioactive Waste Disposed Of Kg Total Life Cycle : 0.000044484
Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0000437331
Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000002481
Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000088
Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.000000494
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 11.6705564308
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 11.4356919224
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1312463369
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0040662617
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0995519098
Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 11.759374114
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 11.5242078898
Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1314319349
Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0040729242
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.0996613651
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0884216261
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0881162179
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001847699
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000066715
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001139667
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.3789863494
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.3789863494
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 11.2917461616
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 11.0568816531
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1312463369
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0040662617
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0995519098
Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1141665623
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1141665623
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : -0.0257444603
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -0.0260498685
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001847699
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000066715
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001139667
Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
Use Of Renewable Secondary Fuels Mj Installation A5 : 0
Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
Use Of Secondary Materials Kg Total Life Cycle : 0.0005083006
Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0005083006
Use Of Secondary Materials Kg Distribution A4 : 0
Use Of Secondary Materials Kg Installation A5 : 0
Use Of Secondary Materials Kg Operational Energy Use B6 : 0
Use Of Secondary Materials Kg End Of Life C1 C4 : 0
Air Pollution M3 Total Life Cycle : 310.8027252599
Air Pollution M3 Manufacturing A1 A3 : 309.639323732
Air Pollution M3 Distribution A4 : 0.4171243582
Air Pollution M3 Installation A5 : 0.0131174953
Air Pollution M3 Operational Energy Use B6 : 0
Air Pollution M3 End Of Life C1 C4 : 0.7331596744
Water Pollution M3 Total Life Cycle : 70.8908773951
Water Pollution M3 Manufacturing A1 A3 : 68.395241077
Water Pollution M3 Distribution A4 : 1.6125134627
Water Pollution M3 Installation A5 : 0.0498830307
Water Pollution M3 Operational Energy Use B6 : 0
Water Pollution M3 End Of Life C1 C4 : 0.8332398247
Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.0021198065
Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.0001639319
Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0005305675
Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0020529042
Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0000447715
Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000013705
Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0
Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0000207603
Global Warming Kg Equivalent Co2 Total Life Cycle : 0.821556269
Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 0.8025923607
Global Warming Kg Equivalent Co2 Distribution A4 : 0.0098057608
Global Warming Kg Equivalent Co2 Installation A5 : 0.0003289177
Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 0
Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0088292298
Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0001584388
Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000031949
Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.0000001024
Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0
Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000021957
Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0005145823
Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000103121
Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000003331
Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0
Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.00000534

General Attributes

Product Or Component Type : head for non-illuminated push-button
Range Of Product : Harmony XB4

Environment Attributes

ROHS Exemption Information : Yes
China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=55983334&lang=en-us
Take Back : No
Reach Free SHVC : Yes
Recycled Metal Content At Cr Level : 0 %
China ROHS Regulation : X
Toxic Heavy Metal Free : Yes
Mercury Free : Yes
Carbon Footprint : 0.821556269
Circularity Profile : ENVEOLI2201004EN
Environmental Disclosure : ENVPEP2201004EN
EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Packaging Made With Recycled Cardboard : No
Packaging Without Single Use Plastic : No
Reach Free Of SVHC : Yes
Reach Regulation : Free of Substances of Very High Concern above the threshold
Pep Code : ENVPEP2201004EN
Pep Verification Date : 2022-01-01
PCR Version : PCR-ed3-EN-2015 04 02
PSR Version : PSR-0005-ed2-EN-2016 03 29
Type Of Verification For The Pep : Independent internal review

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months

Specifications

Country of Origin : Czechia

Head for non illuminated push button, Harmony XB4, yellow mushroom Ø 40 mm pushbutton Ø22 mm with marking

HEAD FOR NON ILLUMINATED PUSH

characters left.
