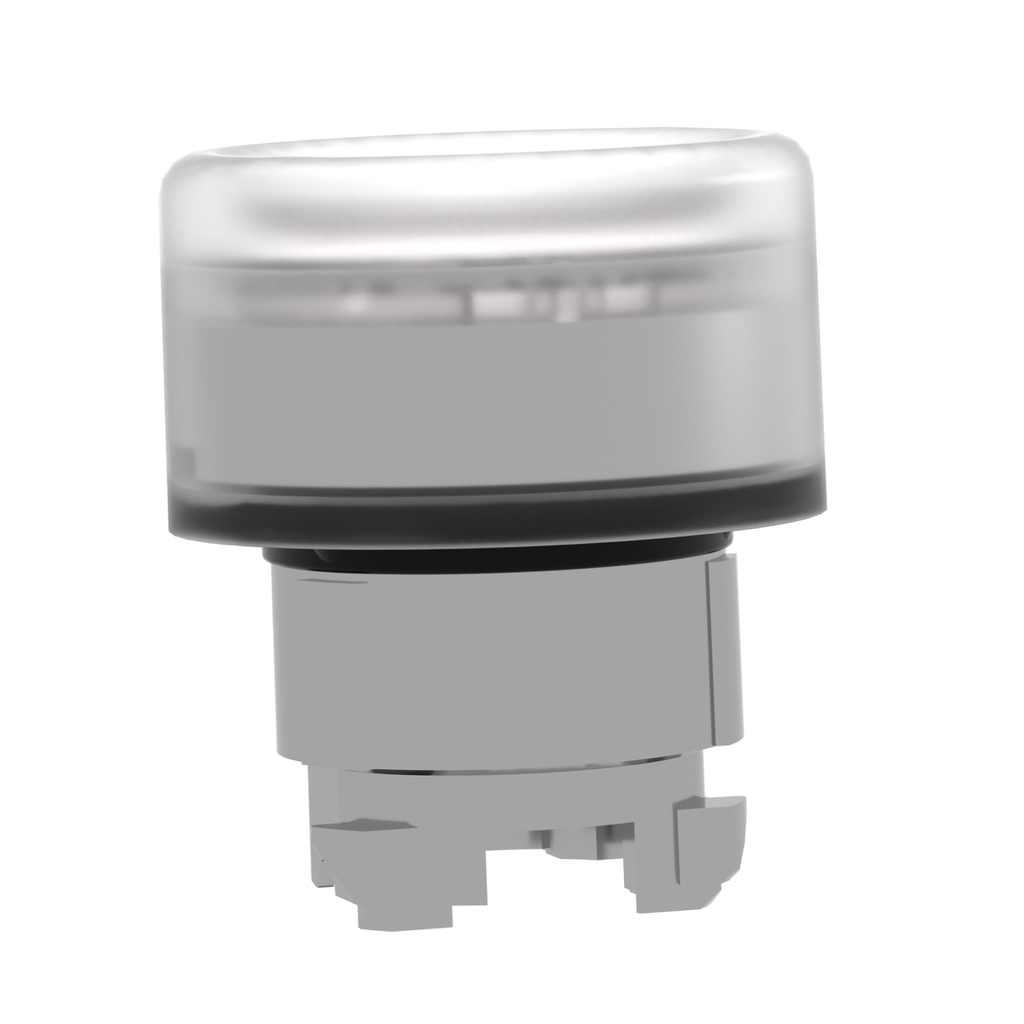

This Harmony XB4, flush white button head with clear silicone membrane booted operates with a spring return / impulse mechanism. This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cap Operator Or Lens Color : white, white
• Cad Overall Depth : 37 mm
• Cad Overall Height : 30 mm
• Cad Overall Width : 30 mm
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Bezel Material : chromium plated metal, chromium plated metal
• Customizable : 1, no
• Electrical Composition Code : C3 6 single front mounting, C4 6 single and double front mounting, C14 2 single front mounting
• Mounting Diameter : 22.5 mm
• Operator Profile : white flush, unmarked, flush
• Product Or Component Type : head for non-illuminated push-button
• Protective Treatment : TH
• Shape Of Signaling Unit Head : round
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Type Of Operator : spring return
• Cap Operator Or Lens Color : white, white
• Carbon Footprint Of The Distribution Phase A4 : 0.0043154448, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0417412811
• Carbon Footprint Of The Installation Phase A5 : 0.00661879, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.2339046263
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Certificate Agency : BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308035EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 21 %
• Average Percentage Of Recycled Plastic Content : 14 %
• Compatibility Code : ZB4
• Device Short Name : ZB4
• Gcr Bridge : ZB4BPCUST01
• Group Of Product : silicone boot push
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : push-button
• Marking : unmarked
• Mechanical Durability : 10000000 cycles
• Operator Additional Information : clear boot for insertion of protected legend within head
• Overvoltage Category : class I conforming to IEC 60536
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Range Of Product : Harmony XB4
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Warranty In Months : 18
• Operator Add Information : clear boot for insertion of protected legend within head
• Operator Profile 1 Operator Profile : flush
• Pep Code : ENVPEP2308035_V1-EN
• Database Version : 2022-01
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Offer Owner Code : 190786
• Pn : 1
• Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D] : -0.1133
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP66 IEC 60529, IP67
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Product Compatibility : not compatible with legend holder
• Take Back : No
• Recycled Metal Content At Cr Level : 21 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.2865801423
• Circularity Profile : ENVEOLI2308035EN
• Environmental Disclosure : ENVPEP2308035_V1-EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308035_V1-EN
• Pep Verification Date : 2023-08-01
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB4
• ETIM
• ETIM 8 : EC000221
• ETIM 9 : EC000221
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, France
• Overview Attributes
• Device Presentation : basic element
