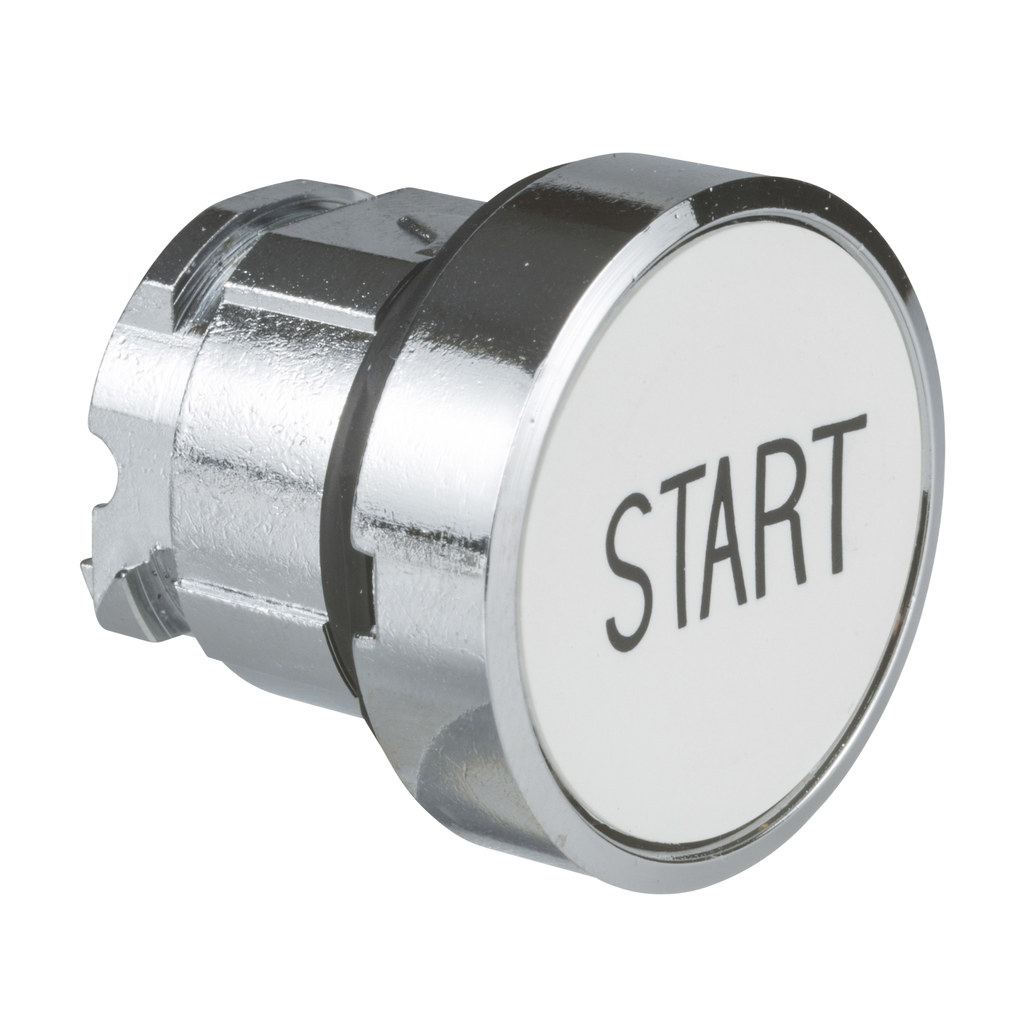

This Harmony XB4, flush white button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

• Overvoltage Category
• class I conforming to IEC 60536
• Electrical Composition Code
• C1 9 single front mounting
• C2 9 single and double front mounting
• C11 3 single front mounting
• C15 1 single front mounting
• IP Degree Of Protection
• IP66 IEC 60529
• IP67
• IP69
• IP69K
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0054586967
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.034425173
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.2 kg CO2 eq.
• 0.1929075246
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Customizable
• no
• 0
• Carbon Footprint Of The Distribution Phase A4
• 0.0035590651
• 0 kg CO2 eq.
• Operator Profile
• white flush, START black)
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=ZB4BA133_CAD
• Physical Attributes
• Cad Overall Depth : 28 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Color Of Marking : black
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-06
• Manufacturing Carbon Footprint : 0.1929075246
• Distribution Carbon Footprint : 0.0035590651
• Installation Carbon Footprint : 0.0054586967
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.034425173
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308035EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : chromium plated metal
• Color Of Marking : black
• Compatibility Code : ZB4
• Device Short Name : ZB4
• Group Of Product : flush push with marking
• Head Type : standard
• Main Group : push-button
• Mounting Diameter : 22.5 mm
• Package Weight Lbs : 28.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB4
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Type Of Operator : spring return
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.2363504592
• Pep Code : ENVPEP2308035EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 27.216
• Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 0
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.001770579
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0016349939
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.0000228911
• Acidification Ap Mole Of H Equiv Installation A5 : 0.0000216672
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0000910267
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0002424129
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.0011041205
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.0008614849
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0002426356
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0002664521
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0.2352456769
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.1920455231
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0035590651
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.0052159157
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.034425173
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0423123246
• Climate Change Total Kg Co2 Eq Total Life Cycle : 0.2363504592
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.1929075246
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.0035590651
• Climate Change Total Kg Co2 Eq Installation A5 : 0.0054586967
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.034425173
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0425770591
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0000261774
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0000261761
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000001
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000002
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000009
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000110798
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 4.8838579302
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 3.0142930676
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.0495828384
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0568178391
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 1.7631641851
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.8693946192
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 32.472265887
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 32.4009224199
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.0023949757
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.0372533125
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.0316951789
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.7248560285
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000000227
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000000219
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000002
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000001
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.0000000005
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000000197
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0000015932
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.000001548
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000013
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000000394
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000000044
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000001151
• Hazardous Waste Disposed Of Kg Total Life Cycle : 0.7401815324
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.7028378648
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.0000645274
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0372791402
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.872300242
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000001057
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000001038
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.000000002
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000001297
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000000769
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000763
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000006
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000021
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.0012576827
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0012576827
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0.2169043802
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.2162138477
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.0000086571
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0002559111
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0004259643
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0068734121
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.0003096887
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0002753594
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000107502
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000057383
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.0000178408
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000279024
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.0112657775
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.0029996035
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.008266174
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.0018854145
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0016002233
• Net Use Of Fresh Water M3 Distribution A4 : 0.0000003143
• Net Use Of Fresh Water M3 Installation A5 : 0.0000542673
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0002306096
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0004348426
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.1465365099
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.1253453381
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.000124761
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0177572293
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0033091815
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0934416
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000000635
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000000629
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000004
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000002
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000000061
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.0010309453
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0009215667
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.0000297936
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000115644
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0000680206
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0001014547
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0000362077
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0000334599
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000000889
• Radioactive Waste Disposed Of Kg Installation A5 : 0.0000023835
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000002755
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0000161801
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.003344275
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0029854628
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0001179392
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0000433099
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.000197563
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0003027239
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.8838579302
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.0142930676
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0495828384
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0568178391
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.7631641851
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.8693946192
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 4.9358492071
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 3.0620421352
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.0496506363
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0608953964
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 1.7632610391
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.8938341352
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0520006588
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0477716669
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000661675
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0040769116
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0000859128
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0244333819
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0864261352
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0864261352
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 4.797431795
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 2.9278669324
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0495828384
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0568178391
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 1.7631641851
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.8693946192
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0594425851
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0594425851
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0448369879
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : -0.0074422491
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -0.011671241
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000661675
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0040769116
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0000859128
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.0204032831
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.0000017316
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0000017316
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• General Attributes
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB4
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=658866&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.2363504592
• Circularity Profile : ENVEOLI2308035EN
• Environmental Disclosure : ENVPEP2308035EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308035EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic element
