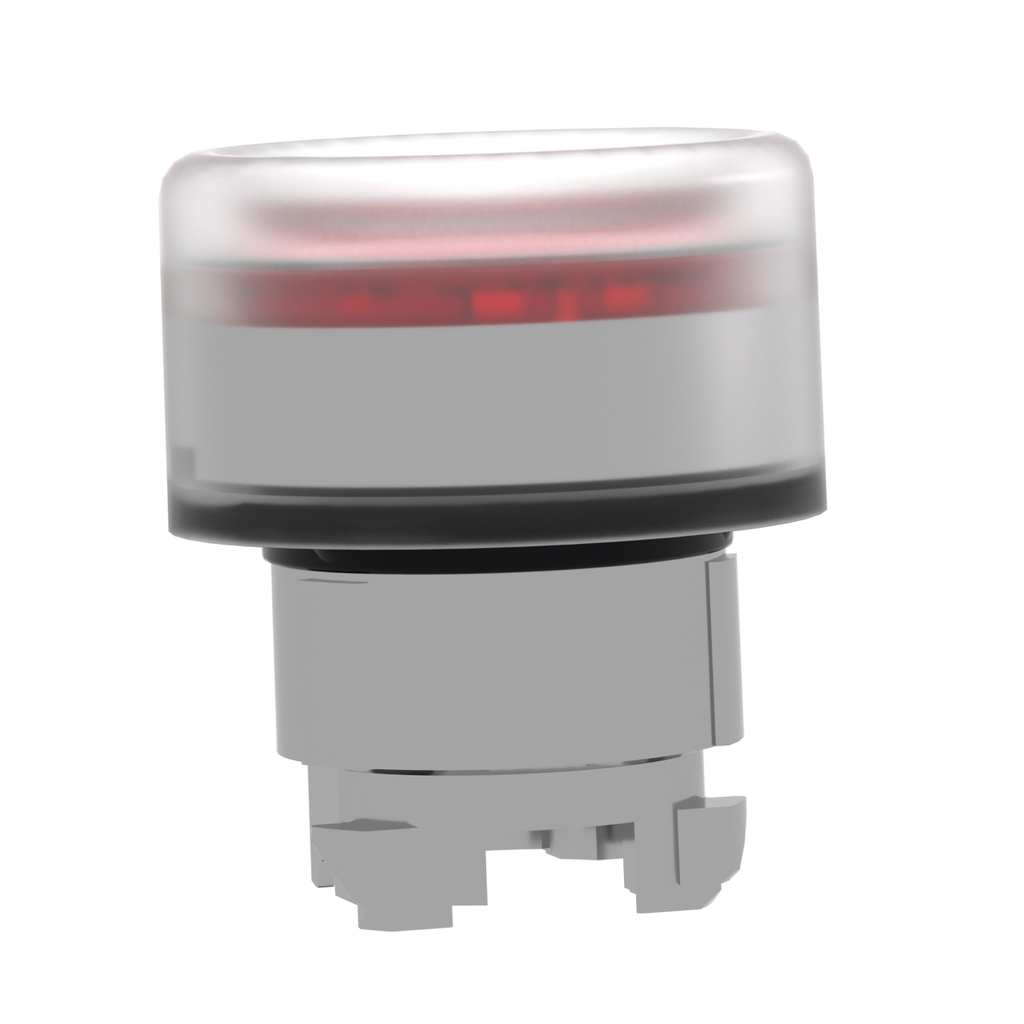

Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked

HEAD FOR NON ILLUMINATED PUSH

SQDZB4BP48 3389110888058
28.23 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for non illuminated push button, Harmony XB4, red flush, 22mm, spring return, clear boot, unmarked-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4, flush red button head with clear silicone membrane booted operates with a spring return / impulse mechanism. This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.
QTY
  • Product Description
  • Specifications
This Harmony XB4, flush red button head with clear silicone membrane booted operates with a spring return / impulse mechanism. This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Overvoltage Category : class I IEC 60536
    • Protective Treatment : TH
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ik Degree Of Protection : IK06 IEC 50102
    • Product Certifications : UL Listed || LROS (Lloyds register of shipping) || DNV || BV || CSA || GL
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Sustainable Offer Status : Green Premium product
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Height : 30 mm
    • Device Presentation : basic element
    • Cad Overall Depth : 37 mm
    • Cad Overall Width : 30 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
    • Mechanical Durability : 10000000 cycles
  • Specifications
    • Range Of Product : Harmony XB4
    • Type Of Operator : spring return
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 22 mm
    • Sale Per Indivisible Quantity : 1
    • Operator Profile : red flush, unmarked
    • Head Type : standard
    • Device Short Name : ZB4
    • Operator Additional Information : clear boot for insertion of protected legend within head
    • Product Compatibility : not compatible with legend holder
    • Bezel Material : chromium plated metal
    • Product Or Component Type : head for non-illuminated push-button
