SQUARE D

Head for key selector switch, Harmony XB4, 22mm, 2 position specific

HEAD FOR KEY SELECTOR SWITCH,

SQDZB4BG2K1132A 3389119023320
78.77 / EA
http://schema.org/OutOfStock

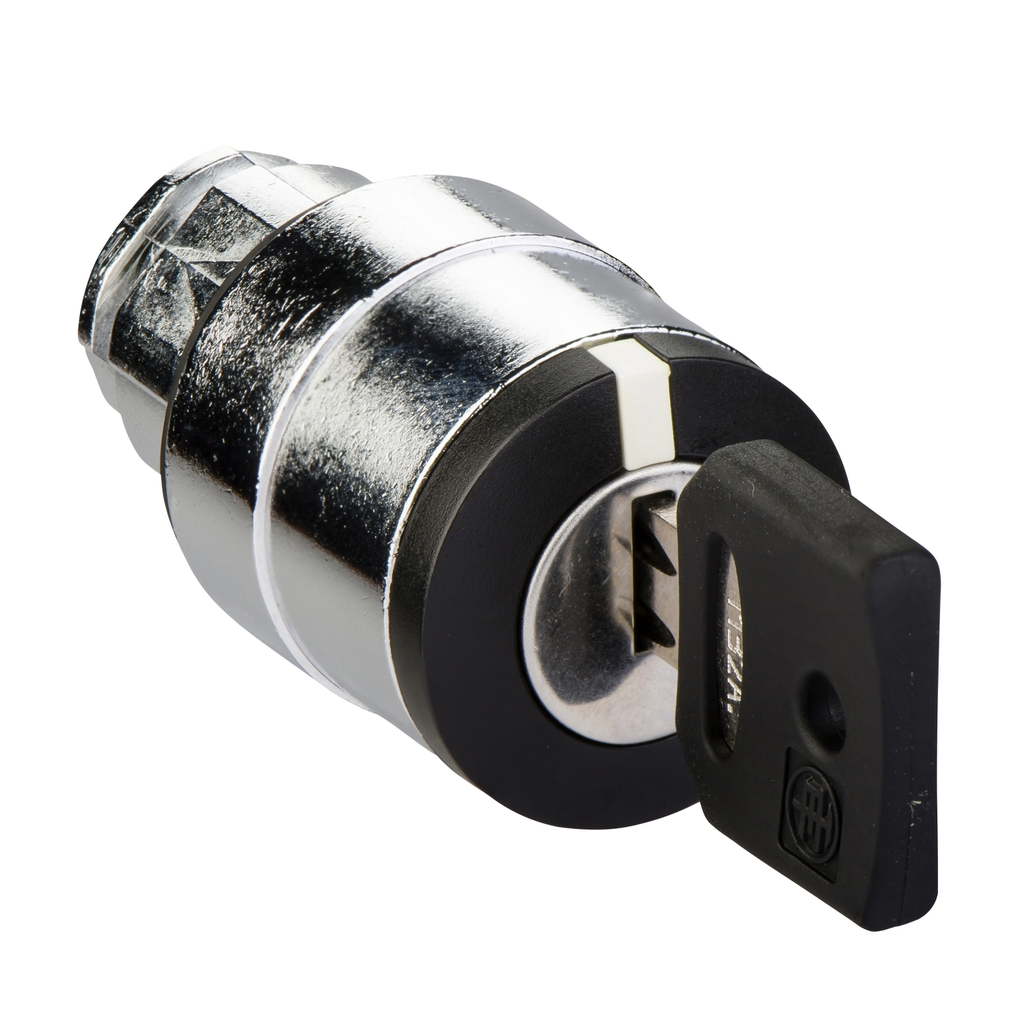

Mayer-DDS-Head for key selector switch, Harmony XB4, 22mm, 2 position specific-1
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class I IEC 60536
    • Nema Degree Of Protection : NEMA 13
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Protective Treatment : TH
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Mechanical Durability : 1000000 cycles
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB4
    • Operator Profile : key switch
    • Operator Position Information : 2 positions 90°
    • Mounting Diameter : 22 mm
    • Product Or Component Type : head for key selector switch
    • Shape Of Signaling Unit Head : round
    • Device Short Name : ZB4
    • Type Of Keylock : special key
    • Head Type : standard
