SQUARE D

Head for joystick controller, Harmony XB4, Ø22 mm 2 direction stay put

HEAD FOR JOYSTICK CONTROLLER,

SQDZD4PA12 3389110119831
180.30 / EA
http://schema.org/OutOfStock

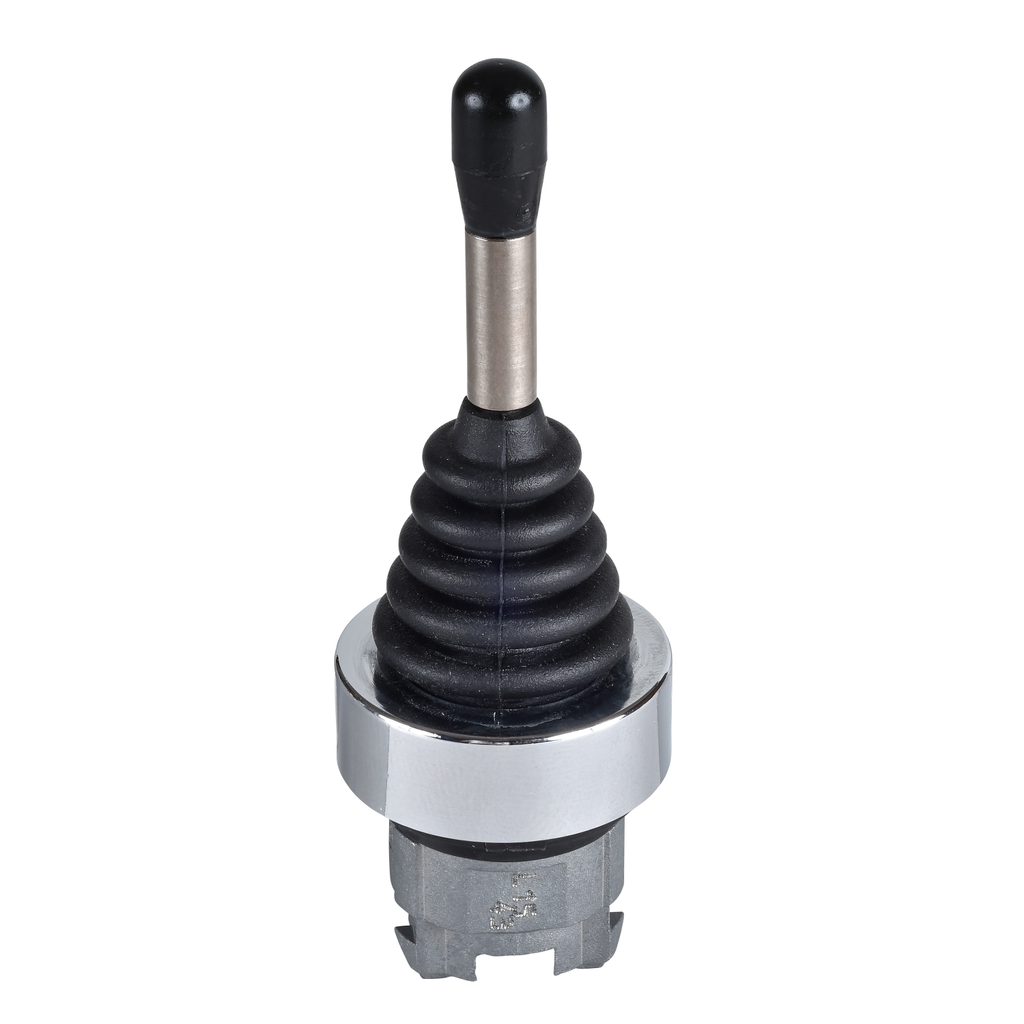

Mayer-DDS-Head for joystick controller, Harmony XB4, Ø22 mm 2 direction stay put-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.022 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4 head for joystick controller operates with 2 direction stay-put mechanism. It has a chromium-plated metal bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
QTY
  • Product Description
  • Specifications
This Harmony XB4 head for joystick controller operates with 2 direction stay-put mechanism. It has a chromium-plated metal bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Product Certifications : UL Listed || CSA || DNV || GL || LROS (Lloyds register of shipping) || BV
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : IEC 60947-1 || IEC 60947-5-4 || UL 508 || IEC 60947-5-5 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ik Degree Of Protection : IK03 IEC 50102
    • Protective Treatment : TH
    • Electrical Shock Protection Class : class I IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP110718EN
    • Rohs Exemption Information : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Sustainable Offer Status : Green Premium product
  • Complementary
    • Operator Position Information : 3 positions
    • Device Presentation : basic element
    • Net Weight : 0.022 kg
    • Mechanical Durability : 1000000 cycles
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
  • Specifications
    • Bezel Material : chromium plated metal
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 22 mm
    • Device Short Name : ZB4
    • Product Or Component Type : head for joystick controller
    • Operator Direction Information : 2 directions
    • Type Of Operator : stay put
    • Operator Profile : 54 mm long operating shaft
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB4
