SQUARE D

Head for illuminated push button, Harmony XB5, square white flush, 22mm, universal LED, push to release, unmarked

HEAD FOR ILLUMINATED PUSH BUTT

SQDZB5CH313 3389110177343
21.71 / EA
http://schema.org/OutOfStock

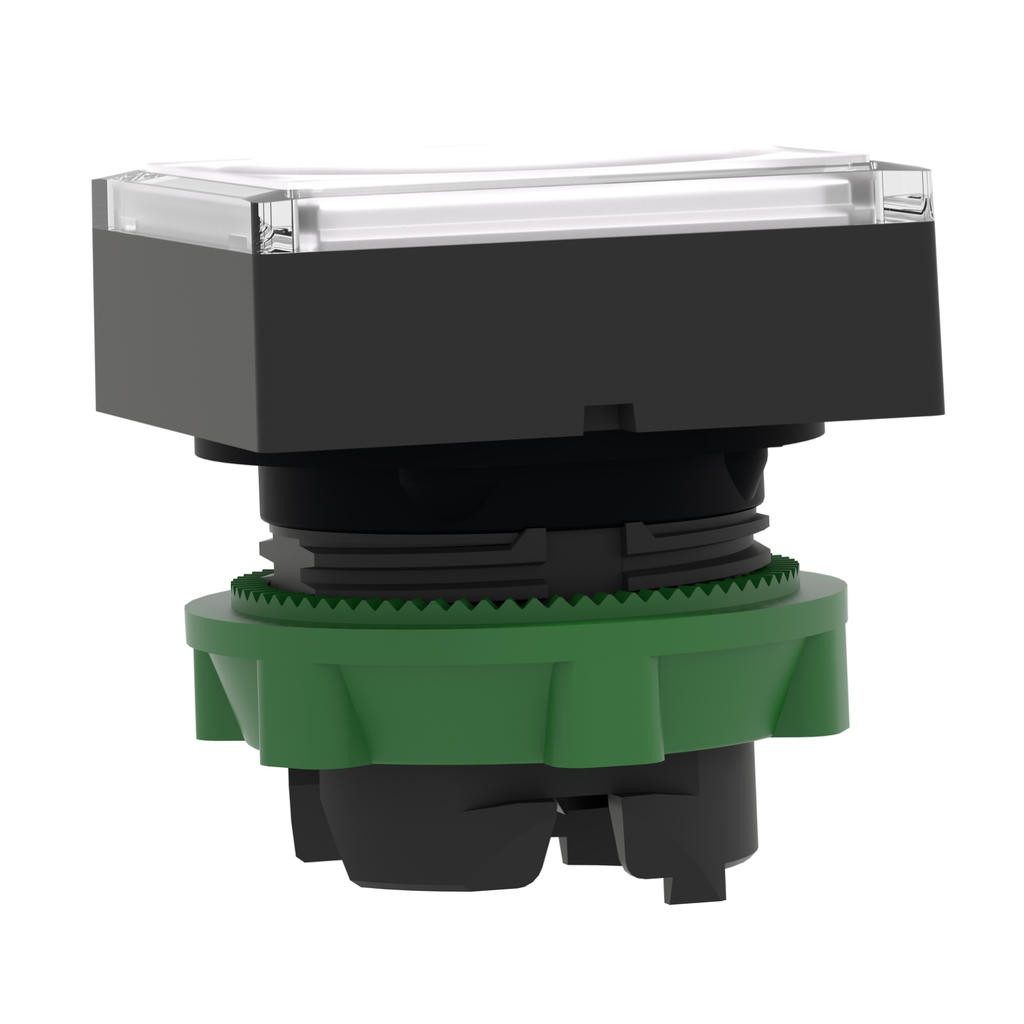

Mayer-DDS-Head for illuminated push button, Harmony XB5, square white flush, 22mm, universal LED, push to release, unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.018 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This white flush illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This white flush illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Electrical Shock Protection Class : class II IEC 60536
    • Product Certifications : BV || LROS (Lloyds register of shipping) || GL || DNV || CSA || UL Listed
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK05 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Standards : IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-1
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Sustainable Offer Status : Green Premium product
    • Reach Free Of Svhc : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Width : 30 mm
    • Mechanical Durability : 5000000 cycles
    • Net Weight : 0.018 kg
    • Cad Overall Depth : 29 mm
    • Cad Overall Height : 30 mm
    • Device Presentation : basic element
    • Electrical Composition Code : M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
  • Specifications
    • Bezel Material : dark grey plastic
    • Mounting Diameter : 22 mm
    • Operator Profile : white flush, unmarked
    • Type Of Operator : push-push
    • Device Short Name : ZB5
    • Product Compatibility : universal LED
    • Sale Per Indivisible Quantity : 1
    • Head Type : standard
    • Shape Of Signaling Unit Head : square
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for illuminated push-button
