SQUARE D

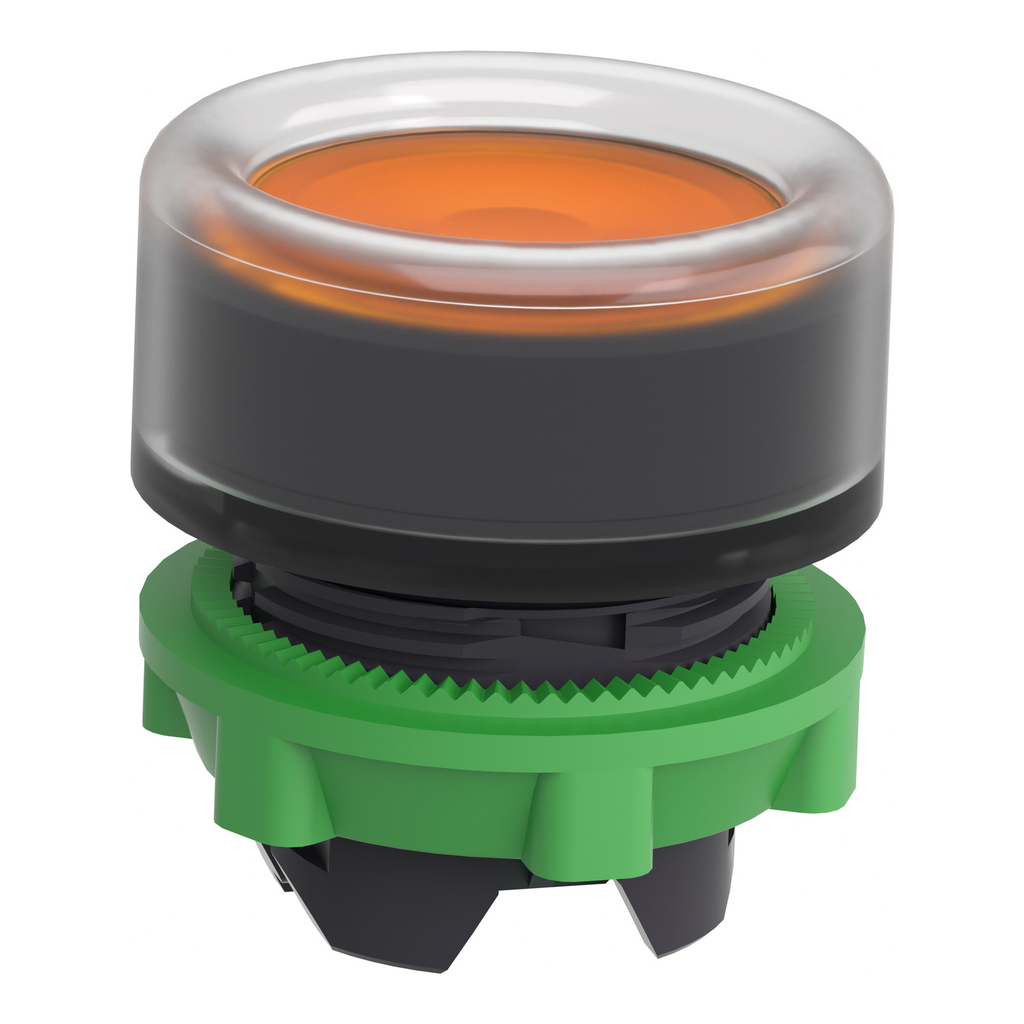

Head for illuminated push button, Harmony XB5, orange flush, 22mm, universal LED, spring return, clear boot, unmarked

HEAD FOR ILLUMINATED PUSH BUTT

SQDZB5AW553 3389110924060
27.13 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, orange flush, 22mm, universal LED, spring return, clear boot, unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.019 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This orange flush button head with clear boot provides an ergonomic interface for controlling your machines. It provides also a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This orange flush button head with clear boot provides an ergonomic interface for controlling your machines. It provides also a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TC
    • Product Certifications : GL || DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || BV
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ik Degree Of Protection : IK05 EN 50102
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Standards : UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || GB 14048.5 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Overvoltage Category : class II IEC 60536
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Depth : 37 mm
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Mechanical Durability : 10000000 cycles
    • Group Of Product : flush push integral LED
    • Net Weight : 0.019 kg
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cap/Operator Or Lens Colour : orange
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Height : 30 mm
    • Device Presentation : basic sub-assemblies
    • Main Group : illum push-button
    • Cad Overall Width : 30 mm
    • Marking : unmarked
  • Specifications
    • Type Of Operator : spring return
    • Head Type : standard
    • Mounting Diameter : 22 mm
    • Operator Additional Information : clear boot
    • Product Compatibility : universal LED
    • Range Of Product : Harmony XB5
    • Shape Of Signaling Unit Head : round
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
    • Product Or Component Type : head for illuminated push-button
    • Bezel Material : dark grey plastic
    • Operator Profile : orange flush, unmarked
