SQUARE D

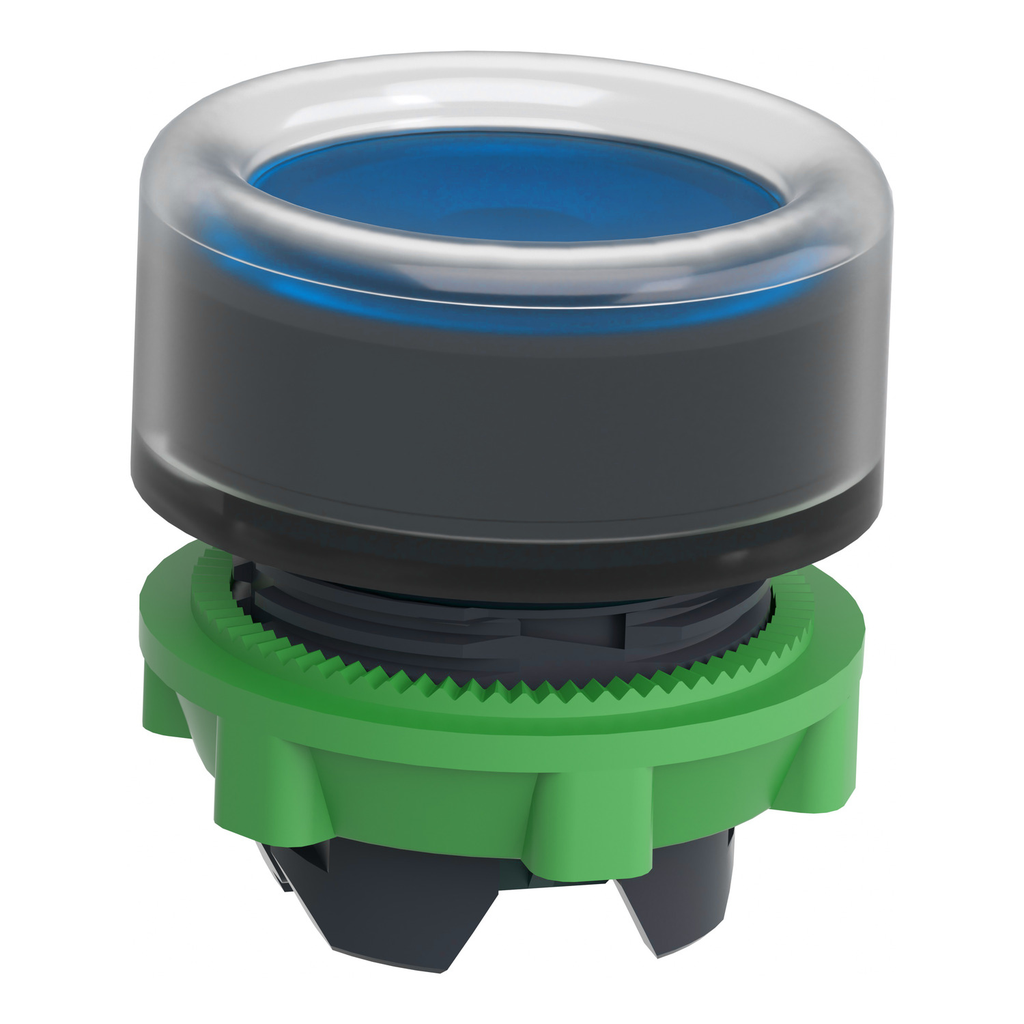

Head for illuminated push button, Harmony XB5, blue flush, 22mm, universal LED, spring return, unmarked

HEAD FOR ILLUMINATED PUSH BUTT

SQDZB5AW563 3389110924077
27.13 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, blue flush, 22mm, universal LED, spring return, unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.019 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This blue flush button head with clear boot provides an ergonomic interface for controlling your machines. It provides also a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This blue flush button head with clear boot provides an ergonomic interface for controlling your machines. It provides also a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Product Certifications : CSA || BV || UL Listed || DNV || LROS (Lloyds register of shipping) || GL
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Operation : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || GB 14048.5 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1
    • Ik Degree Of Protection : IK05 EN 50102
    • Protective Treatment : TC
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Circularity Profile : ENVEOLI1710010EN
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Sustainable Offer Status : Green Premium product
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Device Presentation : basic sub-assemblies
    • Cad Overall Height : 30 mm
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Cad Overall Width : 30 mm
    • Group Of Product : flush push integral LED
    • Main Group : illum push-button
    • Net Weight : 0.019 kg
    • Cad Overall Depth : 37 mm
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Marking : unmarked
    • Mechanical Durability : 10000000 cycles
    • Cap/Operator Or Lens Colour : blue
  • Specifications
    • Mounting Diameter : 22 mm
    • Range Of Product : Harmony XB5
    • Operator Profile : blue flush, unmarked
    • Type Of Operator : spring return
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
    • Operator Additional Information : clear boot
    • Shape Of Signaling Unit Head : round
    • Head Type : standard
    • Product Or Component Type : head for illuminated push-button
    • Product Compatibility : universal LED
    • Bezel Material : dark grey plastic
