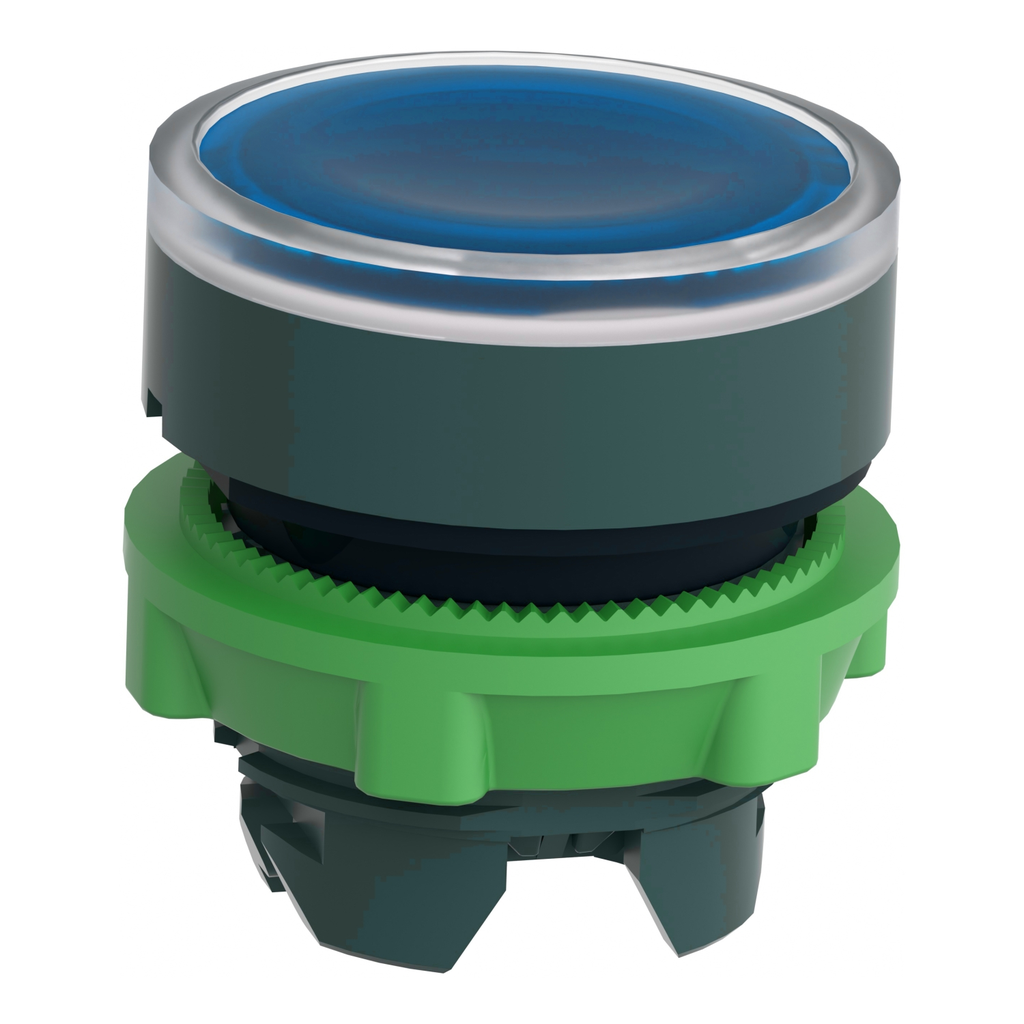

This blue flush illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very dist

• Electrical Composition Code
• M5 2 single front mounting integral LED
• M6 2 single front mounting integral LED and transforme
• IP Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• IP69 IEC 60529
• IP69K ISO 20653
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0046405318
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0318055536
• Station Name
• XALD 1...5 cut-outs
• XALK 2...5 cut-outs
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.1 kg CO2 eq.
• 0.1310572232
• Electrical Shock Protection Class
• class II conforming to IEC 60536
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Customizable
• no
• 1
• Carbon Footprint Of The Distribution Phase A4
• 0.0061458246
• 0 kg CO2 eq.
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Operator Profile
• blue flush, unmarked
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AH063_CAD
• Physical Attributes
• Cad Overall Depth : 30 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Important Information Attributes
• B2B Bullet Point 1 : Quick and easy assembly and disassembly
• B2B Bullet Point 2 : Robustness to withstand harsh environments
• B2B Bullet Point 3 : Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
• B2B Bullet Point 4 : Excellent mechanical connection with operator head
• B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications
• B2B Bullet Point 6 : Large set of accessories to customize your panels
• Local Data Status : Publishable
• Local Publishable Date : 7/9/2025
• Manufacturing Carbon Footprint : 0.131057223
• Distribution Carbon Footprint : 0.006145825
• Installation Carbon Footprint : 0.004640532
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.031805554
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2303008EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : dark grey plastic
• Compatibility Code : ZB5
• Device Short Name : ZB5
• GCR Bridge : ZB5AHCUST02
• Group Of Product : flush push-push illum LED
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : illum push-button
• Mounting Diameter : 22 mm
• Package Weight Lbs : 18.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Type Of Operator : push-push
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.173649133
• Relationship Type : Compatible relationship
• Accessories : ZB5AZ905
• Pep Code : ENVPEP2303008EN
• Pep Verification Date : 8/1/2023
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 17.6
• Functional Unit Description : XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs a
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 0
• Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Recyclability Potential In : 29
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.000970047
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.000894175
• Acidification Ap Mole Of H Equiv Distribution A4 : 2.68203E-05
• Acidification Ap Mole Of H Equiv Installation A5 : 3.4603E-06
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 4.55908E-05
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.000123889
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.001325149
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.001321418
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 3.7318E-06
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -4.99154E-05
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0.172326996
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.129738686
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.006145825
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.004636932
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.031805554
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.021300005
• Climate Change Total Kg Co2 Eq Total Life Cycle : 0.173649133
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.131057223
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.006145825
• Climate Change Total Kg Co2 Eq Installation A5 : 0.004640532
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.031805554
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.021349957
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000129262
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000129262
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 5E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -6.0531E-06
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 2.737325165
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 1.831057019
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.074648121
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.005801565
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.825818461
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.454602915
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 41.97571064
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 41.92859115
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.025171015
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.004764285
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.017184188
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.420433444
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 8.1E-09
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 7.7E-09
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 1E-10
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 2E-10
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -1.06E-08
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.002213748
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.002213748
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 1.4666E-06
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 1.3846E-06
• Freshwater Eutrophication Kg P Eq Distribution A4 : 7E-10
• Freshwater Eutrophication Kg P Eq Installation A5 : 7.92E-08
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 2.2E-09
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -3.87E-08
• Hazardous Waste Disposed Of Kg Total Life Cycle : 0.244545087
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.230370545
• Hazardous Waste Disposed Of Kg Distribution A4 : 5.0932E-06
• Hazardous Waste Disposed Of Kg Installation A5 : 3.0466E-06
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.014166403
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.47449348
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 3.34E-08
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 3.34E-08
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -6.97E-08
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 6.4E-09
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 6.1E-09
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 3E-10
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -1.1E-09
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.002506976
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.002506976
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0.289665338
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.289380721
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 1.36304E-05
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 1.82732E-05
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.000252714
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.003422527
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.000193324
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.000170136
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 1.23331E-05
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 1.8206E-06
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 9.0345E-06
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -1.22426E-05
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.00389442
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 4.61353E-05
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.003848284
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.000324481
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.000175771
• Net Use Of Fresh Water M3 Distribution A4 : 7.2619E-06
• Net Use Of Fresh Water M3 Installation A5 : 1.9809E-06
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000139468
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.000207654
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.171612783
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.160236052
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 6.2574E-06
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.00459103
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.006779443
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.016720225
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 3.19E-08
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 2.64E-08
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 5.4E-09
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 1E-10
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -3.7E-09
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.00066601
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.000583847
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 4.37718E-05
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 4.5955E-06
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 3.37964E-05
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -5.00639E-05
• Radioactive Waste Disposed Of Kg Total Life Cycle : 3.73807E-05
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 3.56653E-05
• Radioactive Waste Disposed Of Kg Distribution A4 : 1.2223E-06
• Radioactive Waste Disposed Of Kg Installation A5 : 1.846E-07
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 3.085E-07
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.000007076
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.002041335
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.001789701
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.00013364
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 1.36858E-05
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.000104309
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.000141561
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.737325165
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.831057019
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.074648121
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.005801565
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.825818461
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.454602915
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 2.797866285
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 1.891268729
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.074652621
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.00599147
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.825953465
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.458473025
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.060544221
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.060234211
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 5.001E-07
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000189847
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.000119663
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.00387074
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.233421631
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.233421631
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 2.503903534
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.597635387
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.074648121
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.005801565
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.825818461
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.454602915
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.077582204
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.077582204
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.000830454
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : -0.017036633
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -0.017346643
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 5.001E-07
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000189847
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.000119663
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.003040286
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=655376&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.173649133
• Circularity Profile : ENVEOLI2303008EN
• Environmental Disclosure : ENVPEP2303008EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2303008EN
• Pep Verification Date : 8/1/2023
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic element
