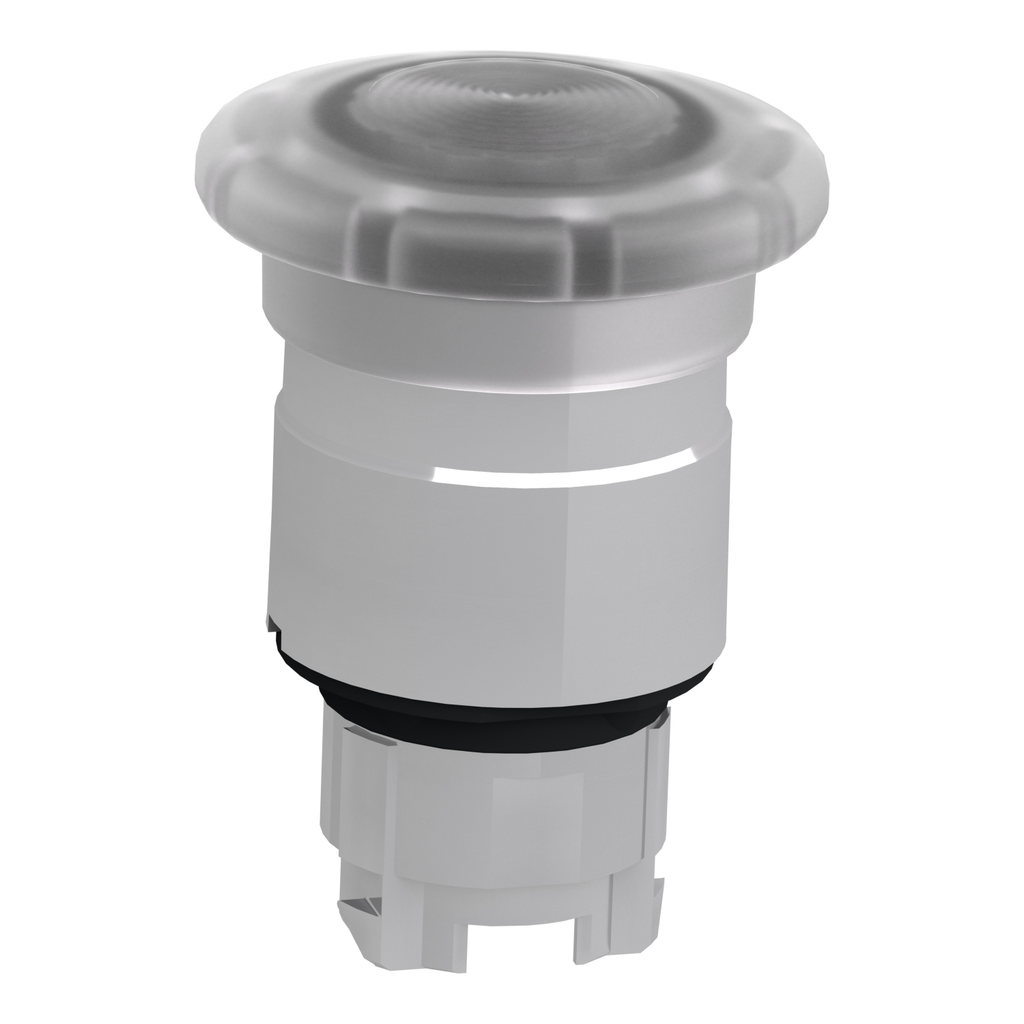

Head for illuminated push button, Harmony XB4, white, mushroom 40mm, 22mm, latching, push pull to release, universal LED, unmarked

HEAD FOR ILLUMINATED PUSH BUTT

SQDZB4BW613 ZB4BW613 3389110666595
44.09 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB4, white, mushroom 40mm, 22mm, latching, push pull to release, universal LED, unmarked-2
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Head Type: Standard
  • Warranty Length: 18 mth
This Harmony XB4, illuminated 40mm mushroom white button head operates with a latched push-pull mechanism. This illuminated 40mm mushroom shape push button head for universal LED is ideal for situations where quick actions are required for a process or m
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XB4, illuminated 40mm mushroom white button head operates with a latched push-pull mechanism. This illuminated 40mm mushroom shape push button head for universal LED is ideal for situations where quick actions are required for a process or m
  • Cap Operator Or Lens Color
    • white
  • Overvoltage Category
    • class I conforming to IEC 60536
  • Electrical Composition Code
    • M6 2 single front mounting integral LED and transformer
    • M6 2 single front mounting int
  • Carbon Footprint Of The Installation Phase A5
    • 0.0081594737
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.0924621345
  • Standards
    • UL 508
    • IEC 60947-5-5
    • CSA C22.2 No 14
    • IEC 60947-5-4
    • IEC 60947-1
    • JIS C8201-5-1
    • IEC 60947-5-1
    • JIS C8201-1
  • Ip Degree Of Protection
    • IP66 IEC 60529
    • IP69
    • IP69K
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.4 kg CO2 eq.
    • 0.4176942982
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Customizable
    • no
    • 0
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0088778363
    • 0 kg CO2 eq.
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Operator Profile
    • white mushroom Ø 40 mm, unmarked
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Product Certifications
    • BV
    • CSA
    • DNV
    • LROS (Lloyds register of shipping)
    • UL Listed
  • Physical Attributes
    • Cad Overall Depth : 53 mm
    • Cad Overall Height : 40 mm
    • Cad Overall Width : 40 mm
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Quick and easy assembly and disassembly
    • B2B Bullet Point 2 : Robustness to withstand harsh environments
    • B2B Bullet Point 3 : Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • B2B Bullet Point 4 : Excellent mechanical connection with operator head
    • B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications
    • B2B Bullet Point 6 : Large set of accessories to customize your panels
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-12
    • ETIM 10 : EC001038
    • Manufacturing Carbon Footprint : 0.4176942982
    • Distribution Carbon Footprint : 0.0088778363
    • Installation Carbon Footprint : 0.0081594737
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0.0924621345
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1808008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : chromium plated metal
    • Compatibility Code : ZB4
    • Device Short Name : ZB4
    • Group Of Product : mushroom push-pull illuminated
    • Head Type : standard
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Main Group : mushroom head
    • Marking : unmarked
    • Mechanical Durability : 500000 cycles
    • Mounting Diameter : 22.5 mm
    • Package Weight Lbs : 57.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Protective Treatment : TH
    • Range Of Product : Harmony XB4
    • Reset : push-pull
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
    • Type Of Operator : latching
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.5271937427
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB4
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=656144&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.5271937427
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI1808008EN
    • Environmental Disclosure : ENVPEP1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : universal LED
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic sub-assemblies
