SQUARE D

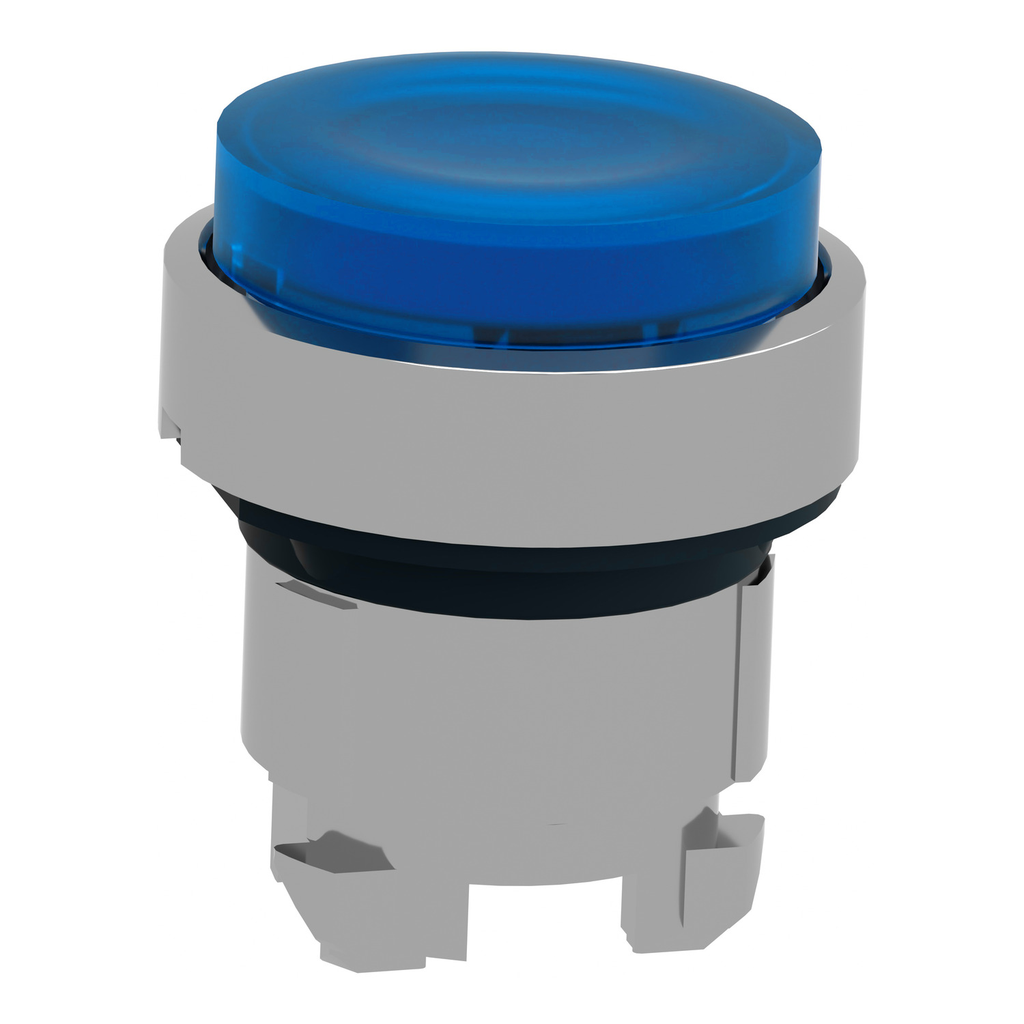

Head for illuminated push button, Harmony XB4, metal, blue projecting, 22mm, push-push, universal LED, unmarked

HEAD FOR ILLUMINATED PUSH BUTT

SQDZB4BH63 3389110890419
17.16 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB4, metal, blue projecting, 22mm, push-push, universal LED, unmarked-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.026 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4, illuminated projecting blue button head operates with latched push-push mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
QTY
  • Product Description
  • Specifications
This Harmony XB4, illuminated projecting blue button head operates with latched push-push mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
  • Environment
    • Ip Degree Of Protection : IP69 || IP69K || IP67 IEC 60529
    • Overvoltage Category : class I IEC 60536
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Electrical Shock Protection Class : class I IEC 60536
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK05 IEC 50102
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : GL || BV || DNV || CSA || LROS (Lloyds register of shipping) || UL Listed
    • Standards : IEC 60947-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Sustainable Offer Status : Green Premium product
    • Environmental Disclosure : ENVPEP1808008EN
    • Toxic Heavy Metal Free : Yes
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Circularity Profile : ENVEOLI1808008EN
    • Reach Free Of Svhc : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Height : 29 mm
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Width : 29 mm
    • Net Weight : 0.026 kg
    • Cad Overall Depth : 33 mm
    • Electrical Composition Code : M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
    • Mechanical Durability : 500000 cycles
  • Specifications
    • Product Or Component Type : head for illuminated push-button
    • Head Type : standard
    • Range Of Product : Harmony XB4
    • Device Short Name : ZB4
    • Mounting Diameter : 22 mm
    • Type Of Operator : push-push
    • Product Compatibility : universal LED
    • Shape Of Signaling Unit Head : round
    • Operator Profile : blue projecting, unmarked
    • Bezel Material : chromium plated metal
    • Sale Per Indivisible Quantity : 1
