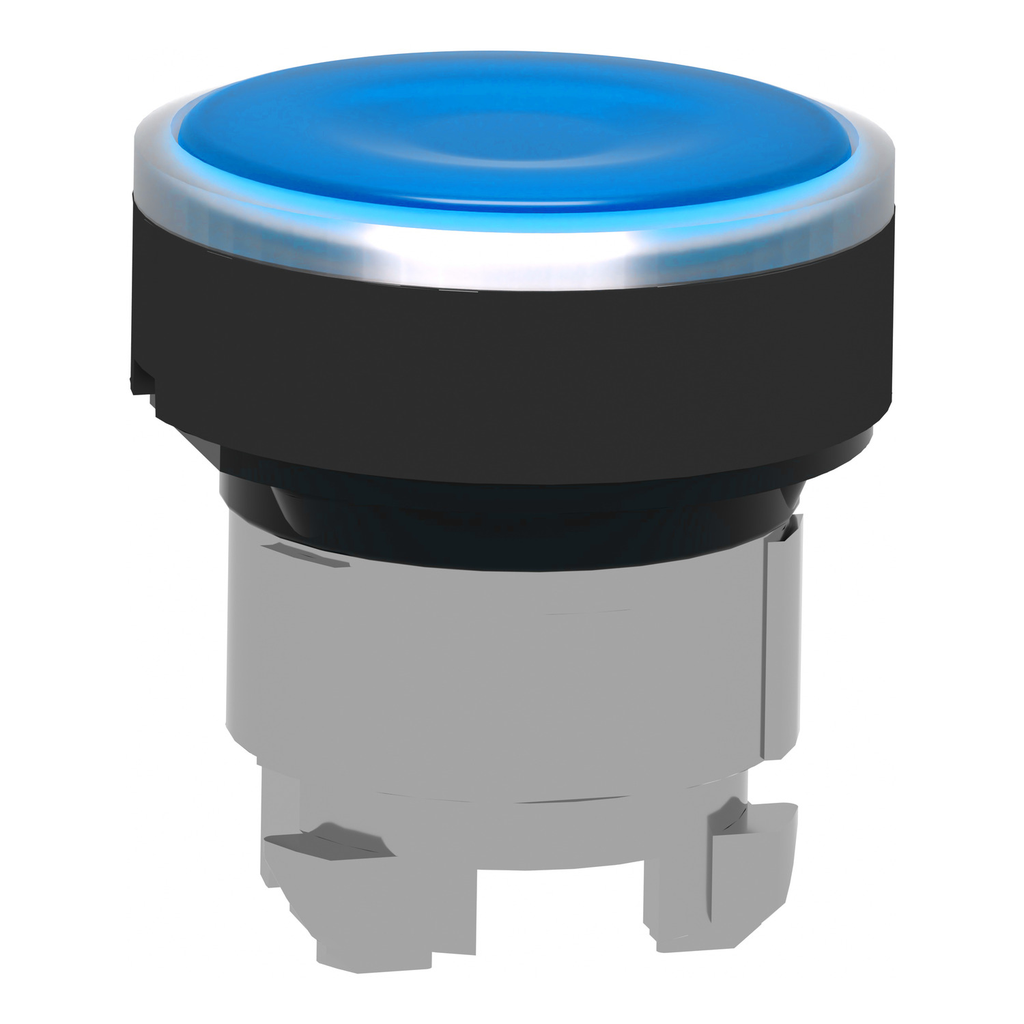

Head for illuminated push button, Harmony XB4, blue flush, 22mm, universal LED, spring return, plain, unmarked

HEAD FOR ILLUMINATED PUSH BUTT

SQDZB4BW3637 ZB4BW3637 3389110840094
18.88 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB4, blue flush, 22mm, universal LED, spring return, plain, unmarked-2
  • Bezel Material: Metal
  • Head Type: Standard
  • Warranty Length: 18 mth
This Harmony XB4, plain lens illuminated flush blue button head for integral LED operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
QTY
  • Product Description
  • Specifications
This Harmony XB4, plain lens illuminated flush blue button head for integral LED operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
  • Physical Attributes
    • Cad Overall Depth : 30 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
  • Important Information Attributes
    • Customizable : no, 1
    • Electrical Composition Code : M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED
    • Operator Profile : blue flush, unmarked, blue flush, unmarked, blue flush, unmarked
    • Overvoltage Category : class I conforming to IEC 60536, class I conforming to IEC 60536
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Carbon Footprint Of The Distribution Phase A4 : 0.0041589864, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0433155945
    • Carbon Footprint Of The Installation Phase A5 : 0.0038224561, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.1956766082
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1808008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : black metal
    • Compatibility Code : ZB4
    • Device Short Name : ZB4
    • GCR Bridge : ZB4BWCUST05
    • Group Of Product : flush push integral LED
    • Head Type : standard
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Main Group : illum push-button
    • Mounting Diameter : 22.5 mm
    • Package Weight Lbs : 26.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
    • Type Of Operator : spring return
    • Pep Code : ENVPEP1808008EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529, IP67, IP69, IP69K
    • Nema Degree Of Protection : NEMA 13, NEMA 4X
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.2469736452
    • Circularity Profile : ENVEOLI1808008EN
    • Environmental Disclosure : ENVPEP1808008EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pep Code : ENVPEP1808008EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB4
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : basic sub-assemblies
