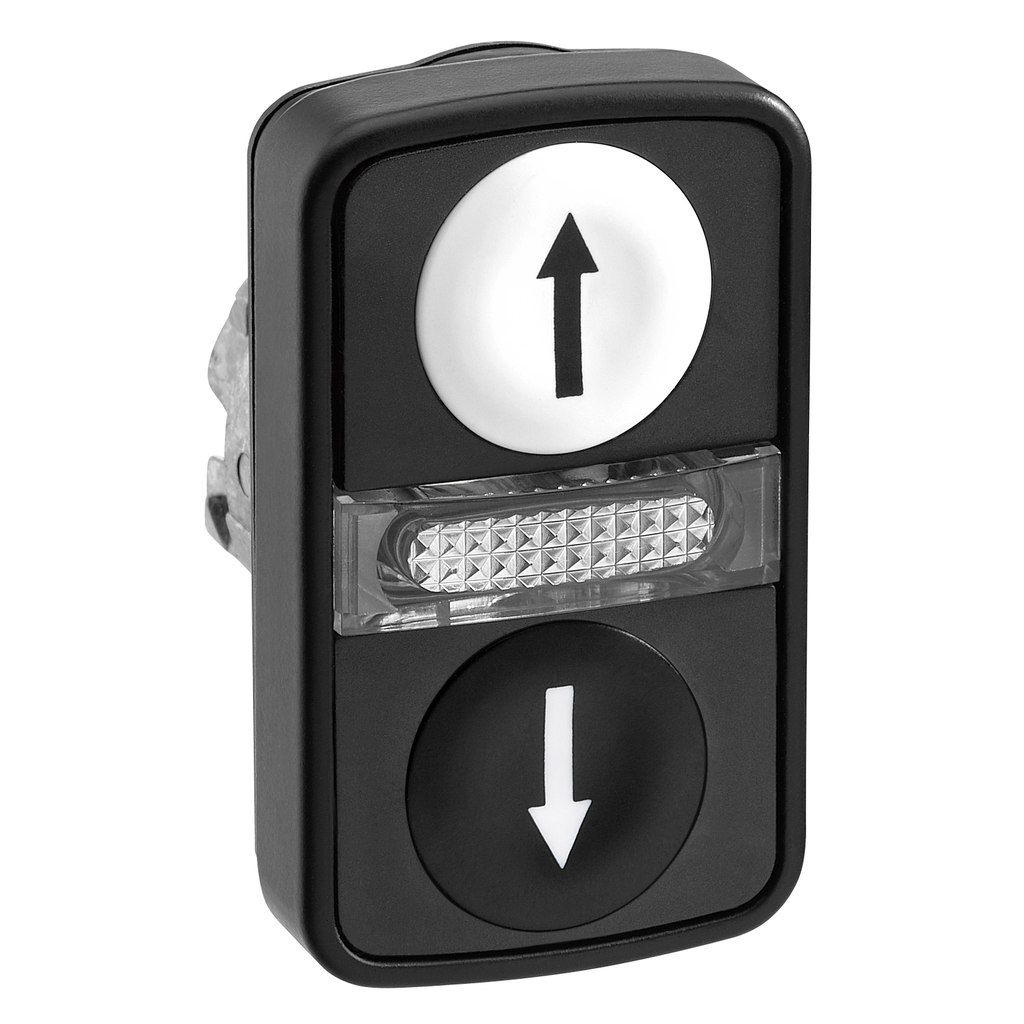

This Harmony XB4, illuminated double head has 1 white, black button and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "up arrow" and "down arrow"symbols. This double head provides a versatile interface

• Electrical Composition Code
• M1 6 single front mounting integral LED
• M2 6 single and double front mounting integral LED
• M2
• Carbon Footprint Of The Installation Phase A5
• 0.0082329825
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0932951267
• Standards
• IEC 60947-5-4
• UL 508
• IEC 60947-5-5
• IEC 60947-5-1
• CSA C22.2 No 14
• JIS C8201-5-1
• IEC 60947-1
• JIS C8201-1
• Ip Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• IP69
• IP69K
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.4 kg CO2 eq.
• 0.4214573099
• Electrical Shock Protection Class
• class I conforming to IEC 61140
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0
• Customizable
• no
• 0
• Carbon Footprint Of The Distribution Phase A4
• 0.0089578168
• 0 kg CO2 eq.
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Color Of Marking
• black marking when white caps
• white marking when green, red or black caps
• black/white
• Operator Profile
• white flush, up arrow black)
• black flush, down arrow white)
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• Product Certifications
• CSA
• LROS (Lloyds register of shipping)
• BV
• UL Listed
• DNV

• Physical Attributes
• Cad Overall Depth : 30 mm
• Cad Overall Height : 50 mm
• Cad Overall Width : 30 mm
• Cap Operator Or Lens Color : white/black
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-12
• ETIM 10 : EC000221
• Manufacturing Carbon Footprint : 0.4214573099
• Distribution Carbon Footprint : 0.0089578168
• Installation Carbon Footprint : 0.0082329825
• Use Carbon Footprint : 0
• End Of Life Carbon Footprint : 0.0932951267
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1808008EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : black metal
• Cap Operator Or Lens Color : white/black
• Compatibility Code : ZB4
• Device Short Name : ZB4
• Group Of Product : flush/flush illum marked
• Head Type : standard
• Main Group : illum double head
• Marking : up arrow/down arrow
• Mechanical Durability : 1000000 cycles
• Mounting Diameter : 22 mm
• Operators Description : white ''up arrow'' - black ''down arrow''
• Package Weight Lbs : 52.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for illuminated double-headed push-button
• Protective Treatment : TH
• Range Of Product : Harmony XB4
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : rectangular
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
• Type Of Operator : spring return
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.5319432359
• General Attributes
• Product Or Component Type : head for illuminated double-headed push-button
• Range Of Product : Harmony XB4
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=3743057&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.5319432359
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI1808008EN
• Environmental Disclosure : ENVPEP1808008EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : integral LED
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic sub-assemblies
