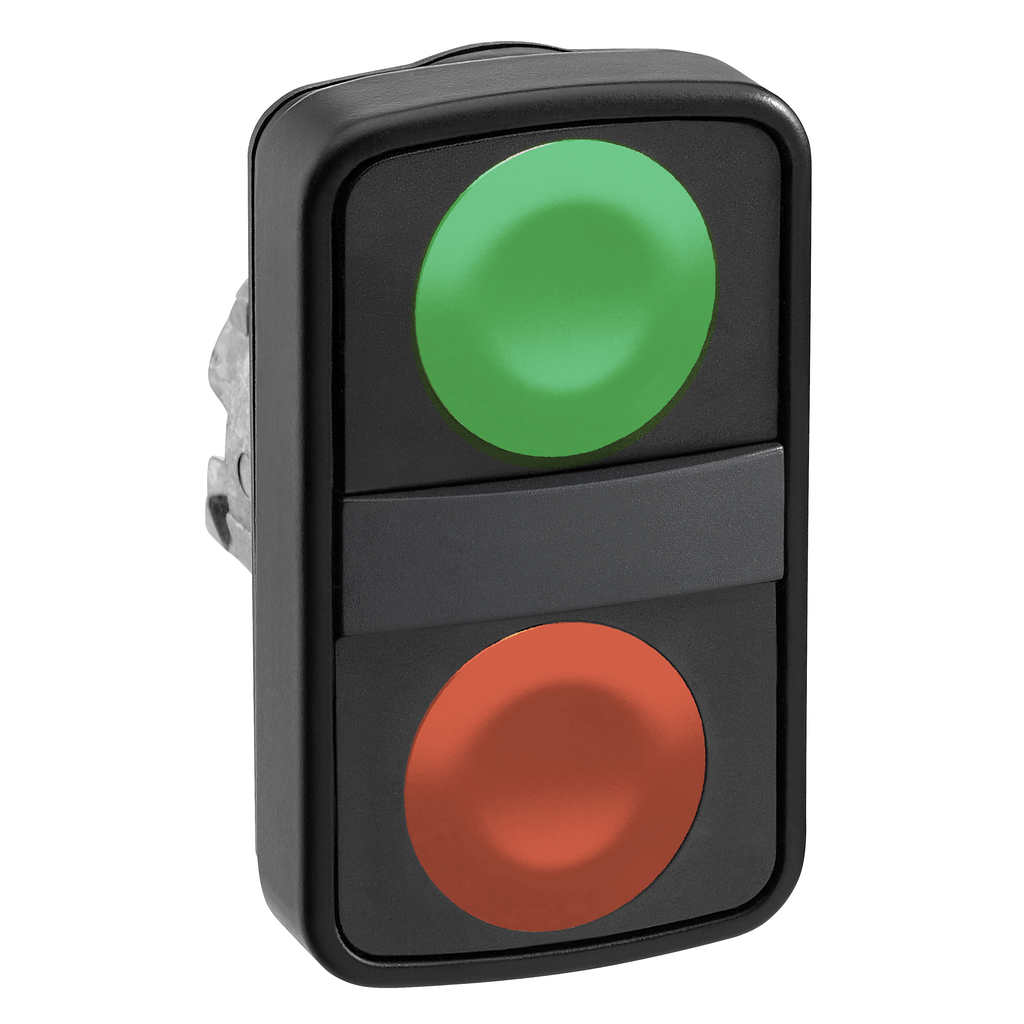

Head for double headed push button, Harmony XB4, green flush/red flush pushbutton Ø22 mm unmarked

HEAD FOR DOUBLE HEADED PUSH BU

SQDZB4BA73407 3389119043908
37.99 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for double headed push button, Harmony XB4, green flush/red flush pushbutton Ø22 mm unmarked-1
  • Bezel Material: Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.056 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4, double head has 1 green and 1 red button, operates with a spring return / impulse mechanism. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Specifications
This Harmony XB4, double head has 1 green and 1 red button, operates with a spring return / impulse mechanism. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ip Degree Of Protection : IP69 IEC 60529 || IP69K IEC 60529
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Standards : EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || UL 508 || JIS C8201-1
    • Ik Degree Of Protection : IK06 IEC 50102
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Operation : -40-70 °C
    • Electrical Shock Protection Class : class I IEC 60536
    • Product Certifications : LROS (Lloyds register of shipping) || DNV || GL || BV || UL Listed || CSA
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1808008EN
    • Circularity Profile : ENVEOLI1808008EN
    • Mercury Free : Yes
    • Reach Free Of Svhc : Yes
  • Complementary
    • Device Presentation : basic element
    • Colour Of Marking : white marking when green, red or black caps || black marking when white caps
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Mechanical Durability : 1000000 cycles
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
    • Net Weight : 0.056 kg
    • Operator Profile : green flush, unmarked || red flush, unmarked
  • Specifications
    • Operators Description : green unmarked - red unmarked
    • Sale Per Indivisible Quantity : 1
    • Device Short Name : ZB4
    • Bezel Material : black metal
    • Range Of Product : Harmony XB4
    • Head Type : standard
    • Shape Of Signaling Unit Head : rectangular
    • Product Or Component Type : head for double-headed push-button
    • Operator Profile : 2 flush push-buttons
    • Type Of Operator : spring return
    • Mounting Diameter : 22 mm
