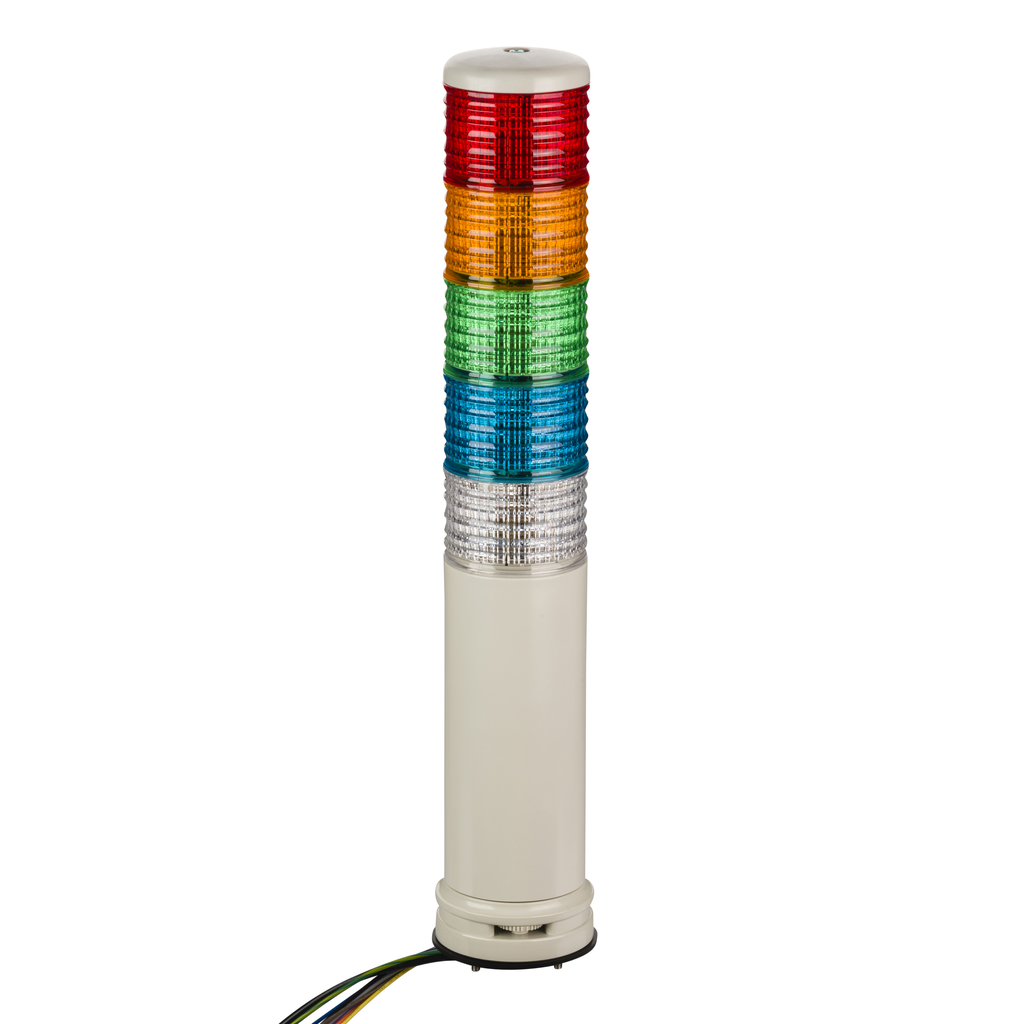

Harmony XVC, Monolithic precabled tower light, plastic, red orange green blue clear, Ø60, tube mount, steady or flashing, buzzer, IP54, 100…240 V AC

HARMONY XVC, MONOLITHIC PRECAB

SQDXVC6M55SK XVC6M55SK 3606480072796
709.98 / EA
http://schema.org/OutOfStock
  • Cable Length: 750 mm, 850 mm
  • Certifications: UL
  • Current: 115 mA
  • Height: 392 mm
  • Material: ABS (acrylonitrile Butadiene-styrene): Base Unit, PBT + ABS (UL94-V0): Top Cover, Polycarbonate: Illuminated Unit
  • Net Weight: 0.71 kg
  • Standard: EN/IEC 60947-1, EN/IEC 60947-5-1
  • Storage Temperature: -35-70 °C
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Environment
    • Product Certifications : UL
    • Ambient Air Temperature For Operation : -10-50 °C
    • Ambient Air Temperature For Storage : -35-70 °C
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-1
    • Electrical Shock Protection Class : class I EN/IEC 61140
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP54 flat surface installation EN/IEC 60529
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1904008EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1904008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Height : 392 mm
    • Awg Gauge : AWG 22 || AWG 18
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV
    • Fundamental Frequency : 2.23 kHz
    • Flashing Frequency : 1 Hz
    • Cable Cross Section : 0.83-0.83 mm² || 0.33-0.33 mm²
    • Product Mounting : on base
    • Material : polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover
    • Cable Length : 850 mm || 750 mm
    • Marking : CE
    • Net Weight : 0.71 kg
    • Current Consumption : 115 mA
  • Specifications
    • Range Of Product : Harmony XVC6
    • Noise Level : 70-85 dB continuous or intermittent tone)1 m
    • Beacon Or Indicator Bank Unit Type : 5 illuminated units
    • Mounting Diameter : 60 mm
    • Supply Circuit Type : AC
    • Light Source : LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green || LED steady or flashing blue || LED steady or flashing clear
    • Product Or Component Type : complete pre-wired monolithic tower light
    • Component Name : XVC
    • Sound Signalling : buzzer
    • [Us] Rated Supply Voltage : 100...240 V
