SQUARE D

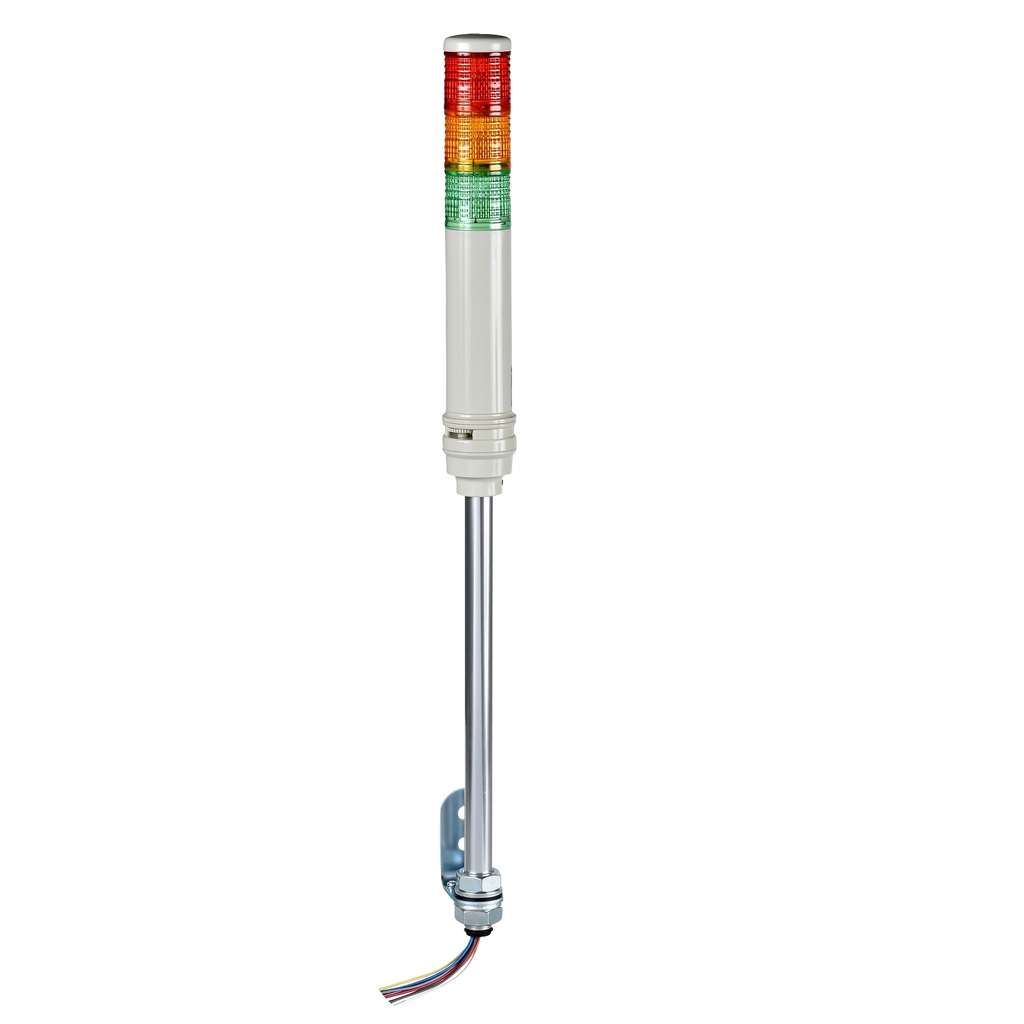

Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 40mm, tube mounting, steady or flashing, buzzer, 100...240V AC

HARMONY XVC, MONOLITHIC PRECAB

SQDXVC4M35S XVC4M35S 3606480072871
376.21 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 40mm, tube mounting, steady or flashing, buzzer, 100...240V AC-1
  • Cable Length: 450 mm
  • Country of Origin: Indonesia
  • Height: 25.09 in
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Overvoltage Category
    • class I conforming to IEC 61140
  • Light Source
    • LED steady or flashing red
    • LED steady or flashing orange
    • LED steady or flashing green
    • LED steady or flashing gr
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 1.0632234775
    • 1 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.9 kg CO2 eq.
    • 0.8976771449
  • Standards
    • IEC 60947-1
    • IEC 60947-5-1
  • Ip Degree Of Protection
    • IP23 vertical surface installation IEC 60529
  • Material
    • polycarbonate: illuminated unit
    • ABS (acrylonitrile butadiene-styrene): base unit
    • PBT + ABS (UL94-V0): top cover
    • SGP (chromium-plated): support
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 7 kg CO2 eq.
    • 6.5008979687
  • Electrical Shock Protection Class
    • class I conforming to IEC 61140
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 133 kg CO2 eq.
    • 133.378125
  • Us Rated Supply Voltage
    • 100...240 V
  • Cable Cross Section
    • 0.33-0.33 mm²
    • 0.83-0.83 mm²
  • Carbon Footprint Of The Distribution Phase A4
    • 0.1344249059
    • 0.1 kg CO2 eq.
  • Noise Level
    • 70-85 dB continuous or intermittent tone)1 m
  • Awg Gauge
    • AWG 22
    • AWG 18
  • Physical Attributes
    • Cable Length : 450 mm
  • Conformance Attributes
    • Product Certifications : UL
  • Complementary Attributes
    • Uimp Rated Impulse Withstand Voltage : 4 kV
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-15
    • Etim 10 : EC001042
    • Html Descr : 40mm Tower ROGPole BuzzerFlash100-240VAC
    • Manufacturer : Schneider Electric
    • Baan Price : 1317.41
    • Baan Currency : USD
    • Manufacturing Carbon Footprint : 6.5008979687
    • Distribution Carbon Footprint : 0.1344249059
    • Installation Carbon Footprint : 1.0632234775
    • Use Carbon Footprint : 133.378125
    • End Of Life Carbon Footprint : 0.8976771449
    • Legacy Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1904008EN
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant with Exemptions
    • Rohs Eur Conformity Date : 2150
    • Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Component Name : XVC
    • Current Consumption : 80 mA
    • Device Short Name : XVC
    • Flashing Frequency : 1 Hz
    • Fundamental Frequency : 2.23 kHz
    • Marking : CE
    • Mounting Diameter : 40 mm
    • Mounting Location : on support tube, 17 mm
    • Package Weight Lbs : 848.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Mounting : on support tube, 17 mm
    • Product Or Component Type : complete pre-wired monolithic tower light
    • Protective Treatment : TC
    • Range Of Product : Harmony XVC4
    • Returnability : Yes
    • Sound Signalling : buzzer
    • Supply Circuit Type : AC
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 142 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 141.974348497
  • General Attributes
    • Product Or Component Type : complete pre-wired monolithic tower light
    • Range Of Product : Harmony XVC4
  • ETIM
    • ETIM 8 : EC001042
    • ETIM 9 : EC001042
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 141.974348497
    • Ambient Air Temperature For Operation : -10-50 °C
    • Ambient Air Temperature For Storage : -35-70 °C
    • Circularity Profile : ENVEOLI1904008EN
    • Environmental Disclosure : ENVPEP1904008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Indonesia
    • Height : 25.09 in
