SQUARE D

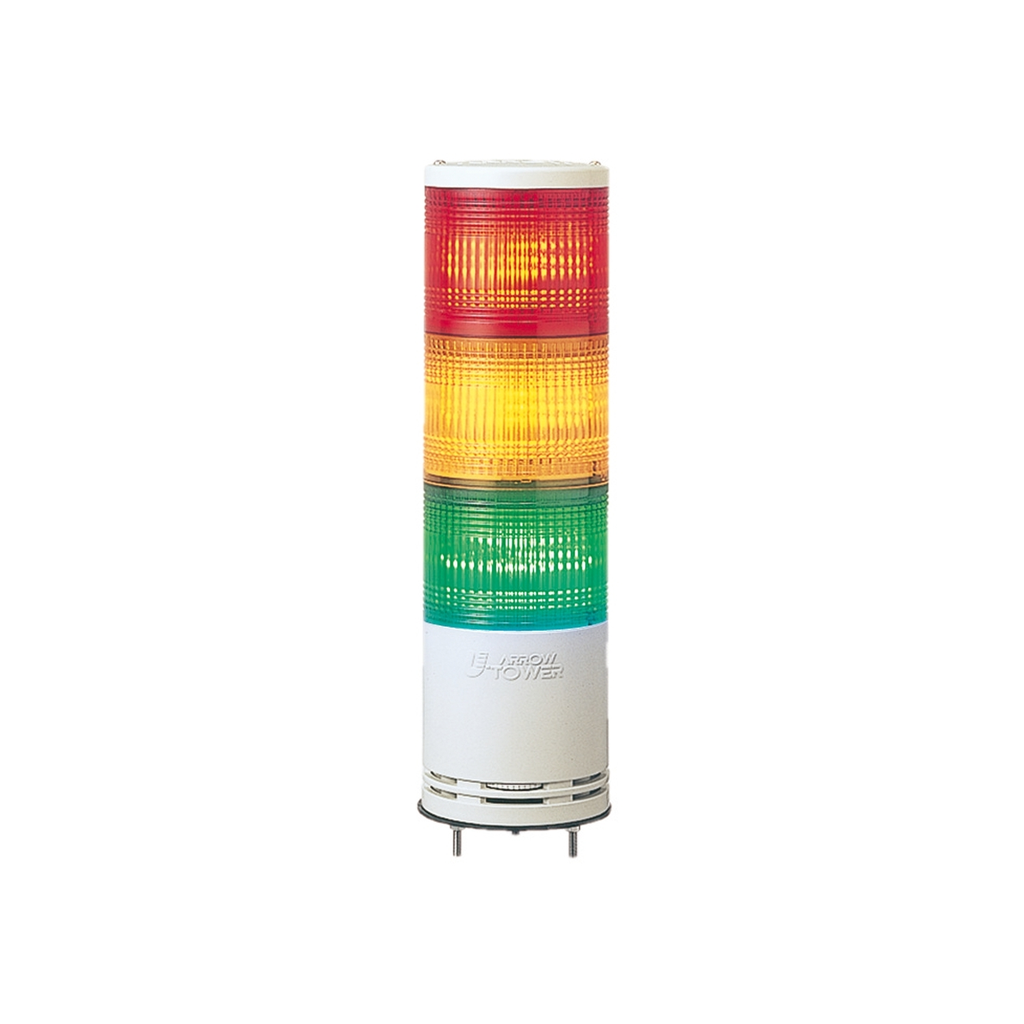

Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 100mm, base mounting, steady or flashing, IP54, 24V DC

HARMONY XVC, MONOLITHIC PRECAB

SQDXVC1B3K XVC1B3K 3606480032783
789.52 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 100mm, base mounting, steady or flashing, IP54, 24V DC-1
  • Cable Length: 500 mm
  • Country of Origin: Indonesia
  • Height: 14.65 in
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Light Source
    • LED steady or flashing red
    • LED steady or flashing orange
    • LED steady or flashing green
    • LED steady or flashing gr
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Standards
    • IEC 61000-6-3
    • IEC 61000-6-4
    • IEC 61000-6-2
  • Ip Degree Of Protection
    • IP54 IEC 60529
  • Material
    • polycarbonate: illuminated unit
    • ABS (acrylonitrile butadiene-styrene): base unit
    • PBT + ABS (UL94-V0): top cover
  • Electrical Shock Protection Class
    • class II conforming to IEC 61140
  • Accessories
    • XVCZ23
    • XVCZ13
  • Cable Cross Section
    • 0.33-0.33 mm²
    • 0.83-0.83 mm²
  • Awg Gauge
    • AWG 18
    • AWG 22
  • Physical Attributes
    • Cable Length : 500 mm
  • Conformance Attributes
    • Product Certifications : UL
  • Complementary Attributes
    • Uimp Rated Impulse Withstand Voltage : 0.8 kV
    • Us Rated Supply Voltage : 24 V
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-10
    • Etim 10 : EC001042
    • Legacy Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1904008EN
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant with Exemptions
    • Rohs Eur Conformity Date : 2150
    • Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Component Name : XVC
    • Current Consumption : 300 mA
    • Flashing Frequency : 0.7-3 Hz
    • Marking : CE
    • Mounting Diameter : 100 mm
    • Package Weight Lbs : 1.922 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Mounting : on base
    • Product Or Component Type : complete pre-wired monolithic tower light
    • Protective Treatment : TC
    • Range Of Product : Harmony XVC1
    • Returnability : Yes
    • Sound Signalling : without
    • Supply Circuit Type : DC
    • Sustainable Packaging : Yes
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : complete pre-wired monolithic tower light
    • Range Of Product : Harmony XVC1
  • ETIM
    • ETIM 8 : EC001042
    • ETIM 9 : EC001042
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -30-50 °C
    • Ambient Air Temperature For Storage : -35-70 °C
    • Circularity Profile : ENVEOLI1904008EN
    • Environmental Disclosure : ENVPEP1904008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Indonesia
    • Height : 14.65 in
