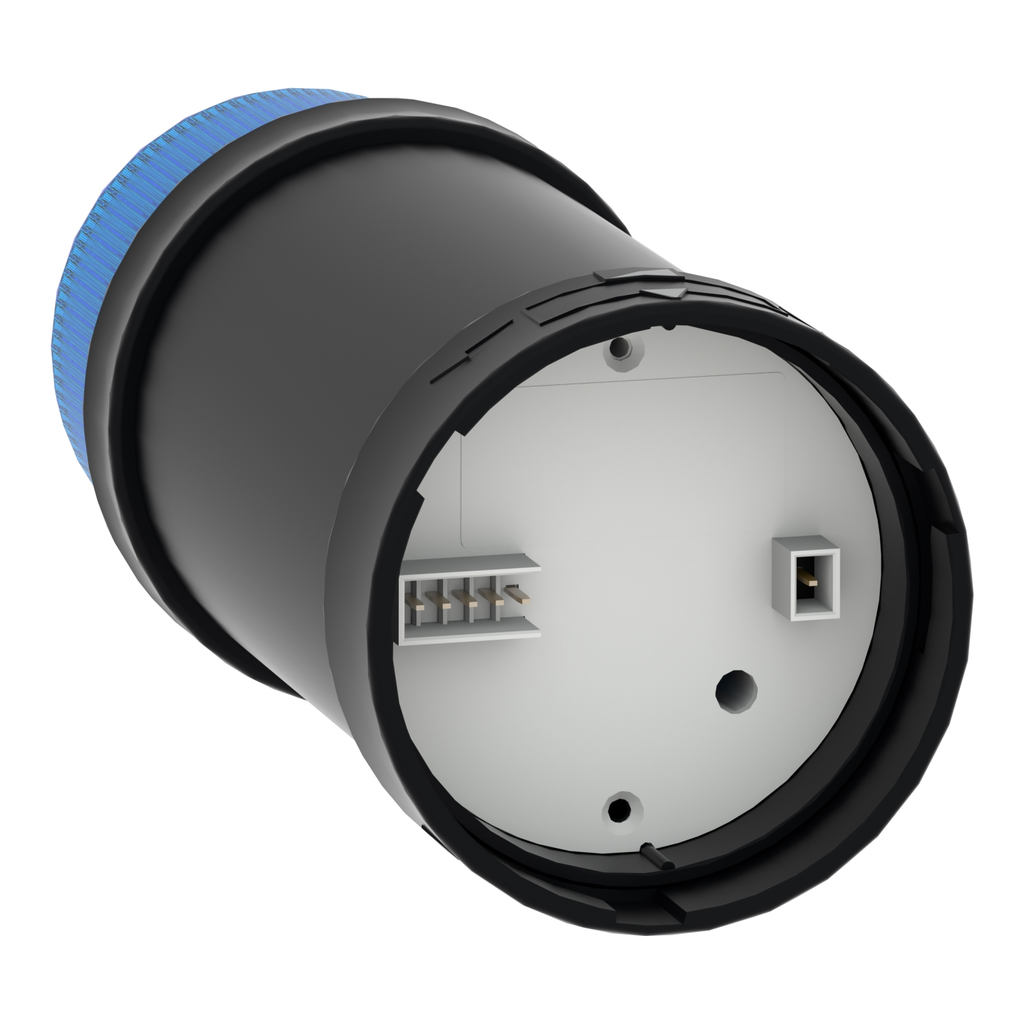

This blue illuminated unit is designed to be connected with base to create complete tower light. Its flash discharge tube offers a strobe light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool,

• Connections Terminals
• screw clamp terminals, <= 1 x 1.5 mm² with cable end
• Current Consumption
• < 290 mA AC
• Light Source
• integral flash discharge tube, blue
• Uimp Rated Impulse Withstand Voltage
• 4 kV IEC 60947-1
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ui Rated Insulation Voltage
• 250 V IEC 60947-1
• Ip Degree Of Protection
• IP65 on fixing base XVBZ0. IEC 60529
• IP66 on base unit IEC 60529
• Electrical Shock Protection Class
• class I on support tube IEC 61140
• class II on base unit IEC 61140
• Nema Degree Of Protection
• Type 4X UL indoor)
• Us Rated Supply Voltage
• 120 V AC
• Nominal Voltage Limit
• 0.85...1.1 Un IEC 60947-5-1
• Product Certifications
• CCC
• EAC
• CSA C22-2 No 14
• UL 508

• Physical Attributes
• Cad Overall Depth : 70 mm
• Cad Overall Height : 157 mm
• Cad Overall Width : 70 mm
• Conformance Attributes
• Standards : IEC 60947-5-1
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Etim 10 : EC000232
• Html Descr : INDICATING BANK LENS 120VAC 10J +OPTIONS
• Manufacturer : Schneider Electric
• Baan Price : 1153.6
• Baan Currency : USD
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : Yes
• China Rohs Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Assembly Style : customer assembly, up to 5 units
• Bulb Type : flash discharge tube
• Component Name : XVBC
• Flash Energy : 10 J
• Flashing Frequency : 1-1 Hz
• Material : polycarbonate
• Mounting Diameter : 70 mm
• Package Weight Lbs : 315.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : indicator bank
• Protective Treatment : TC
• Range Of Product : Harmony XVB Universal
• Returnability : Yes
• Signalling Type : flashing
• Sustainable Packaging : Yes
• General Attributes
• Product Or Component Type : indicator bank
• Range Of Product : Harmony XVB Universal
• ETIM
• ETIM 8 : EC000232
• ETIM 9 : EC000232
• Environment Attributes
• Take Back : No
• China Rohs Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Storage : -40-70 °C
• Environmental Disclosure : ENVPEP070907EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia
