SQUARE D

Monolithic illuminated push button, Harmony XB7, plastic, green, 22mm, integral LED, spring return, 24V AC DC, 1NO

HARMONY XB7, MONOLITHIC ILLUMI

SQDXB7NW33B1 XB7NW33B1 3606480470745
41.79 / EA
http://schema.org/OutOfStock

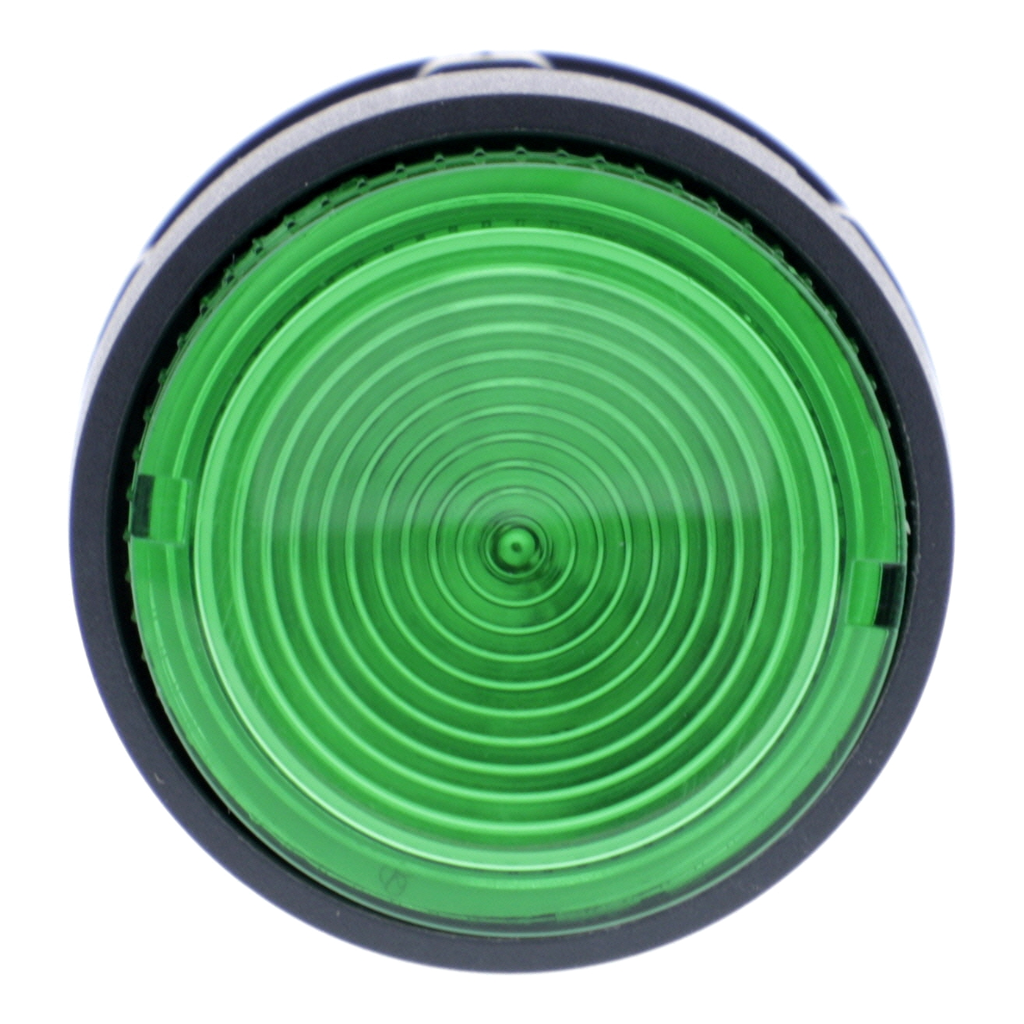

Mayer-DDS-Monolithic illuminated push button, Harmony XB7, plastic, green, 22mm, integral LED, spring return, 24V AC DC, 1NO-2
  • Country of Origin: Indonesia
  • Warranty Length: 18 mth
This Harmony XB7, illuminated projecting monolithic green push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XB7, illuminated projecting monolithic green push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
  • US Rated Supply Voltage
    • 24 V AC/DC
  • Connections Terminals
    • screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
    • screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
  • IE Rated Operational Current
    • 0.1 A 250 V, DC-13, R300 IEC 60947-5-1
    • 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    • 0.3 A 240 V, AC-14, D300 IEC 60947-5-1
    • 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB7NW33B1_NEW_2024
    • https://download.schneider-electric.com/files?p_Doc_Ref=XB7NW34G1_CAD
  • Supply Voltage Limits
    • 19.2-30 V DC
    • 21.6-26.4 V AC
  • IP Degree Of Protection
    • IP20 IEC 60529 rear face)
    • IP65 IEC 60529 front face)
  • Shape Of Screw Head
    • cross JIS No 1
    • cross Philips no 1
    • cross pozidriv No 1
    • slotted flat Ø 4 mm
    • slotted flat Ø 5.5 mm
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0000364912
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0 kg CO2 eq.
    • 0.0035496511
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.5 kg CO2 eq.
    • 0.5093208511
  • Electrical Shock Protection Class
    • class II conforming to IEC 61140
  • Nema Degree Of Protection
    • NEMA 12 UL 50 E
  • UI Rated Insulation Voltage
    • 250 V 3)IEC 60947-1
  • Fixing Center
    • >= 30 x 40 mm support panel) metal 1-6 mm
    • >= 30 x 40 mm support panel) plastic 2-6 mm
  • Accessories
    • ZBY2101
    • ZBY2303
    • ZB5AZ905
    • ZBZ32
  • Electrical Durability
    • 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C
    • 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
  • Service Life
    • 70000 h at rated voltage and 25 °C
  • Fixing Mode
    • fixing nut beneath head 2-2.4 N.m
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 24 kg CO2 eq.
    • 23.8449120466
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Electromagnetic Emission
    • class B IEC 55011
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0030965106
    • 0 kg CO2 eq.
  • Tightening Torque
    • 0.8-1.2 N.m IEC 60947-1
  • Short Circuit Protection
    • 4 A cartridge fuse gG IEC 60947-5-1
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • green projecting, unmarked
  • Electrical Reliability
    • λ <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
  • Shock Resistance
    • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • 30 gn 18 ms) half sine wave acceleration
  • UIMP Rated Impulse Withstand Voltage
    • 4 kV IEC 60947-1
  • Physical Attributes
    • Cad Overall Depth : 57.5 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • HTML Description : Illuminated push-button, LED, Spring return, 1NO, Green, 24v
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 0.5093208511
    • Distribution Carbon Footprint : 0.0030965106
    • Installation Carbon Footprint : 0.0000364912
    • Use Carbon Footprint : 23.8449120466
    • End Of Life Carbon Footprint : 0.0035496511
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2502022EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bulb Base : integral LED
    • Compatibility Code : XB7
    • Device Short Name : XB7
    • Mounting Diameter : 22 mm
    • Package Weight Lbs : 25.000 g
    • Positive Opening : with (only NO)
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony XB7
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 10
    • Shape Of Signaling Unit Head : round
    • Signalling Type : steady
    • Sustainable Packaging : No
    • Terminals Description ISO N 1 : (13-14)NO
    • Total Lifecycle Carbon Footprint : 24 kg CO2 eq.
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 24.3609155506
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2502022EN
    • Pep Verification Date : 2018-05-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 24
    • Functional Unit Description : Switch ON/OFF electical contact, and/or provide visual signaling for 20 years at a 30% use rate.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unité (unit)
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 40.386974
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
    • Energy Model Manufacturing A1 A3 : Energy model used: France
    • Energy Model Installation A5 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model Use B6 : Electricity Mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 : Electricity Mix; AC; < 1kV; EU-27
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0000269911
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0000259047
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000001
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.0000010862
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000001
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 251.4440108352
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 5.7426382979
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.0435033191
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0005187472
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 245.6259533645
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.0313971064
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0.0000000484
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.0000000046
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0.0000000439
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 0.4653826034
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.4309174468
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0000001353
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0344650213
    • Materials For Energy Recovery Kg Total Life Cycle : 0.0004435915
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.0004435915
    • Materials For Recycling Kg Total Life Cycle : 0.0146813821
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.0020157957
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.0001181821
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0125474043
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.0645442518
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0023451574
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000002771
    • Net Use Of Fresh Water M3 Installation A5 : 0.0000000274
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.0621956326
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.0000031572
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 89.3273243965
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.1327761702
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0001100221
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0002846604
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 89.1940480969
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0001054468
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000058435
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000000507
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.0000057926
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000002
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.072790786
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.0000832208
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000000784
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000000099
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.0727073108
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000001662
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 454.2287616184
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.6366297872
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0437249362
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0004077038
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 448.5136362976
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0343628936
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 488.9553515698
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 5.7852255319
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.0437831489
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.0004161906
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 483.0915249962
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.0344017021
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 34.7158421131
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1486059574
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000583486
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000084872
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 34.5671311333
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0000381866
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.4510876596
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.4510876596
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 453.7776637461
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.1855319149
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0437249362
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0004077038
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 448.5136362976
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0343628936
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.0002597106
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0002597106
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 34.7155867939
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1483506383
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0000583486
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0000084872
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 34.5671311333
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0000381866
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0004442043
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0004442043
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 1076.2075324198
    • Air Pollution M3 Manufacturing A1 A3 : 53.178893617
    • Air Pollution M3 Distribution A4 : 0.1317242553
    • Air Pollution M3 Installation A5 : 0.0038645106
    • Air Pollution M3 Operational Energy Use B6 : 1022.6449002496
    • Air Pollution M3 End Of Life C1 C4 : 0.2481497872
    • Water Pollution M3 Total Life Cycle : 1087.0455483213
    • Water Pollution M3 Manufacturing A1 A3 : 85.6759148936
    • Water Pollution M3 Distribution A4 : 0.5092187234
    • Water Pollution M3 Installation A5 : 0.004416817
    • Water Pollution M3 Operational Energy Use B6 : 1000.5611553341
    • Water Pollution M3 End Of Life C1 C4 : 0.2948425532
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.1813080269
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.008629289
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.0070687171
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.0009591626
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 0.0000141386
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 0.0000001427
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.1803275316
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 0.0000070515
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 24.3609155506
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 0.5093208511
    • Global Warming Kg Equivalent Co2 Distribution A4 : 0.0030965106
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.0000364912
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 23.8449120466
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.0035496511
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 0.0001046196
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 0.0000010089
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 0.000000011
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.0085229117
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 0.0000007378
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.0003039523
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 0.0000032564
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 0.0000001386
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.0067594394
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 0.0000019303
  • General Attributes
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony XB7
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=267943043&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 24.3609155506
    • Circularity Profile : ENVEOLI2502022EN
    • Environmental Disclosure : ENVPEP2502022EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2502022EN
    • Pep Verification Date : 2018-05-01
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Indonesia
  • Overview Attributes
    • Device Presentation : monolithic product
