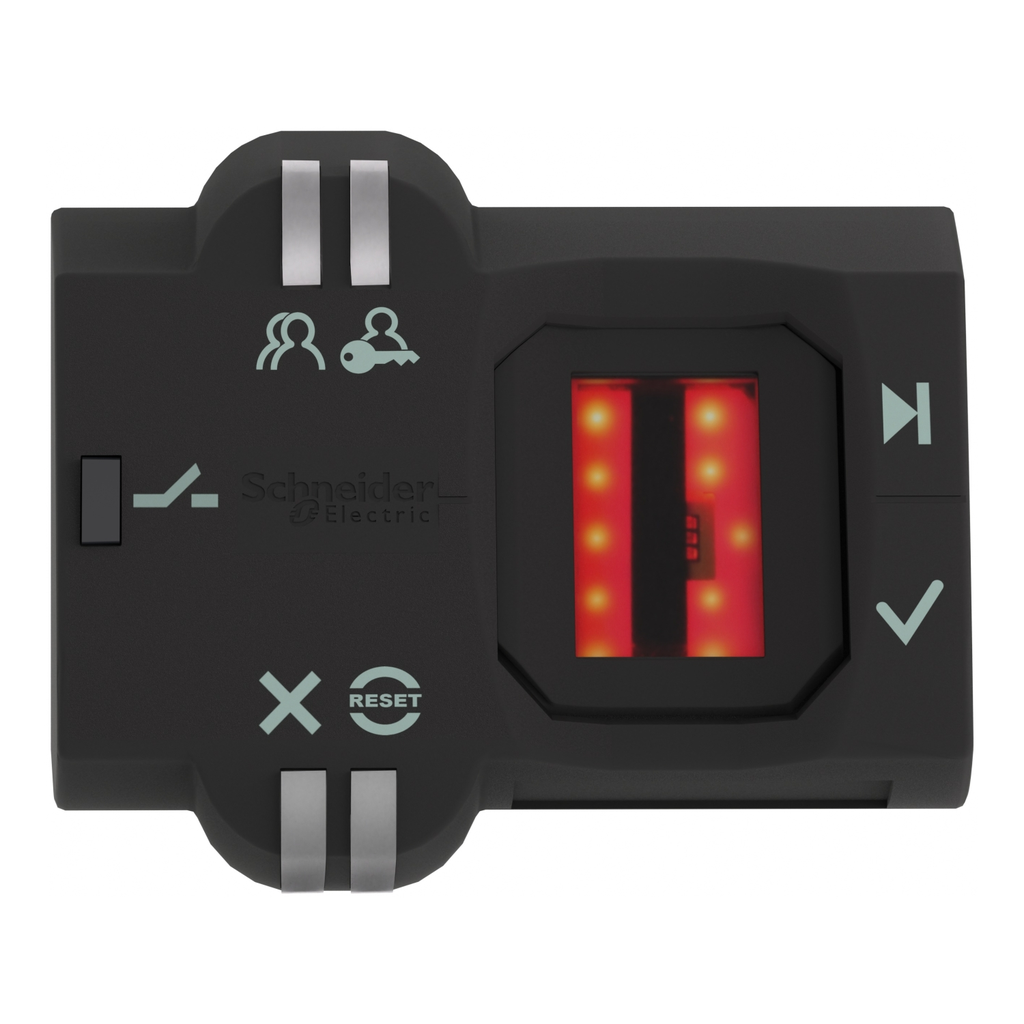

This Harmony XB5, monostable biometric switch has a M12 connectoris supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CSA || UL
• Ambient Air Temperature For Operation : -5-50 °C
• Range Of Product : Harmony XB5S
• Standards : IEC 61000-6-2 || IEC 61000-6-4
• Shock Resistance : 50 gn 11 ms IEC 60068-2-27
• Vibration Resistance : +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6 || 1 gn (f= 9-500 Hz) conforming to IEC 60068-2-6
• Ambient Air Temperature For Storage : -25-70 °C
• Nema Degree Of Protection : NEMA 12
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2404013EN
• Packaging Without Single Use Plastic : No
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2404013EN
• Take-Back : No
• Global Warming ; Total Life Cycle​ : 60 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 60.3787412031
• Complementary
• Current Consumption : <= 70 mA no-load
• Electrical Connection : M12 connector 0.2 m
• Maximum Delay Response : 1.5 s
• Short-Circuit Protection : 250 mA external fuse gG
• Cable Insulation Material : PvR
• Maximum Switching Current : 200 mA
• Marking : CE
• Net Weight : 0.183 kg
• [Us] Rated Supply Voltage : 24 V DC
• Maximum Delay Recovery : 1.5 s
• Supply Voltage Limits : 20-30 V DC
• Local Signalling : 1 LED (green) for output state indicator || 1 LED (orange) for administrator's registration mode || 1 LED (orange) for operator's registration mode || 1 LED (red) for error || 1 LED (red) for reset
• Operating Position : vertical surface installation || horizontal position || flat surface installation
• Protection Type : overload protection || short-circuit || reverse polarity
• Enclosure Material : polyamide PA66
• Function Of Module : monostable
• [Ures] Residual Voltage : 1 V closed state
• Maximum Delay First Up : 3 s + 0.5 ms per user registered
• Specifications
• Country of Origin : France
• Weight : 0.183 kg
• Mounting Diameter : 22 mm
• Product Or Component Type : biometric switch
• Ip Degree Of Protection : IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
• Sale Per Indivisible Quantity : 1
• Bezel Material : dark grey plastic
• Operator Profile : fingerprint reader
• Product Specific Application : industrial machines || materials handling
• Type Of Operator : momentary
• Output Type : PNP
• Memory Usage : 200 users with up to 2 fingerprints per user
• Device Short Name : XB5S
