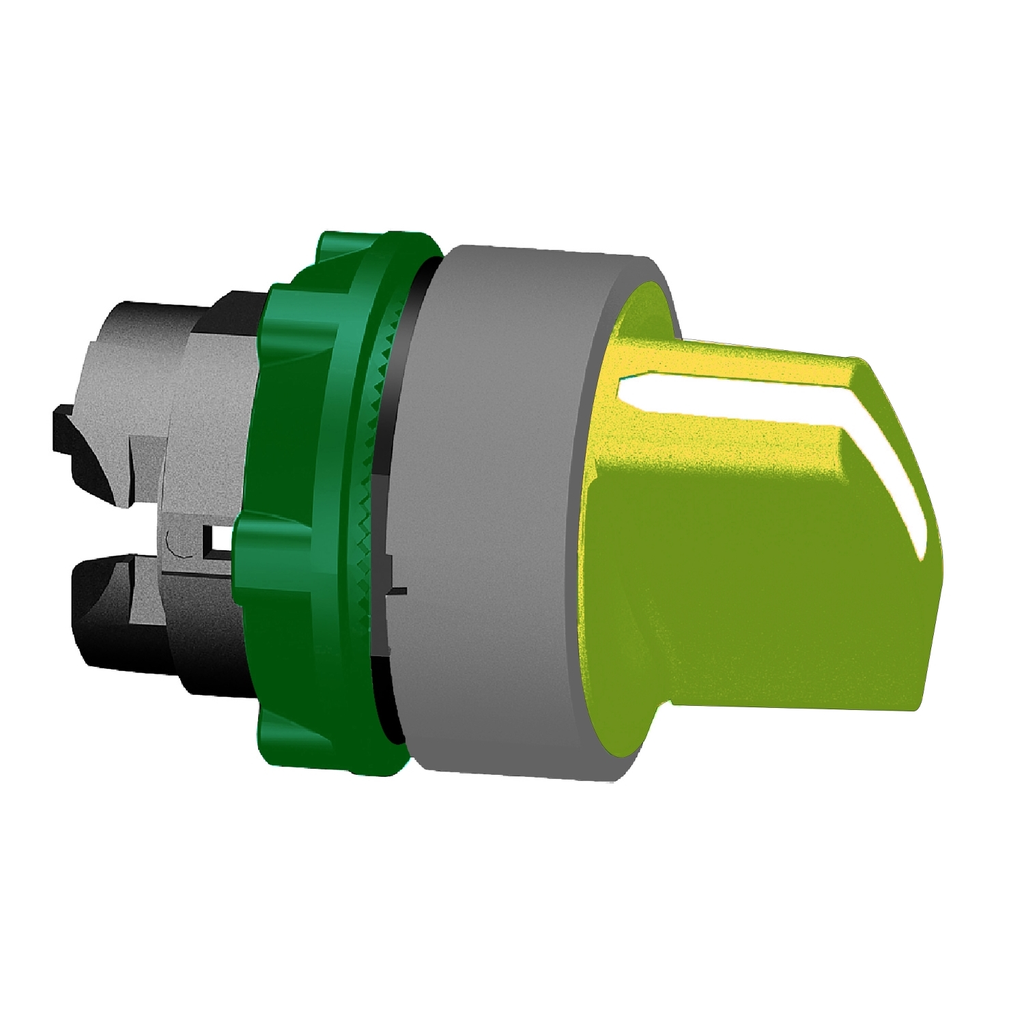

This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.

• Offer Sustainability
• China Rohs Regulation : X
• Rohs Exemption Information : Yes
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Specifications
• Device Short Name : ZB5
• Head Type : standard
• Range Of Product : Harmony XB5
• Bezel Material : plastic colour plated grey
• Type Of Operator : stay put
• Product Or Component Type : head for selector switch
• Mounting Diameter : 22 mm
• Sale Per Indivisible Quantity : 1
• Operator Position Information : 3 positions +/- 45°
• Shape Of Signaling Unit Head : round
• Operator Profile : yellow standard handle
• Environment
• Ip Degree Of Protection : IP67 IEC 60529
• Product Certifications : BV || LROS (Lloyds register of shipping) || UL Listed || DNV || CSA || GL
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
• Ambient Air Temperature For Operation : -40-70 °C
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Overvoltage Category : class II IEC 60536
• Protective Treatment : TH
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Ambient Air Temperature For Storage : -40-70 °C
• Ik Degree Of Protection : IK06 IEC 50102
• Complementary
• Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
• Device Presentation : basic element
• Net Weight : 0.017 kg
• Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Cad Overall Depth : 46 mm
• Mechanical Durability : 1000000 cycles
