SQUARE D

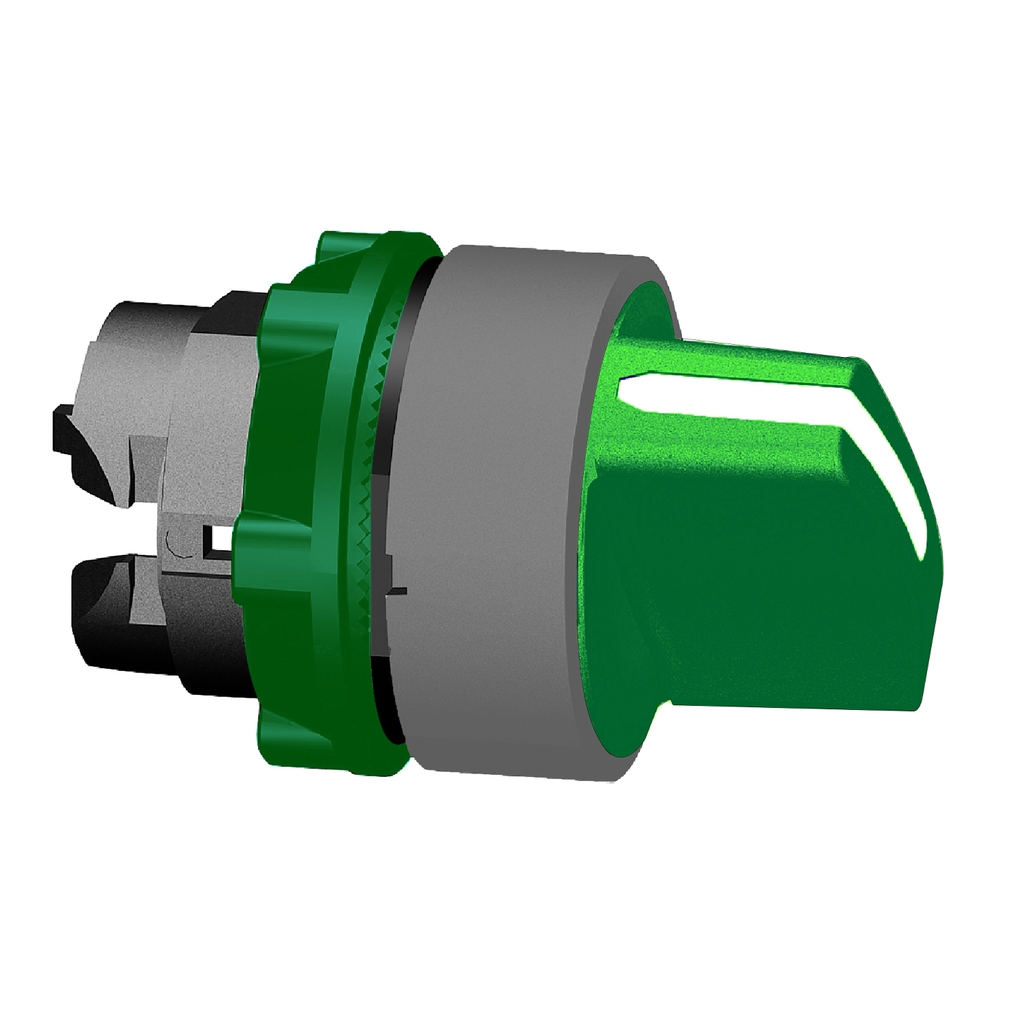

Harmony XB5, Selector switch head, plastic, green, 22mm, 3 positions, spring return to center, grey bezel

HARMONY XB5, SELECTOR SWITCH H

SQDZB5AD503C0 ZB5AD503C0 3606489763527
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Selector switch head, plastic, green, 22mm, 3 positions, spring return to center, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Country of Origin: France
  • Head Type: Standard
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impa
QTY
  • Product Description
  • Features
  • Specifications
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impa
  • Type Of Operator
    • to centre spring return
  • Overvoltage Category
    • class II conforming to IEC 60536
  • Electrical Composition Code
    • C3 6 single front mounting
    • C4 6 single and double front mounting
    • C4 6 single and double front mou
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Standards
    • JIS C8201-5-1
    • CSA C22.2 No 14
    • IEC 60947-5-1
    • IEC 60947-1
    • IEC 60947-5-4
    • UL 508
    • JIS C8201-1
  • Station Name
    • XALD 1...5 cut-outs
    • XALK 2...5 cut-outs
  • Ip Degree Of Protection
    • IP67 IEC 60529
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Accessories
    • ZBE101
    • ZBYLEG503001
    • ZB5AZ009
    • ZBYLEG304001
    • ZBY6101C0
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Customizable
    • 1
    • no
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Operator Profile
    • green standard handle
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Product Certifications
    • DNV
    • CSA
    • BV
    • LROS (Lloyds register of shipping)
    • UL Listed
  • Physical Attributes
    • Cad Overall Depth : 46 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
    • Cap Operator Or Lens Color : green
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-06
    • ETIM 10 : EC000222
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308008EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : plastic colour plated grey
    • Cap Operator Or Lens Color : green
    • Compatibility Code : ZB5
    • Device Short Name : ZB5
    • Gcr Bridge : ZB5ADCUST01
    • Group Of Product : non illuminated
    • Head Type : standard
    • Main Group : selector switch
    • Mechanical Durability : 1000000 cycles
    • Mounting Diameter : 22 mm
    • Operator Position Information : 3 positions +/- 45°
    • Package Weight Lbs : 24.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for selector switch
    • Protective Treatment : TH
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : No
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : head for selector switch
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749508&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308008EN
    • Environmental Disclosure : ENVPEP2308008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic element
