SQUARE D

Harmony XB5, Selector switch head, plastic, black, Ø22, long handle, 3 positions, spring return from right to center, grey bezel

HARMONY XB5, SELECTOR SWITCH H

SQDZB5AJ8C0 3606489767167
20.48 / EA
http://schema.org/OutOfStock

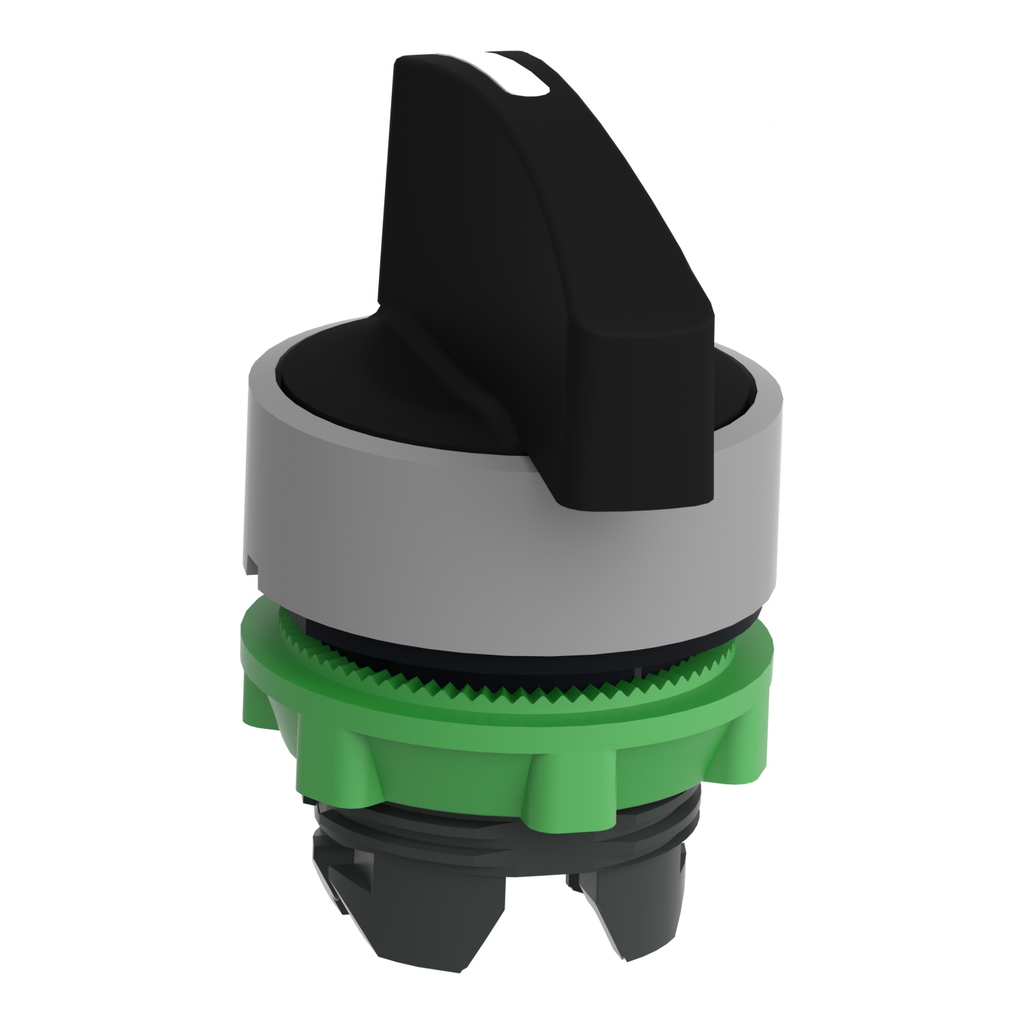

Mayer-DDS-Harmony XB5, Selector switch head, plastic, black, Ø22, long handle, 3 positions, spring return from right to center, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
  • Complementary
    • Mechanical Durability : 1000000 cycles
    • Device Presentation : basic element
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Cad Overall Width : 29 mm
    • Cad Overall Height : 38 mm
    • Cad Overall Depth : 46 mm
    • Net Weight : 0.017 kg
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
  • Specifications
    • Type Of Operator : right to centre spring return
    • Shape Of Signaling Unit Head : round
    • Range Of Product : Harmony XB5
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic colour plated grey
    • Mounting Diameter : 22 mm
    • Operator Position Information : 3 positions +/- 45°
    • Operator Additional Information : non padlockable
    • Head Type : standard
    • Product Or Component Type : head for selector switch
    • Operator Profile : black long handle
  • Offer Sustainability
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Rohs Exemption Information : Yes
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ik Degree Of Protection : IK06 IEC 50102
    • Standards : IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP67 IEC 60529
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Product Certifications : BV || GL || UL Listed || LROS (Lloyds register of shipping) || CSA || DNV
    • Protective Treatment : TH
