SQUARE D

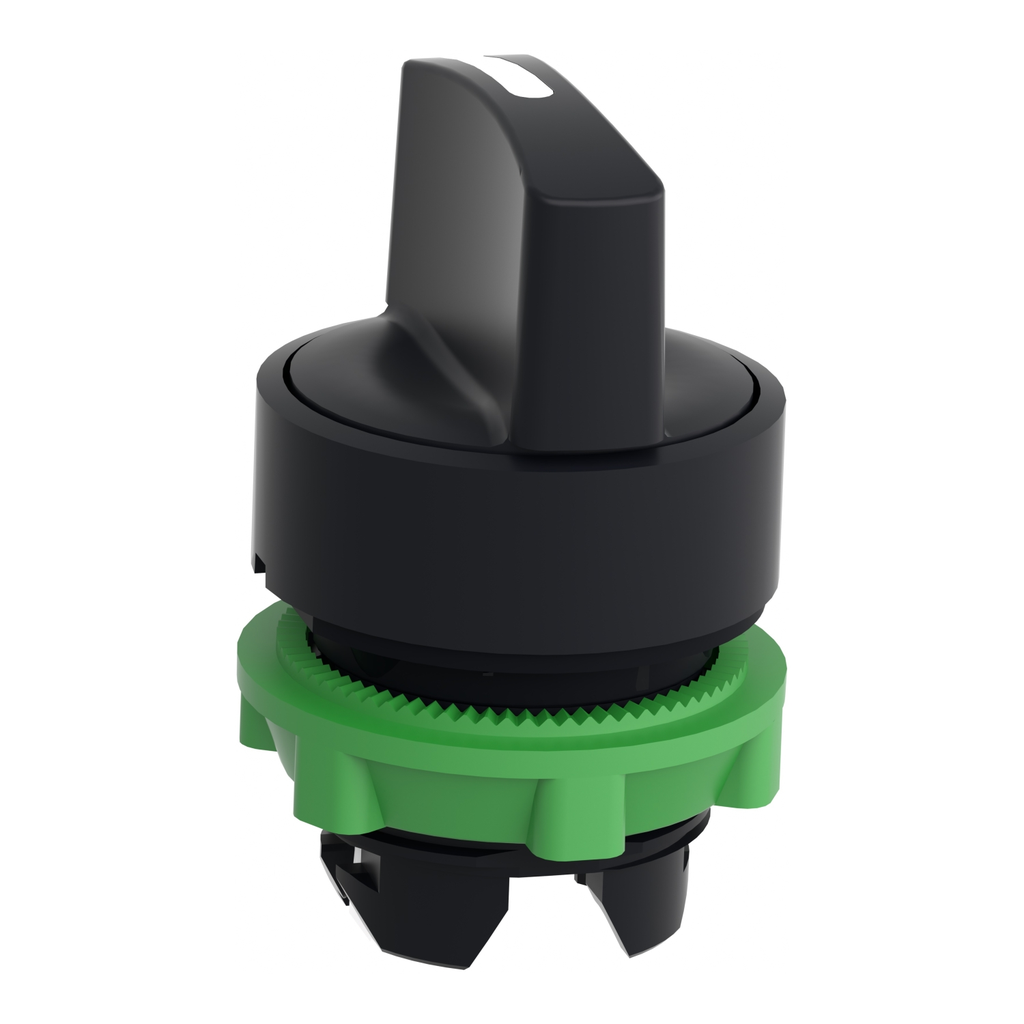

Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return from left to center

HARMONY XB5, SELECTOR SWITCH H

SQDZB5AD7 3389110905250
28.57 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return from left to center-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB5, black selector switch head with standard handle has 3 positions, operates with spring return from left to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Specifications
This Harmony XB5, black selector switch head with standard handle has 3 positions, operates with spring return from left to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Environment
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ik Degree Of Protection : IK06 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Protective Treatment : TH
    • Ip Degree Of Protection : IP67 IEC 60529 || IP69 IEC 60529 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Standards : IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Product Certifications : GL || BV || CSA || LROS (Lloyds register of shipping) || DNV || UL Listed
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Circularity Profile : ENVEOLI1710010EN
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Complementary
    • Device Presentation : basic element
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Net Weight : 0.017 kg
    • Cad Overall Width : 29 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Cad Overall Height : 29 mm
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Depth : 46 mm
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB5
    • Head Type : standard
    • Operator Position Information : 3 positions +/- 45°
    • Bezel Material : dark grey plastic
    • Operator Profile : black standard handle
    • Product Or Component Type : head for selector switch
    • Device Short Name : ZB5
    • Mounting Diameter : 22 mm
    • Type Of Operator : left to centre spring return
    • Shape Of Signaling Unit Head : round
