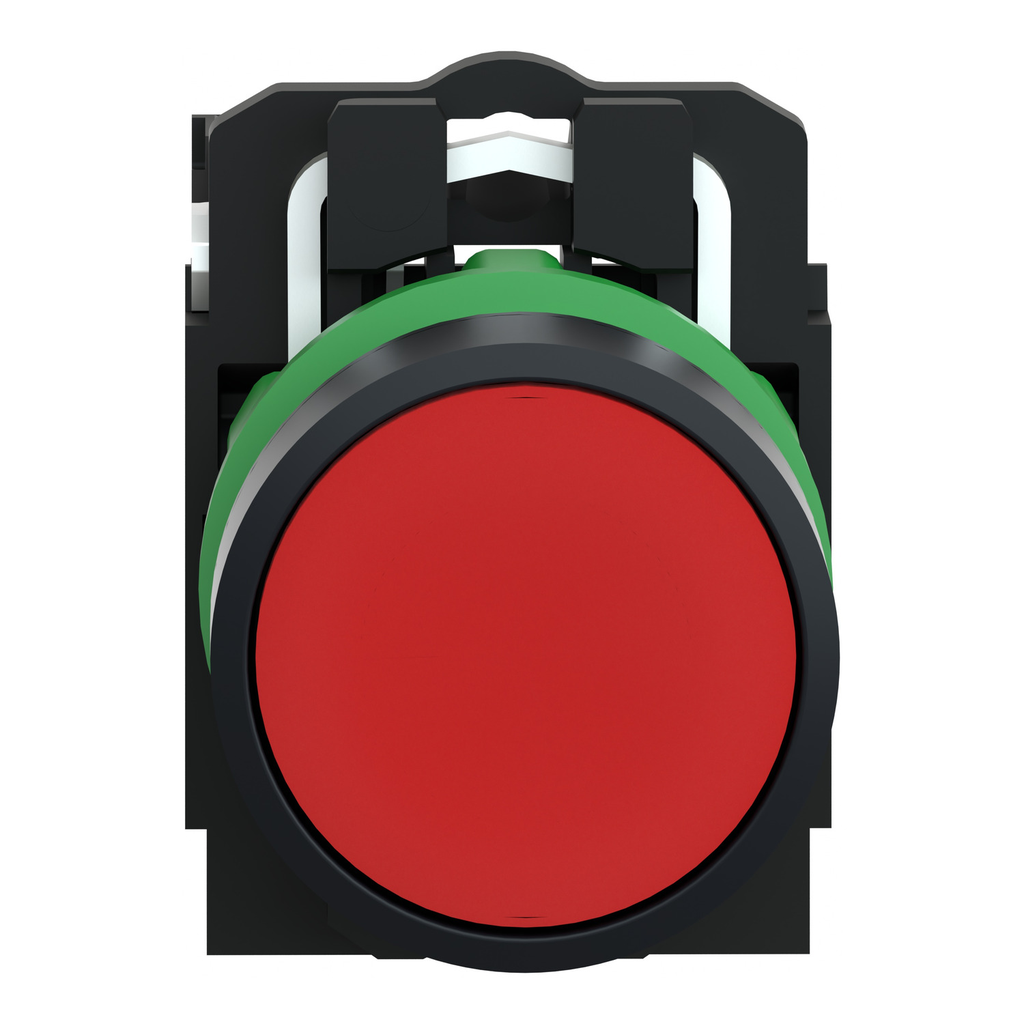

Harmony XB5, Push button, plastic, flush, red, Ø22, spring return, unmarked, 1 NO

PUSHBUTTON 230VAC 2AMP XB5 +OP

SQDXB5AA42 XB5AA42 785901383505
36.50 / EACH
  • Bezel Material: Dark Grey Plastic, Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Contact Material: Silver Alloy
  • Depth: 52 mm
  • Height: 42 mm
  • Net Weight: 0.037 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 30 mm
This Harmony XB5, modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Product Description
  • Specifications
This Harmony XB5, modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Contractual warranty
    • Warranty : 18 months
  • Range Of Product : Harmony XB5
  • Contacts Type And Composition : 1 NC
  • Product Or Component Type : push-button
  • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
  • Sale Per Indivisible Quantity : 1
  • Device Short Name : XB5
  • Type Of Operator : spring return
  • Head Type : standard
  • Bezel Material : plastic || dark grey plastic
  • Contact Operation : slow-break
  • Fixing Collar Material : plastic
  • Mounting Diameter : 22 mm
  • Operator Profile : red flush, unmarked
  • Shape Of Signaling Unit Head : round
  • Offer Sustainability
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Environmental Disclosure : ENVPEP1710010EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI1710010EN
  • Environment
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ik Degree Of Protection : IK03 IEC 50102
    • Product Certifications : UL Listed || BV || GL || CSA || LROS (Lloyds register of shipping) || DNV
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Complementary
    • Operating Travel : 1.5 mm NC changing electrical state) || 4.3 mm total travel)
    • Short-Circuit Protection : 10 A cartridge fuse gG EN/IEC 60947-5-1
    • Operating Force : 3.5 N NC changing electrical state
    • [Ith] Conventional Free Air Thermal Current : 10 A EN/IEC 60947-5-1
    • Customizable : yes
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Width : 30 mm
    • Device Presentation : complete product
    • Height : 42 mm
    • Net Weight : 0.037 kg
    • Gcr Bridge : XB5AACUST01
    • Mechanical Durability : 10000000 cycles
    • Contacts Usage : standard contacts
    • Tightening Torque : 0.8-1.2 N.m EN 60947-1
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV EN/IEC 60947-1
    • [Ui] Rated Insulation Voltage : 600 V 3)EN/IEC 60947-1
    • Positive Opening : with EN/IEC 60947-5-1 appendix K
    • Electrical Durability : 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    • Terminals Description Iso N°1 : (21-22)NC
    • Contacts Material : silver alloy (Ag/Ni)
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
    • Customizable : 1
    • Depth : 52 mm
    • Compatibility Code : XB5
