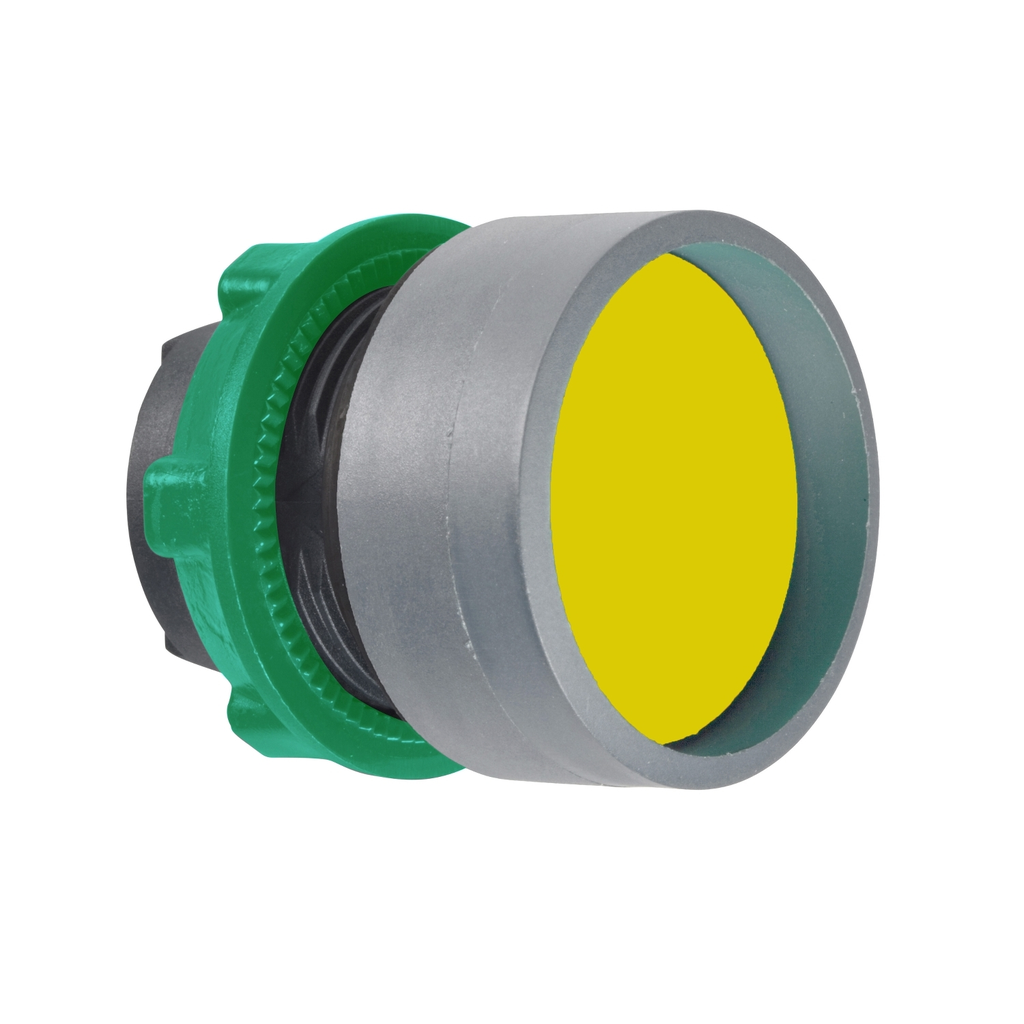

This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
- Environment
- Product Certifications : UL Listed || CSA || DNV || LROS (Lloyds register of shipping) || GL || BV
- Ik Degree Of Protection : IK03 conforming to IEC 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Ambient Air Temperature For Storage : -40-70 °C
- Overvoltage Category : class II IEC 60536
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment : TH
- Ip Degree Of Protection : IP66 IEC 60529 || IP67
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Offer Sustainability
- China Rohs Regulation : X
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Specifications
- Sale Per Indivisible Quantity : 1
- Operator Additional Information : high guard
- Range Of Product : Harmony XB5
- Bezel Material : plastic colour plated grey
- Operator Profile : yellow recessed, unmarked
- Mounting Diameter : 22 mm
- Type Of Operator : spring return
- Product Or Component Type : head for non-illuminated push-button
- Shape Of Signaling Unit Head : round
- Device Short Name : ZB5
- Head Type : standard
- Complementary
- Mechanical Durability : 10000000 cycles
- Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Width : 29 mm
- Cad Overall Depth : 31 mm
- Net Weight : 0.02 kg
- Cad Overall Height : 29 mm
