SQUARE D

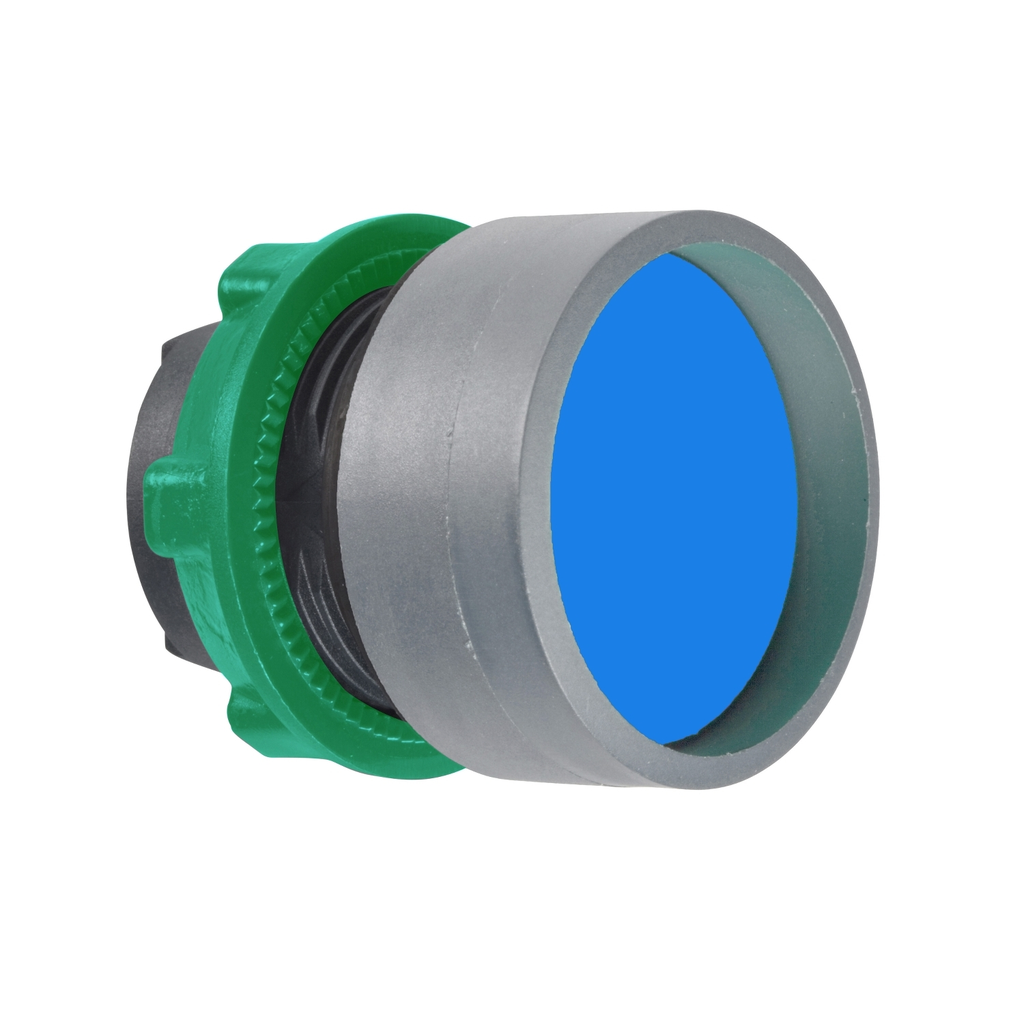

Harmony XB5, Push button head, plastic, recessed, blue, Ø22, spring return, unmarked, grey bezel

HARMONY XB5, PUSH BUTTON HEAD,

SQDZB5AA66C0 ZB5AA66C0 3606489762704
25.17 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Net Weight: 0.02 kg
  • Storage Temperature: -40-70 °C
QTY
  • Product Description
  • Specifications
This button head provides a robust and ergonomic interface for controlling your machines thanks to its recessed high guard head. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Operator Additional Information : high guard
    • Range Of Product : Harmony XB5
    • Bezel Material : plastic colour plated grey
    • Operator Profile : blue recessed, unmarked
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Device Short Name : ZB5
    • Head Type : standard
  • Complementary
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 31 mm
    • Net Weight : 0.02 kg
    • Cad Overall Height : 29 mm
  • Environment
    • Product Certifications : UL Listed || GL || CSA || BV || LROS (Lloyds register of shipping) || DNV
    • Ik Degree Of Protection : IK03 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Protective Treatment : TH
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
