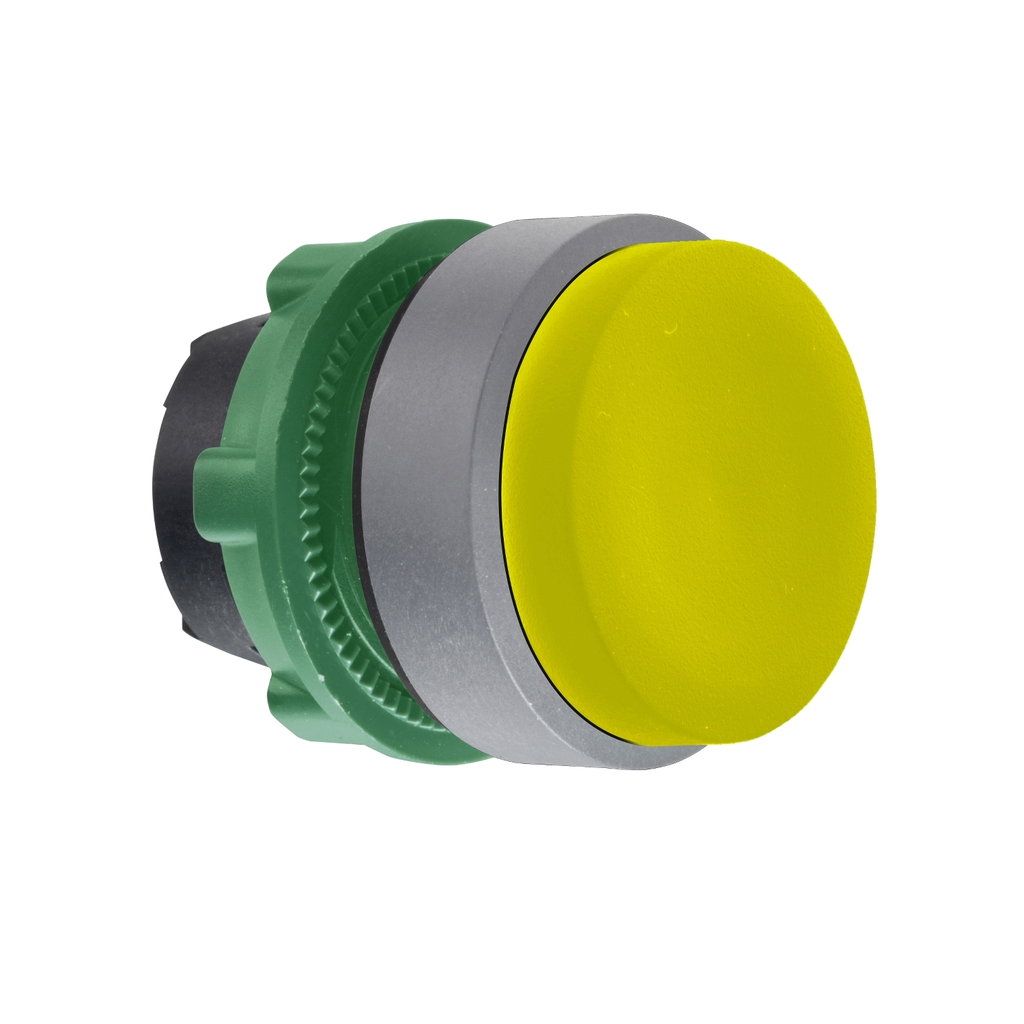

This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distan

• Overvoltage Category
• class II conforming to IEC 60536
• Electrical Composition Code
• C11 3 single front mounting
• C15 1 single front mounting
• SF1 3 single front mounting
• SF
• IP Degree Of Protection
• IP66 IEC 60529
• IP67
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• UL 508
• IEC 60947-5-1
• JIS C8201-5-1
• IEC 60947-5-4
• CSA C22.2 No 14
• IEC 60947-1
• JIS C8201-1
• Station Name
• XALD 1...5 cut-outs
• XALK 2...5 cut-outs
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Accessories
• ZBE101
• ZBYLEG503001
• ZB5AZ009
• ZBYLEG304001
• ZBY6101C0
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Customizable
• 1
• no
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Operator Profile
• yellow projecting, unmarked
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac

• Physical Attributes
• Cad Overall Depth : 33 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-12
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308008EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic colour plated grey
• Device Short Name : ZB5
• GCR Bridge : ZB5AHCUST10
• Group Of Product : projected push-push non illum
• Head Type : standard
• Main Group : push-button
• Mounting Diameter : 22 mm
• Package Weight Lbs : 18.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Type Of Operator : push-push
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2308008EN
• General Attributes
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749683&lang=en-us
• Take Back : No
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2308008EN
• Environmental Disclosure : ENVPEP2308008EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308008EN
• Specifications
• Country of Origin : France
