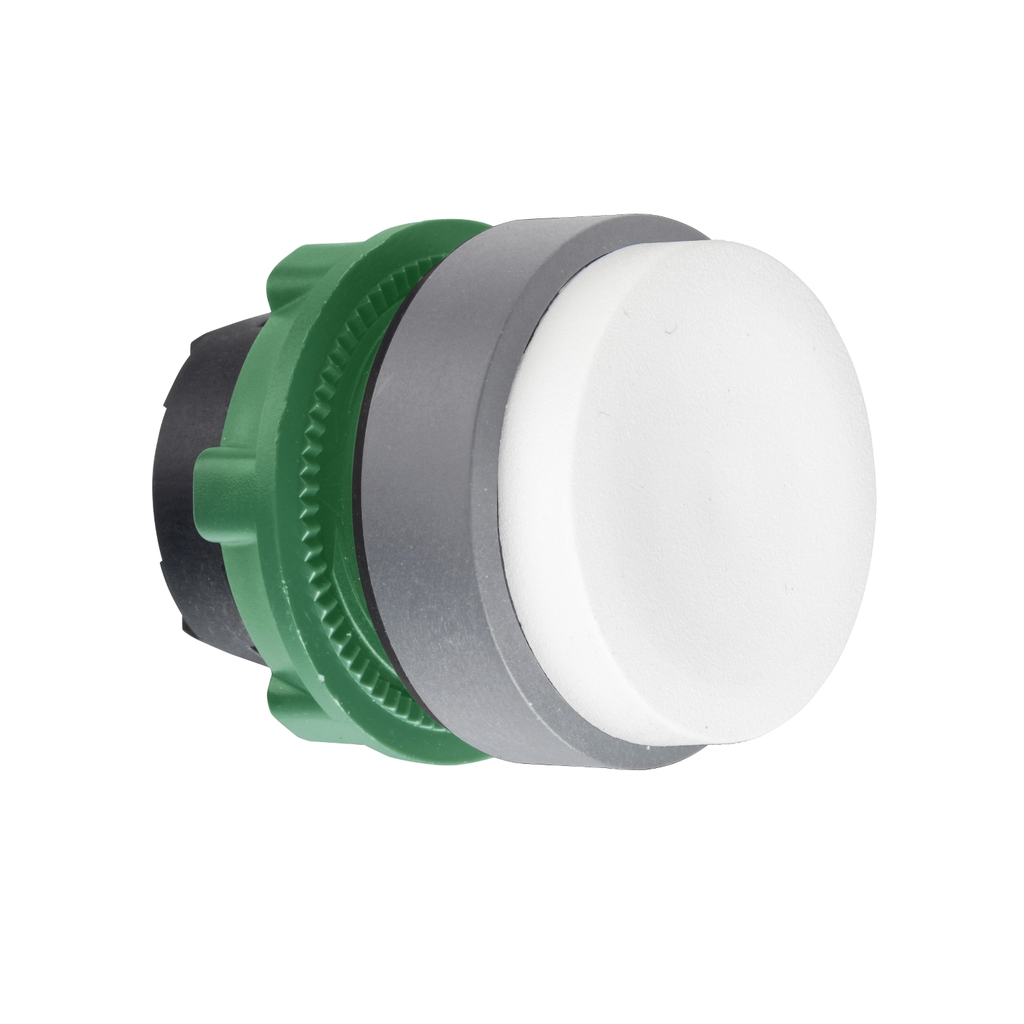

Harmony XB5, Push button head, plastic, projecting, white, 22mm, push-push, unmarked, grey bezel

HARMONY XB5, PUSH BUTTON HEAD,

SQDZB5AH1C0 ZB5AH1C0 3606489766849
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Push button head, plastic, projecting, white, 22mm, push-push, unmarked, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Country of Origin: France
  • Head Type: Standard
  • Height: 29 mm
  • Net Weight: 0.018 kg
  • Weight: 0.018 kg
  • Width: 29 mm
This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Features
  • Specifications
This button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of pushbuttons and contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Electrical Composition Code : C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C9 3 single front mounting
    • Net Weight : 0.018 kg
    • Cad Overall Height : 29 mm
    • Mechanical Durability : 2000000 cycles
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 33 mm
  • Environment
    • Product Certifications : DNV || CSA || BV || LROS (Lloyds register of shipping) || UL Listed
    • Ik Degree Of Protection : IK03 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : UL 508 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II conforming to IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Specifications
    • Country of Origin : France
    • Width : 29 mm
    • Height : 29 mm
    • Weight : 0.018 kg
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 22 mm
    • Type Of Operator : push-push
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic colour plated grey
    • Operator Profile : white projecting, unmarked
    • Device Short Name : ZB5
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
    • Sustainable Packaging : No
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
