SQUARE D

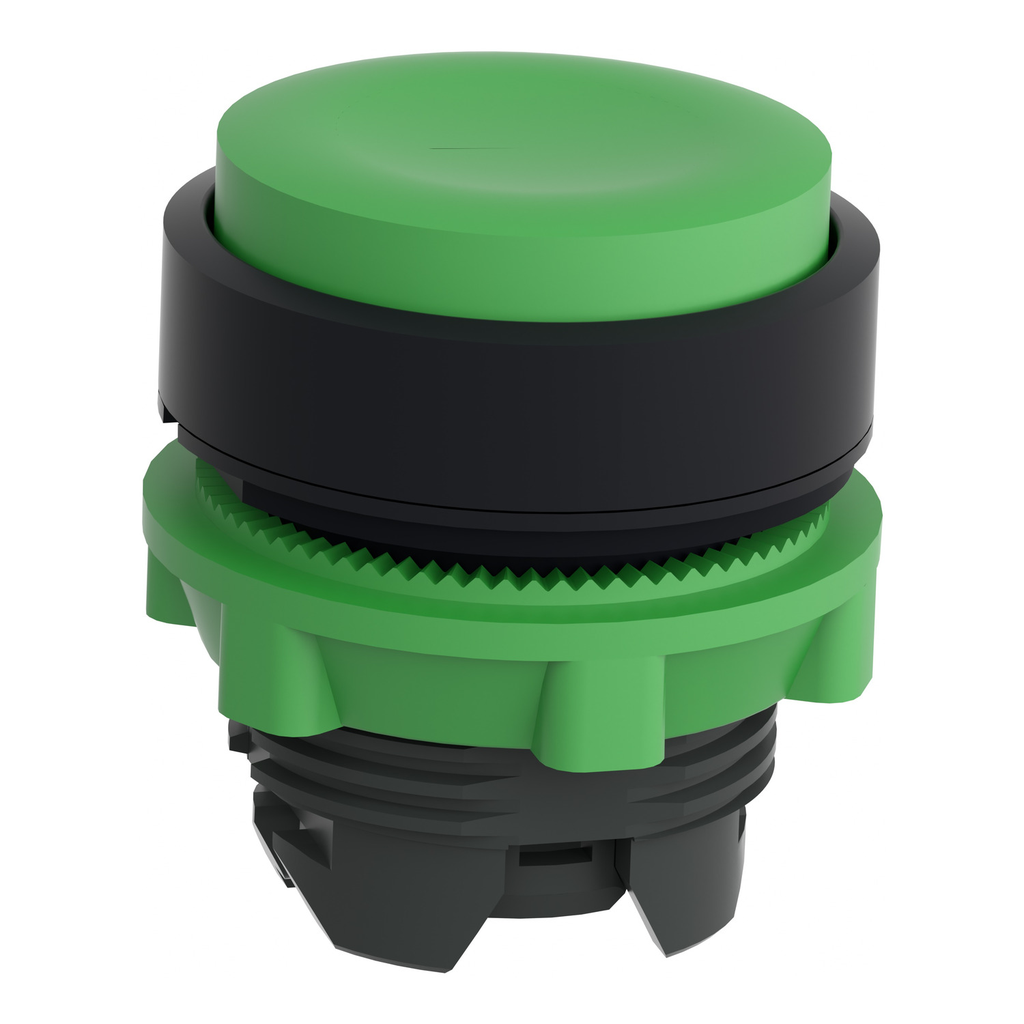

Head for non illuminated push button, Harmony XB5, plastic, projecting, green, 22mm, spring return, unmarked

HARMONY XB5, PUSH BUTTON HEAD,

SQDZB5AL3 3389110906431
11.38 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for non illuminated push button, Harmony XB5, plastic, projecting, green, 22mm, spring return, unmarked-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.019 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This green projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This green projecting button head provides an ergonomic interface for controlling your machines. It is easily combined with Harmony range of push buttons and contact blocks. Thus it is possible to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Standards : JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
    • Product Certifications : CSA || LROS (Lloyds register of shipping) || BV || UL Listed || GL || DNV
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Operation : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK03 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1710010EN
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Net Weight : 0.019 kg
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Device Presentation : basic element
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 33 mm
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
  • Specifications
    • Type Of Operator : spring return
    • Product Or Component Type : head for non-illuminated push-button
    • Operator Profile : green projecting, unmarked
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 22 mm
    • Shape Of Signaling Unit Head : round
    • Head Type : standard
    • Bezel Material : dark grey plastic
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
