SQUARE D

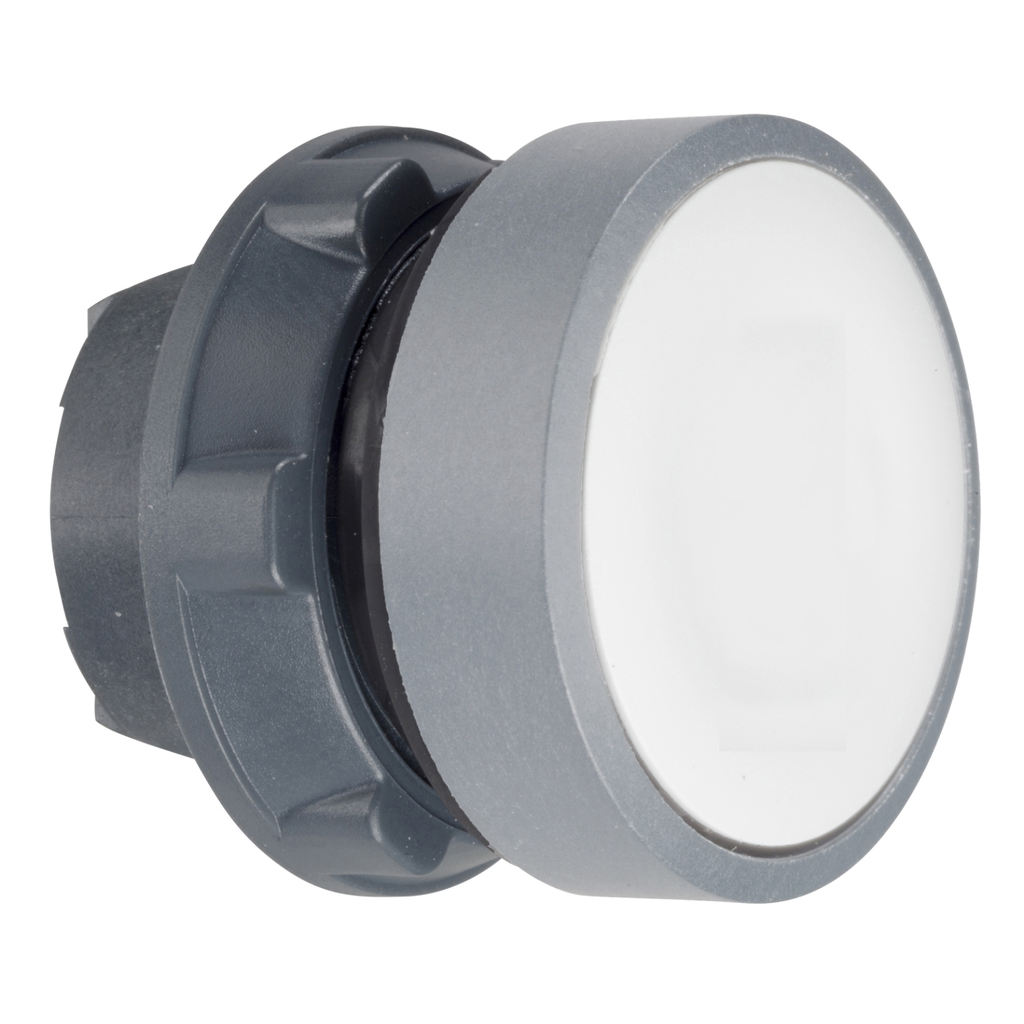

Harmony XB5, Push button head, plastic, flush, white, Ø22, spring return, marked I, grey bezel

HARMONY XB5, PUSH BUTTON HEAD,

SQDZB5AA131C0 3606489761707
10.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Push button head, plastic, flush, white, Ø22, spring return, marked I, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.018 kg
  • Storage Temperature: -40-70 °C
This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • China Rohs Regulation : X
  • Specifications
    • Shape Of Signaling Unit Head : round
    • Operator Profile : white flush, I black)
    • Type Of Operator : spring return
    • Mounting Diameter : 22 mm
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for non-illuminated push-button
    • Head Type : standard
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
  • Environment
    • Overvoltage Category : class II IEC 60536
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ik Degree Of Protection : IK03 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Product Certifications : BV || GL || UL Listed || LROS (Lloyds register of shipping) || DNV || CSA
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Complementary
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 28 mm
    • Cad Overall Height : 29 mm
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Net Weight : 0.018 kg
    • Mechanical Durability : 10000000 cycles
