SQUARE D

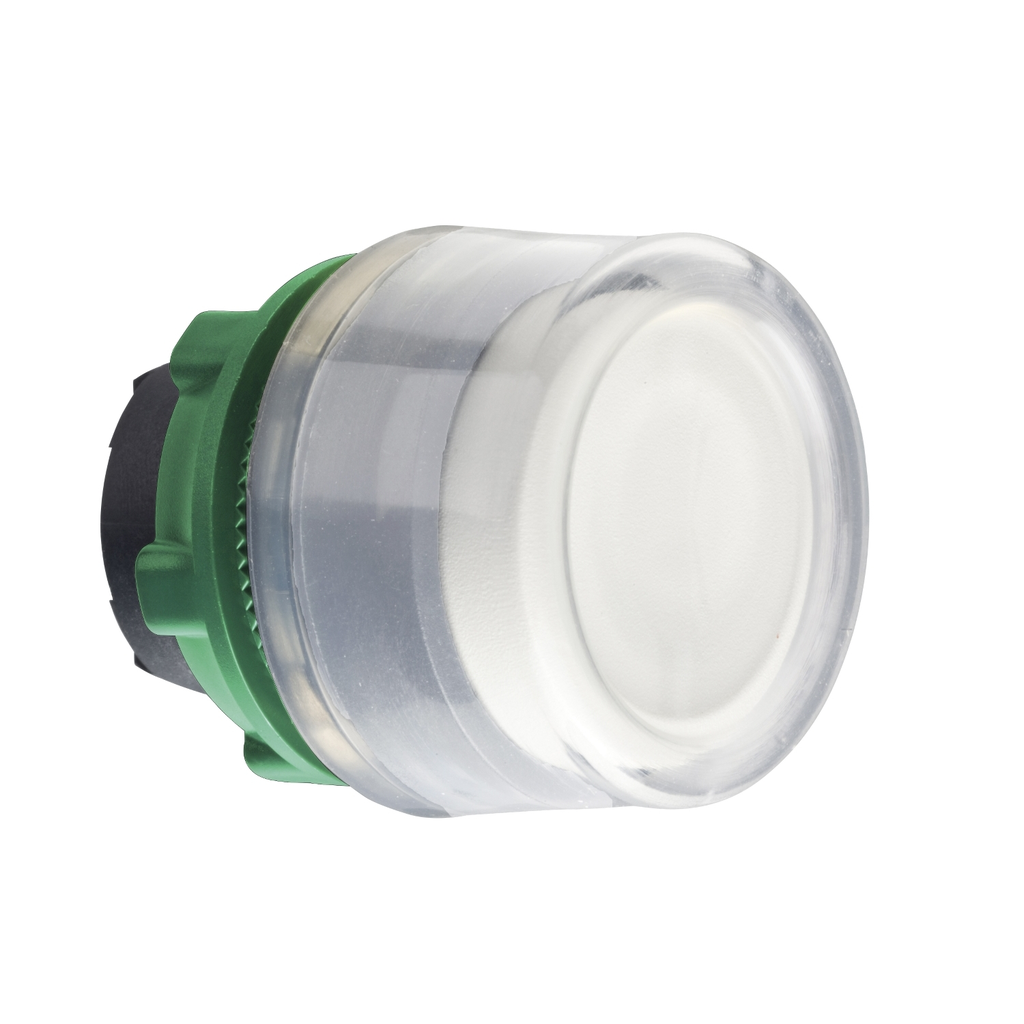

Harmony XB5, Push button head, plastic, flush, white, 22mm, spring return, clear boot, unmarked, grey bezel

HARMONY XB5, PUSH BUTTON HEAD,

SQDZB5APA1C0 ZB5APA1C0 3606489768461
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Push button head, plastic, flush, white, 22mm, spring return, clear boot, unmarked, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Head Type: Standard
This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Features
  • Specifications
This clear silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cad Overall Depth : 37 mm
    • Cad Overall Height : 30 mm
    • Cad Overall Width : 30 mm
  • Conformance Attributes
    • Product Certifications : CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
    • Standards : IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60947-1, JIS C8201-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : 1, no
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Medium Desc : Harmony XB5, Push button head, plastic, flush, white, 22mm, spring return, clear boot, unmarked, grey bezel
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2303008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5
    • Gcr Bridge : ZB5APCUST03
    • Head Type : standard
    • Mechanical Durability : 10000000 cycles
    • Mounting Diameter : 22 mm
    • Operator Additional Information : clear boot
    • Operator Profile : white flush, unmarked
    • Overvoltage Category : class II conforming to IEC 60536
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for non-illuminated push-button
    • Protective Treatment : TH
    • Range Of Product : Harmony XB5
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Pep Code : ENVPEP2303008EN
  • Environment Attributes Main
    • Ip Degree Of Protection : IP66 IEC 60529, IP67 IEC 60529
    • Nema Degree Of Protection : NEMA 13, NEMA 4X
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2303008EN
    • Environmental Disclosure : ENVPEP2303008EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : not compatible with legend holder
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2303008EN
  • General Attributes
    • Product Or Component Type : head for non-illuminated push-button
    • Range Of Product : Harmony XB5
  • ETIM
    • ETIM 8 : EC000221
    • ETIM 9 : EC000221
